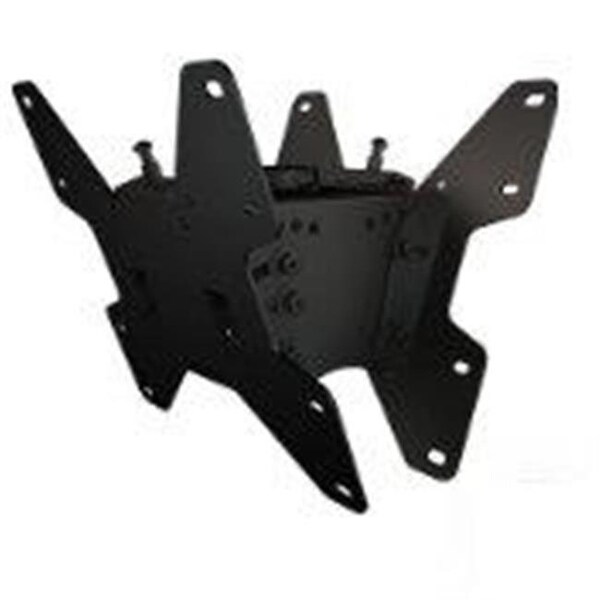

Crimson C37D Ceiling Mount Box And Vesa Flat Panel Screens Adapter Assembly For 13 In. to 37 In. Flat Panel Screens

Attaches to standard 1.5 in. threaded extension columns. Can be used as retrofit on existing columns or combine with Crimson E-series fixed extensions or EA-series adjustable extensions and CA ceiling adapters to complete the solution. Continuous tilt of 20° forward with 360° rotation. Makes a secure screen installation quick and easy, simply hang the screen and turn the pre-assembled securing screw to lock the VESA adapter in place. Compatible with all 1.5 in. NPT threaded pipe.

• VESA compatible 75 x 75 mm, 100 x 100 mm, 200 x 100 mm, 200 x 200 mm
• Fast and easy installation
• Pre-assembled securing screw
• Up to 20° of continuous tilt and 360° rotation
• Mounts to any 1.5in NPT threaded pipe

• TV size range - 13 to 37 in.
• Weight capacity - 80 lbs. (36kg) each, 160 lbs. (73kg) total
• Rotation (yaw) - 360°
• 1.5 in. NPT thread compatible - Yes
• Mounting interface - 1.5 in. NPT thread compatible
• Construction - high-grade cold rolled steel
• Product finish - scratch resistant epoxy powder coat
• Item Weight - 6.2 lbs. (2.8kg)
• Dimension - 10 L x 9.4 W x 4.7 H in.
• Color - Black
