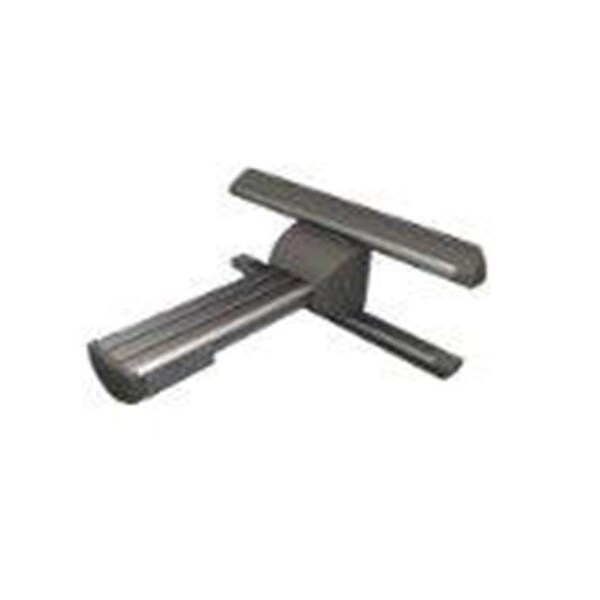

Crimson JS2-16S Short Throw Dual Stud Projector Arm

Three adjustable models position center of projector to a maximum of 16 in from the wall. Ideal for projectors weighing up to 50 lbs.. Quick and secure hook in place arm attachment with +/-5° height/pitch adjustment at the wall plate. Internal cord management for easy wiring and a clean look. Compatible with all projector mounts with 1.5 NPT threaded interface.

• Compatible with all projector mounts that use standard 1.5 in. NPT interface
• Mounts to a dual stud, on 16 in centers, concrete or other structural surface
• Three standard arm lengths, positions center of projector from 7.5 to 55 in from the wall
• + / – 5° height adjustment at the wall plate
• 10 in of lateral adjustment
• Integrated cable management for clean look

• Weight capacity - 50 lbs. (23kg)
• Extension - 16 in (406mm)
• Max lateral shift - 10 in
• Vertical adjustment - +/- 5° at wall plate
• 1.5 in. NPT thread compatible - Yes
• Mounting surface - wood stud, concrete or cinder block
• Stud spacing - dual stud 16 in on center
• Construction - aluminum/high-grade cold rolled steel
• Product finish - anodized aluminum/scratch resistant epoxy powder coat
• Item Weight - 11.5 lbs. (5.2kg)
• Dimension - 22.5 L x12.8 W x 8.5 H in.
• Color - Silver
