  11. Anchor Shackle, Carbon Steel, 13,000 lb.
Shop All Shackles
Crosby

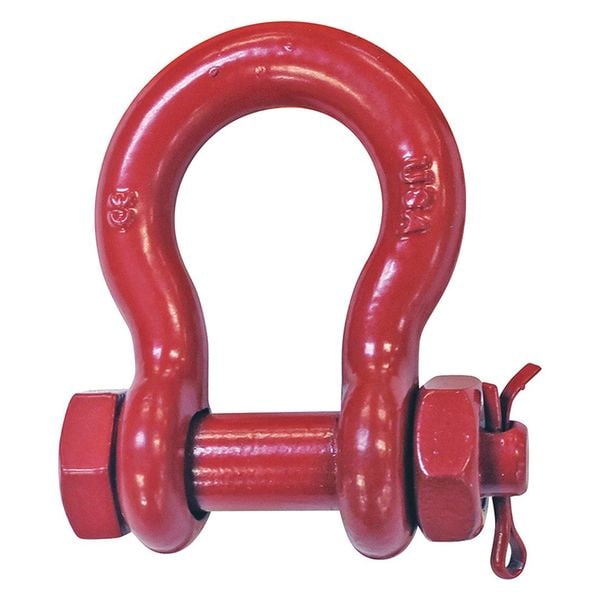

Anchor Shackle, Carbon Steel, 13,000 lb.

product price: $95.50
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pin Style Bolt, Cotter, Nut
  • Working Load Limit 13,000 lb
  • Width Between Eyes 1 1/2 in
  • Pin Dia. 1 in
  • Body Size 7/8 in
See all product information

Product Information

  • Brand Crosby
  • MFR # 1019542
  • Zoro # G6613433
  • Country of Origin United States
  • Category Shackles

Dimensions

Width Between Eyes 1 1/2 in
Pin Dia. 1 in
Body Size 7/8 in
Sling Width 2-9/32"
Outside Diameter of Eye 2 1/16 in
For Sling Width 2 9/32 in
Inside Length 3 1/4 in
Compatible Sling Width 2 1/4 in
Inside Width 2 1/4 in
Pin Diameter 1 in

Details

Item Anchor Shackle
Pin Style Bolt, Cotter, Nut
Working Load Limit 13,000 lb
Finish Painted
Standards ASME B30.26
Pin Material Carbon Steel
Body Material Carbon Steel
Shackle Type Anchor Shackle
Pin Color Red
Body Thickness 7/8 in
Lifting Capability For Lifting
Minimum Operating Temperature -40 Degrees F
Body Finish Painted
Body Color Silver
Pin Type Removable Bolt and Nut
Maximum Operating Temperature 400 Degrees F
Pin Finish Painted

Description

Anchor Shackle, Shackle Type Anchor Shackle, Lifting Capability For Lifting, Working Load Limit 13,000 lb, Compatible Sling Width 2 1/4 in, Width Between Eyes 1 1/2 in, Body Material Carbon Steel, Inside Length 3 1/4 in, Inside Width 2 1/4 in, Body Thickness 7/8 in, Body Color Silver, Body Finish Painted, Pin Type Removable Bolt and Nut, Pin Diameter 1 in, Pin Material Carbon Steel, Pin Color Red, Pin Finish Painted, Minimum Operating Temperature -40 Degrees F
