  11. D-Shackle, 3,000 lb Load Cap, Carbon Steel

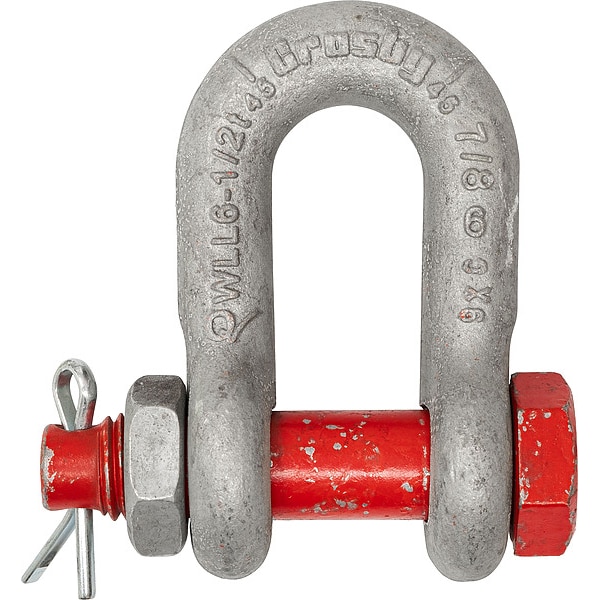

Crosby D-Shackle, 3,000 lb Load Cap, Carbon Steel 1019774 - main

D-Shackle, 3,000 lb Load Cap, Carbon Steel

  • Mfr # 1019774

  • Zoro # G110718731

product price: $37.19
/ea

Key Features

Working Load Limit
3,000 lb
Width Between Eyes
3/4 in
Standards
3.1 Test Certification, ABS 2006 Steel Vessel Rules 1-1-17.7, ASME B30.26, Certification of Cranes, DNV Certification Notes 2.7-1- Offshore Containers, DNV2.7-1, EN 13889, Federal Specification RR-C-271F Type IVA Grade A Class 3
Shackle Type
Chain Shackle
Body Material
Carbon Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1019774
Zoro #
G110718731
UPC #
662547197744
Country of Origin
United States

Dimensions

Width Between Eyes
3/4 in
Body Thickness
7/16 in
Inside Width
3/4 in
Pin Diameter
1/2 in
Inside Length
1 1/2 in

Details

Item
D-Shackle
Working Load Limit
3,000 lb
Standards
3.1 Test Certification, ABS 2006 Steel Vessel Rules 1-1-17.7, ASME B30.26, Certification of Cranes, DNV Certification Notes 2.7-1- Offshore Containers, DNV2.7-1, EN 13889, Federal Specification RR-C-271F Type IVA Grade A Class 3
Shackle Type
Chain Shackle
Body Material
Carbon Steel
Pin Material
Alloy Steel
Body Finish
Galvanized
Pin Color
Red
Pin Type
Removable Bolt and Nut
Lifting Capability
For Lifting
Minimum Operating Temperature
-40 Degrees F
Pin Finish
Galvanized
Body Color
Silver
Maximum Operating Temperature
400 Degrees F

Description

D-Shackle, Shackle Type Chain Shackle, Lifting Capability For Lifting, Working Load Limit 3,000 lb, Width Between Eyes 3/4 in, Body Material Carbon Steel, Inside Length 1 1/2 in, Inside Width 3/4 in, Body Thickness 7/16 in, Body Color Silver, Body Finish Galvanized, Pin Type Removable Bolt and Nut, Pin Diameter 1/2 in, Pin Material Alloy Steel, Pin Color Red, Pin Finish Galvanized, Minimum Operating Temperature -40 Degrees F, Maximum Operating Temperature 400 Degrees F
