Shop All Chain & Cable Hooks
Crosby

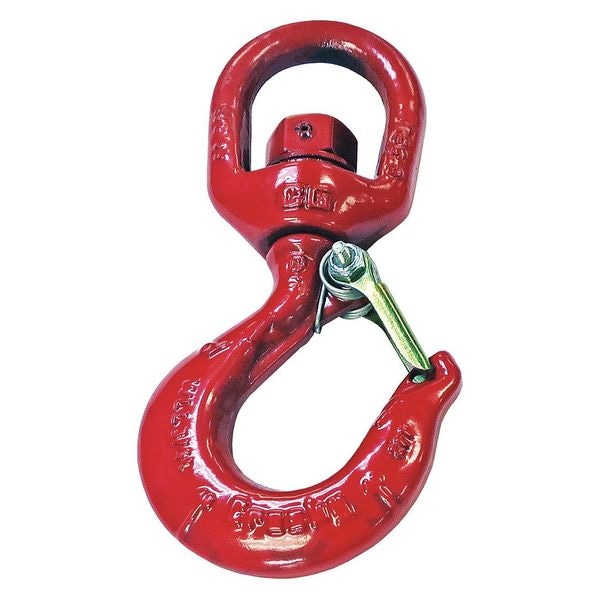

Swivel Hook, Carbon Steel, 20,000 lb., Red

product price: $820.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Material Carbon Steel
  • Grade 100
  • Hook Attachment Type Swivel Eye
  • Dimension B 12-1/4"
  • Working Load Limit 20,000 lb
See all product information

Product Information

Dimensions

Dimension B 12-1/4"
Hook Reach Length 12 1/4 in
Eye Inside Width 3 1/8 in
Eye Inside Height 2 1/2 in
Dimension d 3-1/8"
Dimension a 2-17/64"
Diameter 1 1/4 in
Overall Width 8 3/8 in
Overall Length 16 3/8 in
Usable Length 12 1/4 in
Eye Inside Diameter 3 1/8 in
Compatible Rope Diameter 7/8 in
Hook Opening Width 3 1/4 in
Compatible Chain Trade Size 3/8 in

Details

Item Slip Hook
Material Carbon Steel
Grade 100
Hook Attachment Type Swivel Eye
Working Load Limit 20,000 lb
Hook Opening 2 9/32 in
Standards ASME B30.10
Attachment Type Swivel
Finish Painted
Color Red
Includes Latch
Markings Deformation Markings, Maximum Angle Markings
Compatible Chain Grade 100
Lifting Capability For Lifting
Minimum Operating Temperature -40 Degrees F
Material Thickness 1 1/4 in
Hook Type Slip Hook
Hardware Included Latch
Maximum Operating Temperature 392 Degrees F

Description

Slip Hook, Hook Type Slip Hook, Working Load Limit 20,000 lb, Lifting Capability For Lifting, Grade 100, Material Carbon Steel, Material Thickness 1 1/4 in, Hook Opening Width 3 1/4 in, Overall Length 16 3/8 in, Usable Length 12 1/4 in, Overall Width 8 3/8 in, Eye Inside Diameter 3 1/8 in, Eye Inside Height 2 1/2 in, Shank Diameter Not Applicable, Shank Length Not Applicable, Clevis Inside Width Not Applicable, Attachment Type Swivel, Clevis Pin Diameter Not Applicable
