Shop CRYDOM

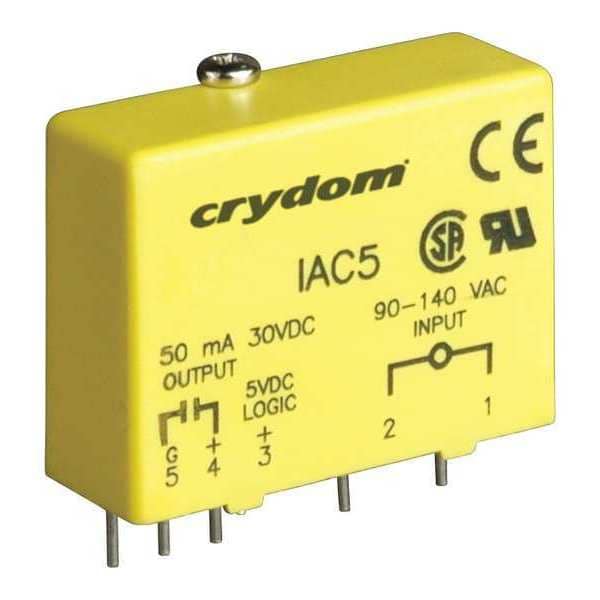

Input/Output Relay, 50mA, Plug-In, Yellow

  • Mfr # IAC5

  • Zoro # G1548513

product price:  $43.59
/ea

Key Features

Mounting - Relay
Printed Circuit Board
Output or Controlled Voltage Range
3 to 30V DC
Case Color
White (DC Input); Yellow (AC Input)
Input or Control Voltage
90 to 140V AC/DC
Input Voltage
90 to 140V AC/DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
IAC5
Zoro #
G1548513
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Height - Relay
1.49 in
Body Width - Relay
1.7 in
Body Height - Relay
1.25 in
Body Depth - Relay
0.6 in
Body Depth
0.4 in
Overall Depth
1.49 in
Body Height
1 in
Body Width
1.7 in

Details

Item
Input Module
Mounting - Relay
Printed Circuit Board
Output or Controlled Voltage Range
3 to 30V DC
Case Color
White (DC Input); Yellow (AC Input)
Input or Control Voltage
90 to 140V AC/DC
Input Voltage
90 to 140V AC/DC
Contact Form - Relay
SPST-NO
Special Features
Open Collector Output
Standards
CE Certified, CSA Certified, RoHS Compliant
Number of Pins - Relay
5
Type of Output
Solid State
Item - Relay
Input Module
Voltage Output
3 to 30VDC
Max. Output Amps - Module
50 mA
Mounting Style
Plug-In
Contact Form
SPST-NO
Features
Open-Collector Output
Weight
1.1 oz
Maximum Turn-On Time
20 msec
Minimum Operating Temperature
-22 Degrees F
Output Voltage
30V DC
Output Current
50 mA
Number of Pins
5
Isolation Voltage
4kV
Maximum Turn-Off Time
20 msec
Output Type
Digital
Maximum Operating Temperature
176 Degrees F
Input Current
6 mA
Input Resistance
28 ohm

Description

Input Module, Contact Form SPST-NO, Input Current 6 mA, Output Current 50 mA, Input Voltage 90 to 140V AC/DC, Output Voltage 30V DC, Number of Pins 5, Mounting Style Plug-In, Body Depth 0.4 in, Body Height 1 in, Body Width 1.7 in, Case Color White (DC Input); Yellow (AC Input), Features Open-Collector Output, Input Resistance 28 ohm, Isolation Voltage 4kV, Maximum Operating Temperature 176 Degrees F, Maximum Turn-Off Time 20 msec, Maximum Turn-On Time 20 msec
