Shop CULLIGAN

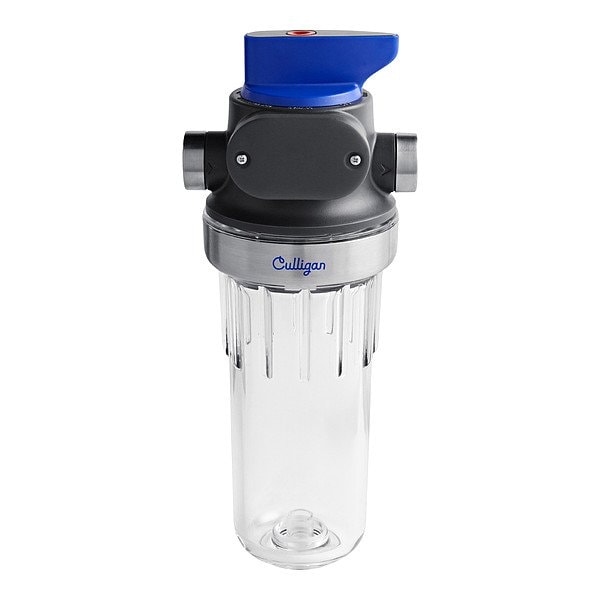

WaterFiltrationSystem, 5micron, 151/2inH

  • Mfr # WH-S200-C
  • Zoro # G7781658
product price:
$
58.69
/ea

Key Features

Height (In.)
15 1/2 in
Width (In.)
6 1/2 in
Max. Pressure (PSI)
125 psi
Housing Material
Styrene Acrylonitrile
Head Material
Polypropylene
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
WH-S200-C
Zoro #
G7781658
UPC #
033663007291
Country of Origin
Taiwan, Province of China
Max. Pressure (PSI)
125 psi
Housing Material
Styrene Acrylonitrile
Head Material
Polypropylene
Inputs/Outputs
3/4 in NPT
Max. Flow GPM
4
Standards
NSF 372, NSF 61
Microns
5
Color
Clear
Service Life (Gallons)
8,000
Type
Filter Housing
Compliance
WQA
Cartridges Required
1
Max. Temp. (F)
100 Degrees F
Flow Rate (GPM)
4
Item
Water Filtration System
For Use With
CW-F, CW-MF, Mfr. No. P5, P1, S1A, SCWH-6
Reduces
Coarse Sand, Dirt, Rust, Scale, Sediment, Silt
Includes
Cartridge, Clear Sump, Filter Life Monitor with Pre-Installed Timer Battery, Housing Wrench, Mounting Bracket and Screws, Standard 3/4 in Inlet Outlet Valve in Head Cap
Application
Household Appliances
Flow Rate
4 gpm
Maximum Temperature
100 Degrees F
Connection Type
NPT
Maximum Pressure
125 psi
Minimum Pressure
30 psi
Micron Rating
5 micron
Service Life
8,000 gal
Minimum Temperature
40 Degrees F
Compatible Mfr. Model Number
CW-F, CW-MF, P1, P5, S1A, SCWH-6
Number of Cartridges Required
1
Compatible Filter Manufacturer Part Number
CW-F, CW-MF, P1, P5, S1A, SCWH-5
Filter Media
Polypropylene
Service Life - Months
2 mo
Includes Valve
Valve Included
Number of Filters Included
1

Description

Water Filtration System, Reduces Coarse Sand, Dirt, Rust, Scale, Sediment, Silt, Micron Rating 5 micron, Connection Size 3/4 in, Overall Height 15 1/2 in, Width 6 1/2 in, Service Life 8,000 gal, Includes Valve Valve Included, Flow Rate 4 gpm, Application Household Appliances, Color Clear, Compatible Mfr. Model Number CW-F, CW-MF, P1, P5, S1A, SCWH-6, Compatible with Grainger Part Number 29AH42, 29AH43, 29AH44, 29AH45, 29AH46, Connection Type NPT, Depth 5 3/8 in, Filter Media Polypropylene
