  6. Band Saw, 9" x 12" Rectangle, 9" Round, 9 in Square, 110V AC, 120V AC V, 1 hp HP

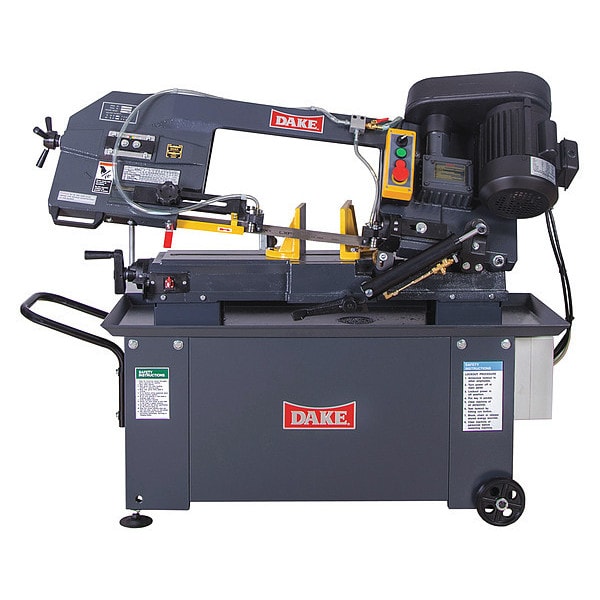

Dake Band Saw, 9" x 12" Rectangle, 9" Round, 9 in Square, 110V AC, 120V AC V, 1 hp HP 983101 - main

Band Saw, 9" x 12" Rectangle, 9" Round, 9 in Square, 110V AC, 120V AC V, 1 hp HP

  • Mfr # 983101

  • Zoro # G7476393

product price:  $3,840.99
/ea
Item requires special delivery charges. A $130.00 per item surcharge will be applied.

Key Features

Cutting Capacity Rectangle
9" x 12"
Cutting Capacity Round
9"
Cutting Capacity Square
9 in
Voltage
110V AC, 120V AC
HP
1 hp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
983101
Zoro #
G7476393
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Max. Thickness of Cut
9"
Max. Blade Length
104 1/2 in
Min. Blade Width
3/4 in
Max. Blade Width
1 in
Overall Height
41 in
Overall Depth
56 in
Min. Blade Length
104 1/2 in
Overall Width
21 in
Blade Thickness
0.035 in
Table Dimensions
24 1/2 in x 9 in
Blade Wheels Dia.
12 in
Blade Length
104 1/2 in

Details

Item
Band Saw
Cutting Capacity Rectangle
9" x 12"
Cutting Capacity Round
9"
Cutting Capacity Square
9 in
Voltage
110V AC, 120V AC
HP
1 hp
Speeds
98 to 328 fpm
Miter Capacity
45 Degrees
Includes
Recirculating Coolant System, Low Voltage Controls With Thermo Overload, Sturdy Steel Base With Wheels
Amps AC
16.0 A
Features
Vibration Free Cast Machined Table Bed; Heavy Steel Base; Horizontally Mounted Guide Arms; Adjustable Blade Guides And Rollers
RPM
1720
Phase
1
Cutting Angle
90 to 45
Corded/Banded
Corded
Hz
60 Hz
Corded/Cordless
Corded
Band Saw Operation
Semi-Automatic
Miter Angle Range
45 Degrees Right
Round Cutting Capacity - Horizontal
9 in
Number of Speed Settings
4
Rectangular Cutting Capacity - Horizontal
9 in x 12 in
SFPM Range
98 to 328 SFPM
Band Saw Type
Horizontal
Current
16.0 A
Power Source
Corded
Variable Speed
No

Description

Band Saw, Band Saw Type Horizontal, Band Saw Operation Semi-Automatic, Voltage 110V AC, 120V AC, Phase 1, Rectangular Cutting Capacity - Horizontal 9 in x 12 in, Round Cutting Capacity - Horizontal 9 in, SFPM Range 98 to 328 SFPM, Miter Angle Range 45 Degrees Right, Number of Speed Settings 4, Blade Length 104 1/2 in, Max. Blade Width 1 in, Min. Blade Width 3/4 in, Cutting Capacity Square 9 in, Power Source Corded, Blade Thickness 0.035 in, Blade Wheels Dia. 12 in, Amps AC 16.0 A, Hz 60 Hz
