DC Speed Control, 90/180VDC, 2A, NEMA 1/4

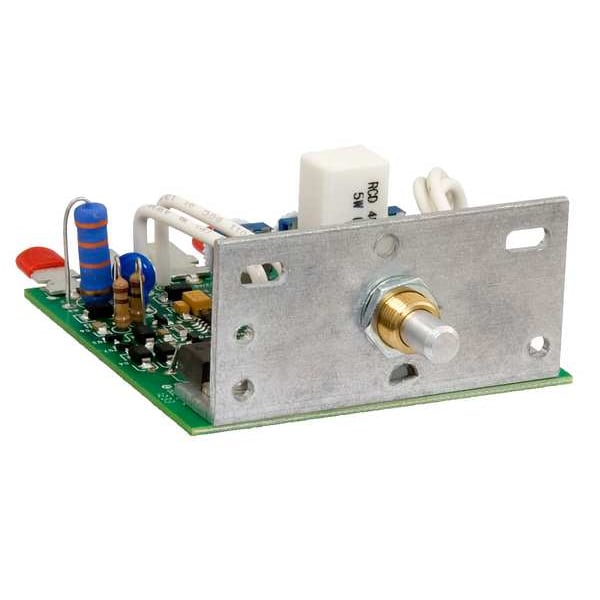

Dart Controls DC Speed Control,  90/180VDC,  2A,  NEMA 1/4 15DV1A
Hover or click to zoom Tap to zoom
$103.20
  • Item: DC Speed Control
  • Enclosure: Chassis
  • Max. Amps: 2 A
See full product details
This item ships free.

Total: $103.20

Dart Controls #15DV1A Specifications

  • Item: DC Speed Control
  • Enclosure: Chassis
  • Max. Amps: 2 A
  • Voltage Output: 90/180V DC
  • Speed Range: 25:1
  • Rotation: Single Direction
  • External Switches: None
  • AC Input Voltage: 120/240V AC
  • DC Speed Control: SCR
  • Speed Regulation: +/-1% of Base Speed
  • Width: 2.8 in
  • HP @ Higher Volts: 1/25 to 1/3
  • Height: 1.3 in
  • Current/Torque Limit: None
  • For Use With: Material Handling, Laboratory, Food Processing, Pump, Fan/Blower, Conveyor, Machine Tool, DC Motor and Spooling Applications
  • Follower Circuit: No
  • Mount Type: Chassis
  • Depth: 3.3 in
  • Operating Temp.: -10 Degrees to 45 Degrees C
  • Shunt Wound Volts: 100/200V DC
  • Accepts Tach Feedback: No
  • Includes: Speed Potentiometer Knob and Dial Plate
  • IR Compensation: Adjustable
  • Standards: cULus Recognized, RoHS
  • HP @ Lower Volts: 1/50 to 1/6
  • Dynamic Braking: No
  • Linear Acceleration: Fixed 0.5 sec
  • Series: Series 15
  • Maximum Current: 2 A
  • Overall Depth: 1.3 in
  • Operating Temperature: -10 Degrees to 45 Degrees C
  • Maximum Linear Acceleration: 0.5 sec
  • Overall Width: 2.8 in
  • Lower Voltage Motor Output Power: 90 V DC
  • Higher Voltage Motor Output Power: 180 V DC
  • Shunt Wound Voltage: 100/200V DC
  • Overall Height: 3.3 in
  • Form Factor: L
  • Enclosure Type: Open
  • Country of Origin (subject to change): United States

Description

DC Speed Control, Enclosure Chassis, Max. Amps 2 A, Voltage Output 0 to 90/180V DC, Speed Range 25:1, Rotation Single Direction, External Switches None, AC Input Voltage 120/240V AC, DC Speed Control SCR, HP @ Lower Volts 1/50 to 1/6, HP @ Higher Volts 1/25 to 1/3, Linear Acceleration Fixed 0.5 sec, Current/Torque Limit None, Speed Regulation +/-1 Percent of Base Speed, Shunt Wound Volts 100/200V DC, Accepts Tach Feedback No, Dynamic Braking No, IR Compensation Adjustable, Follower Circuit No
