Shop DART CONTROLS

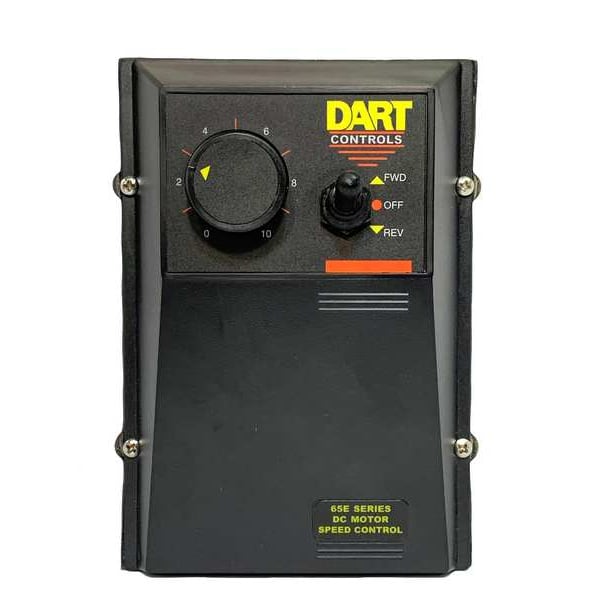

Low Voltage Drive, Battery Cntrl, 15A, 720W

  • Mfr # 65E15E-29

  • Zoro # G7979645

product price:
$
712.99
/ea
Free Shipping & Returns

Key Features

Enclosure
NEMA 4X/12
Max. Amps
15 A
Voltage Output
12 to 24V DC
Speed Range
30:1
Rotation
Reversible
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
65E15E-29
Zoro #
G7979645
UPC #
-
Country of Origin
United States

Dimensions

Width
5.53 in
Depth
4.78 in
Height
7.37 in
Overall Height
7.3 in
Overall Depth
4.78 in
Overall Width
5.53 in

Details

Item
DC Speed Control
Enclosure
NEMA 4X/12
Max. Amps
15 A
Voltage Output
12 to 24V DC
Speed Range
30:1
Rotation
Reversible
External Switches
FWD/OFF/REV
DC Input Voltage
12-24V DC
DC Speed Control
PWM
Mount Type
Surface
Power On Light
No
Speed Regulation
+/-1% of Base Speed
IR Compensation
Adjustable
HP @ Higher Volts
1/8 to 3/4 hp
Standards
RoHS
HP @ Lower Volts
1/50 to 1/16 hp
Linear Acceleration
Adjustable 0 to 10 sec
Follower Circuit
No
Operating Temp.
-15 Degrees to 60 Degrees C
Current/Torque Limit
Adjustable
Linear Deceleration
Fixed 0.5 sec
For Use With
12/48V DC DCPM Motors
Lower Voltage Motor Output Power
1/50 to 1/6 hp
Minimum Linear Acceleration
0 sec
Maximum Linear Deceleration
0.5 sec
Maximum Current
15 A
Enclosure Type
Enclosed
Maximum Linear Acceleration
10 sec
Series
Series 65
Higher Voltage Motor Output Power
1/8 to 3/4 hp
NEMA Rating
NEMA 4
Enclosure Rating
NEMA 4X
Operating Temperature
-10 Degrees to 45 Degrees C
Product Type
DC Speed Control
Torque Limit
Adjustable
Linear Deceleration - Maximum
0.5 sec
High Voltage Output Power - Minimum
1/8 hp
Low Voltage Output Power - Maximum
1/6 hp
Speed Ratio
30:1
IP Rating
IP66
Output Type
Solid State
Output Voltage
12-24V DC
DC Output Current
15 A
Linear Acceleration - Maximum
10 sec
Low Voltage Output Power - Minimum
1/50 hp
Linear Acceleration - Minimum
0 sec
High Voltage Output Power - Maximum
3/4 hp

Description

DC Speed Control, DC Speed Control PWM, NEMA 4X, Lower Voltage Motor Output Power 1/50 to 1/6 hp, DC Input Voltage 12-24V DC, Voltage Output 12 to 24V DC, Speed Range 30:1, Rotation Reversible, External Switches FWD/OFF/REV
