Shop DAYTON

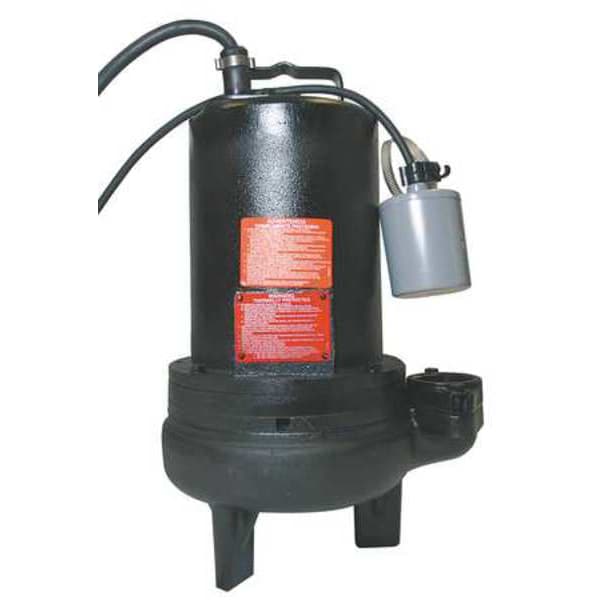

1-1/2 HP 2" Auto Submersible Sewage Pump 230V Tether

  • Mfr # 4HU86
  • Zoro # G2301564
product price:
$
2,045.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

HP
1-1/2
Phase - Pumps
1
Switch Actuation
Tether Float
Body Material
Cast Iron
Base Material
303 Stainless Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4HU86
Zoro #
G2301564
UPC #
190735325575
Country of Origin
China

Dimensions

Max. Diameter Solids
2 in
Height
19-1/16"
Max. Dia. Solids
2"
Cord Length - Pumps
20 ft.
Diameter
12-5/8"
Cord Length
20 ft
Body Dia.
12 5/8 in
Overall Height
19 1/8 in
Discharge Dia.
2 in
Discharge Diameter
2 in
Solids Diameter - Maximum
2 in
Body Diameter
12 5/8 in

Details

HP
1-1/2
Phase - Pumps
1
Switch Actuation
Tether Float
Body Material
Cast Iron
Base Material
303 Stainless Steel
Max. Head
66 ft
Impeller Material
Cast Iron
Voltage - Pumps
240V AC
Discharge NPT
2"
GPM of Water @ 30 Ft. of Head
125
Switch Type - Pumps
Tether
Thermal Protection
Yes
Item
Sewage Ejector Pump
Switch Type
Tether
Item - Sewage Pumps
Submersible Sewage Pump
GPM of Water @ 60 Ft. of Head
36
Shaft Seal
Silicon Carbide
Amps - Pumps
13.50
Max. Head - Pumps
66 ft.
GPM of Water @ 25 Ft. of Head
135
Agency Compliance
CSA
Impeller Material - Pumps
Cast Iron
Pump Body Material
Cast Iron
Pump Type
Automatic
Amps
13.50 A
GPM of Water @ 40 Ft. of Head
95
Motor RPM
3450
Bearing Type
Dual Ball
GPM of Water @ 20 Ft. of Head
145
Phase
Single
Max. Liquid Temp.
140 Degrees F
GPM of Water @ 50 Ft. of Head
70
Voltage
230V
Housing Material
Cast iron
Motor Type
Hermetically Sealed/Oil Filled
Shaft Seal Material - Pumps
Carbon Ceramic
Input Phase AC
1
RPM
3,450 RPM
Rated Voltage
240V AC
Switch Electrical Connection
Piggyback
Flow Rate @ 20 Ft. of Head
145 gpm
Flow Rate @ 40 Ft. of Head
95 gpm
Flow Rate @ 60 Ft. of Head
36 gpm
Discharge Standard
NPT
Discharge
2 in NPT
Standards
CSA
Type
Automatic
Current
13.50 A
Feet of Head - Maximum
66 ft
Shaft Seal Material
Carbon/Ceramic
Flow Rate @ 10 ft of Head
175 gpm
Liquid Temperature - Maximum
140 Degrees F
Horsepower
1 1/2 hp
Rotation Speed - Maximum
3,450 RPM

Description

Sewage Ejector Pump, HP 1-1/2, Rated Voltage 240V AC, Phase - Pumps 1, Amps 13.50 A, Motor Type Hermetically Sealed/Oil Filled, Body Material Cast Iron, Impeller Material Cast Iron, Shaft Seal Material - Pumps Carbon Ceramic, Switch Actuation Tether Float, Switch Electrical Connection Piggyback, On Point Not Applicable, Off Point Not Applicable, Flow Rate @ 20 Ft. of Head 145 gpm, Flow Rate @ 40 Ft. of Head 95 gpm, Flow Rate @ 60 Ft. of Head 36 gpm, Max. Diameter Solids 2 in, Body Dia. 12 5/8 in

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
