  9. 1/2 HP 1-1/4" M Submersible Sump Pump 115V AC Vertical

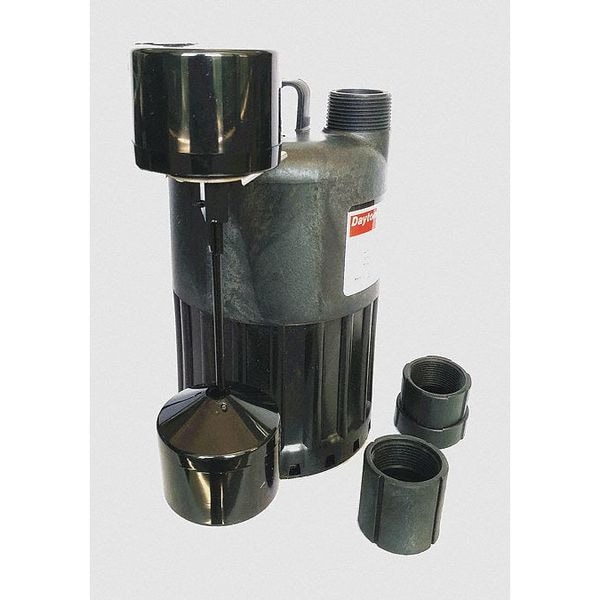

Dayton 1/2 HP 1-1/4" M Submersible Sump Pump 115V AC Vertical 3YU71 - main

1/2 HP 1-1/4" M Submersible Sump Pump 115V AC Vertical

  • Mfr # 3YU71

  • Zoro # G2471104

product price: $223.99
/ea
Free Shipping & Returns

Key Features

Cord Length
10 ft
Discharge NPT
1-1/4" M
Housing Material
Polypropylene
HP
1/2
Hz
60 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3YU71
Zoro #
G2471104
UPC #
190735296554
Country of Origin
China

Dimensions

Cord Length
10 ft
Max. Dia. Solids
1/8"
Diameter
8-3/4"
Min. Sump Pit Dia.
10 in
Cord Length - Pumps
10 ft.
Max. Diameter Solids
1/8 in
Height
10-3/4"
Discharge Dia.
1 1/4 in
Overall Height
10 3/4 in
Body Dia.
8 3/4 in
Sump Pit Diameter - Minimum
10 in
Discharge Diameter
1 1/4 in
Solids Diameter - Maximum
1/8 in
Body Diameter
8 3/4 in

Details

Discharge NPT
1-1/4" M
Housing Material
Polypropylene
HP
1/2
Hz
60 Hz
Impeller Material
Polyamide
Max. Head
25 ft
Max. Temp.
104 Degrees F
Motor RPM
3450
Motor Type
PSC
Shaft Seal
Carbon/Ceramic/Buna-N
Voltage
115V AC
Phase
Single
Gauge/Conductor
18/3
Alarm Included
No
Max. Head - Pumps
25 ft.
Alarm
No
Switch Type
Vertical
Max. Liquid Temp.
104 Degrees F
Amps - Pumps
3.30
NEC Cord Designation
SJTW
On Point
8 in
Shaft Seal Material - Pumps
Carbon, Ceramic
Base Material
Polypropylene
Mechanical Seal
Buna N
Voltage - Pumps
115VAC
Amps
3.3 A
Impeller Material - Pumps
Polyamide
Duty
Intermittent
GPM of Water @ 5 Ft. of Head
41
GPM of Water @ 20 Ft. of Head
12
Off Point
3 1/2 in
Switch Type - Pumps
Vertical
GPM of Water @ 15 Ft. of Head
22
Bearing Type
Lubricated Ball
Item - Sump Pumps
Submersible Sump Pump
GPM of Water @ 10 Ft. of Head
31
Item
Submersible Sump Pump
Pump Body Material
Polypropylene
Discharge Standard
NPT
Switch Actuation
Vertical Float
Flow Rate @ 15 Ft. of Head
22 gpm
Switch Electrical Connection
Piggyback
Discharge Gender
Male
Flow Rate @ 20 Ft. of Head
12 gpm
Flow Rate @ 5 Ft. of Head
41 gpm
Rated Voltage
115V AC
Body Material
Polypropylene
Flow Rate @ 10 Ft. of Head
31 gpm
Discharge
1 1/4 in MNPT
Duty Cycle
Intermittent
For Media Type
Clear Water, Trash Water
Current
3.3 A
Shaft Seal Type
Single Mechanical
Includes Alarm
No Alarm Included
Flow Rate @ 10 ft of Head
31.7 gpm
Power Source
Corded Electric
Liquid Temperature - Maximum
104 Degrees F
Volute Material
Cast Iron
Shaft Seal Material
Carbon/Ceramic
Feet of Head - Maximum
25 ft
Hazardous Location Class
Not Rated
Frequency
60 Hz
Horsepower
1/2 hp
Motor Housing Material
Cast Iron
Impeller Design
Vortex

Description

Submersible Sump Pump, HP 1/2, Rated Voltage 115V AC, Hz 60 Hz, Amps 3.3 A, Switch Actuation Vertical Float, Switch Electrical Connection Piggyback, Off Point 3 1/2 in, On Point 8 in, Body Material Polypropylene, Impeller Material Polyamide, Shaft Seal Material - Pumps Carbon, Ceramic, Flow Rate @ 5 Ft. of Head 41 gpm, Flow Rate @ 10 Ft. of Head 31 gpm, Flow Rate @ 15 Ft. of Head 22 gpm, Flow Rate @ 20 Ft. of Head 12 gpm, Max. Head 25 ft, Min. Sump Pit Dia. 10 in, Body Dia. 8 3/4 in
