Shop DAYTON

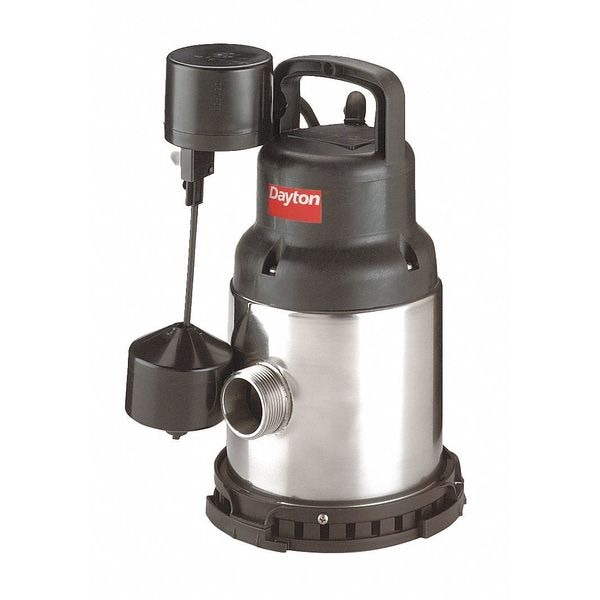

1/2 HP 1-1/4" M Submersible Sump Pump 120V AC Vertical

  • Mfr # 3YU73

  • Zoro # G0251727

product price:
$
331.99
/ea
Free Shipping & Returns

Key Features

Cord Length
10 ft
Discharge NPT
1-1/4" M
Housing Material
Stainless steel
HP
1/2
Hz
60 Hz
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3YU73
Zoro #
G0251727
UPC #
190735296578
Country of Origin
China

Dimensions

Cord Length
10 ft
Cord Length - Pumps
10 ft.
Max. Diameter Solids
1/4 in
Max. Dia. Solids
1/4"
Height
12-7/8"
Diameter
9"
Min. Sump Pit Dia.
12 in
Discharge Dia.
1 1/4 in
Overall Height
12 7/8 in
Body Dia.
9 in
Discharge Diameter
1 1/4 in
Sump Pit Diameter - Minimum
12 in
Solids Diameter - Maximum
1/4 in
Body Diameter
9 in

Details

Discharge NPT
1-1/4" M
Housing Material
Stainless steel
HP
1/2
Hz
60 Hz
Impeller Material
Polyamide
Includes
90 Degrees 1 1/4" NPT Discharge Elbow
Max. Head
25 ft
Max. Temp.
104 Degrees F
Motor RPM
3450
Motor Type
PSC
Shaft Seal
Buna N
Voltage
120V AC
Phase
Single
On Point
6 13/64 in
Gauge/Conductor
18/3
Base Material
Polypropylene
Duty
Continuous
Max. Liquid Temp.
104 Degrees F
Pump Body Material
Stainless Steel
Switch Type - Pumps
Vertical
NEC Cord Designation
SJTW
Alarm Included
No
Max. Head - Pumps
25 ft.
GPM of Water @ 10 Ft. of Head
35
Item - Sump Pumps
Submersible Sump Pump
Amps
2.9 A
Switch Type
Vertical
Voltage - Pumps
120VAC
GPM of Water @ 15 Ft. of Head
25
Amps - Pumps
2.90
GPM of Water @ 5 Ft. of Head
42
Bearing Type
Lubricated Ball
GPM of Water @ 20 Ft. of Head
12
Alarm
No
Mechanical Seal
Buna N
Impeller Material - Pumps
Polyamide
Item
Submersible Sump Pump
Off Point
2 9/16 in
Shaft Seal Material - Pumps
Buna-N
Flow Rate @ 10 Ft. of Head
35 gpm
Duty Cycle
Continuous
Flow Rate @ 5 Ft. of Head
42 gpm
Rated Voltage
115V AC
Discharge
1 1/4 in MNPT
Flow Rate @ 15 Ft. of Head
25 gpm
Flow Rate @ 20 Ft. of Head
12 gpm
Discharge Standard
NPT
Switch Actuation
Vertical Float
Discharge Gender
Male
Switch Electrical Connection
Piggyback
Body Material
Stainless Steel
Motor Housing Material
Stainless Steel
Impeller Design
Vortex
Current
2.9 A
Horsepower
1/2 hp
Flow Rate @ 10 ft of Head
35 gpm
Liquid Temperature - Maximum
104 Degrees F
For Media Type
Clear Water, Trash Water
Feet of Head - Maximum
25 ft
Hazardous Location Class
Not Rated
Includes Alarm
No Alarm Included
Shaft Seal Material
Carbon/Ceramic/Nitrile Rubber
Shaft Seal Type
Single Mechanical
Power Source
Corded Electric
Volute Material
Stainless Steel
Frequency
60 Hz
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Submersible Sump Pump, HP 1/2, Rated Voltage 115V AC, Hz 60 Hz, Amps 2.9 A, Switch Actuation Vertical Float, Switch Electrical Connection Piggyback, Off Point 2 9/16 in, On Point 6 13/64 in, Body Material Stainless Steel, Impeller Material Polyamide, Shaft Seal Material - Pumps Buna-N, Flow Rate @ 5 Ft. of Head 42 gpm, Flow Rate @ 10 Ft. of Head 35 gpm, Flow Rate @ 15 Ft. of Head 25 gpm, Flow Rate @ 20 Ft. of Head 12 gpm, Max. Head 25 ft, Min. Sump Pit Dia. 12 in, Body Dia. 9 in
