  9. 12" Tubeaxial Fan w/ Motor & Drive Pkg, 115/230VAC

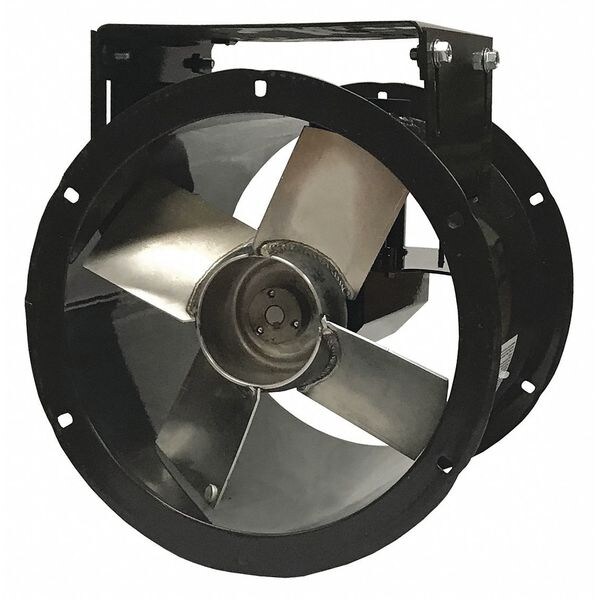

Dayton 12" Tubeaxial Fan w/ Motor & Drive Pkg, 115/230VAC 7F930 - main

12" Tubeaxial Fan w/ Motor & Drive Pkg, 115/230VAC

  • Mfr # 7F930

  • Zoro # G1508893

product price: $1,296.99
/ea
Free Shipping & Returns

Key Features

Blade Dia.
12 in
Voltage
115/230
Blade Material
Aluminum
Housing Material
Steel
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
7F930
Zoro #
G1508893
UPC #
-
Country of Origin
Multiple

Dimensions

Blade Dia.
12 in
Housing Dia. w/o Mtg. Flange
12 3/16 in
Outlet Dia.
12 1/4 in
Max. Motor Height
9 in
Dimension C
12 1/4 in
Width
14 9/16 in
Dimension D
12 in
Height
19 3/4 in
Housing Dia. w/Mtg. Flange
14 7/16 in
Dimension E
5/16 in
Shaft Dia.
5/8 in
Dimension A
14 7/16 in
Dimension B
8 3/4 in
Max. Depth
12 in
Bolt Circle Dia.
13 1/2 in
Inlet Dia.
12 1/4 in
Bolt Circle Diameter
13 1/2 in
Propeller Shaft Diameter
5/8 in
Overall Length
12 in
Overall Diameter
14 1/2 in
Body Diameter
12 1/4 in
Overall Height
19 3/4 in
Blade Diameter
12 in

Details

Voltage
115/230
Blade Material
Aluminum
Housing Material
Steel
Phase
1
Max. Inlet Temp.
200 Degrees F
Number of Speeds
1
Number of Blades
4
Item
Tubeaxial Fan
Mounting Position
Vertical/Horizontal
Hz
60 Hz
Max. Ambient Temp.
104 Degrees F
CFM @ 0.250-In. SP
2,287 cfm
Bearing Type
Ball Bearing
Replacement Fan Blade Stock No.
4C662
Fan RPM
2,877
Motor Enclosure
Totally Enclosed Fan Cooled
Full Load Amps
11.4/5.7
Max. BHP
0.6 hp
Motor HP
3/4 hp
CFM @ 0.500-In. SP
2,126 cfm
Drive Type
Belt Drive
CFM @ 0.125-In. SP
2,360 cfm
Standards
AMCA
Sones @ 0.250-In. SP @ 5 Ft.
59
CFM @ 0.000-In. SP
2,432 cfm
Motor RPM
1,725 RPM
Housing Finish
Baked Enamel
Assembled/Unassembled
Unassembled
Companion Flange Stock No.
4C716
Motor Type
Capacitor-Start
CFM @ 0.750-In. SP
1,905 cfm
Includes
Belt Guard
Features
Streamlined Belt Tunnel
Airflow @ 0.000 in SP
2,432 cfm
Resistance Properties
Rust Resistant
Noise Level
59 sones@ 0.250 in SP and 5 ft
Maximum Inlet Air Temperature
200 Degrees F
Motor Speed
1,725 RPM
Safety Features
Spark Resistant Aluminum Blade, Spark Resistant Propellers
Airflow @ 0.250 in Static Pressure
2,287 cfm
Replacement Fan Blade Part Number
4C662
Mounting Orientation
Horizontal, Vertical
For Air Type
Clean Air
Exhaust Airflow @ 0.000 in SP
2,432 cfm
Maximum Ambient Temperature
104 Degrees F
Maximum Noise Level @ 5 Feet
59 sones
Maximum Fan Speed
2,877 RPM
Exhaust Airflow @ 0.250 in SP
2,287 cfm
Assembly
Unassembled
Nameplate Voltage
115/230V AC
Motor Horsepower
3/4 hp
Includes Motor
Yes
Current
11.4/5.7 A
Brake Horsepower
3/5 hp
Includes Drive Package
Yes
Hazardous Location Specification
Not Rated
Frequency
60 Hz
Exhaust Airflow @ 0.125 in SP
2,360 cfm
Exhaust Airflow @ 0.500 in SP
2,126 cfm
Spark Resistant Construction Type
B

Description

Tubeaxial Fan, Drive Type Belt Drive, Includes Drive Package Yes, Includes Motor Yes, Blade Diameter 12 in, Nameplate Voltage 115/230V AC, Phase 1, Motor Horsepower 3/4 hp, Airflow @ 0.000 in SP 2,432 cfm, Maximum Noise Level @ 5 Feet 59 sones, Assembly Unassembled, For Air Type Clean Air, Blade Material Aluminum, Housing Material Steel, Number of Blades 4, Number of Speeds 1, Motor Enclosure Totally Enclosed Fan Cooled, Standards AMCA, Bolt Circle Diameter 13 1/2 in
