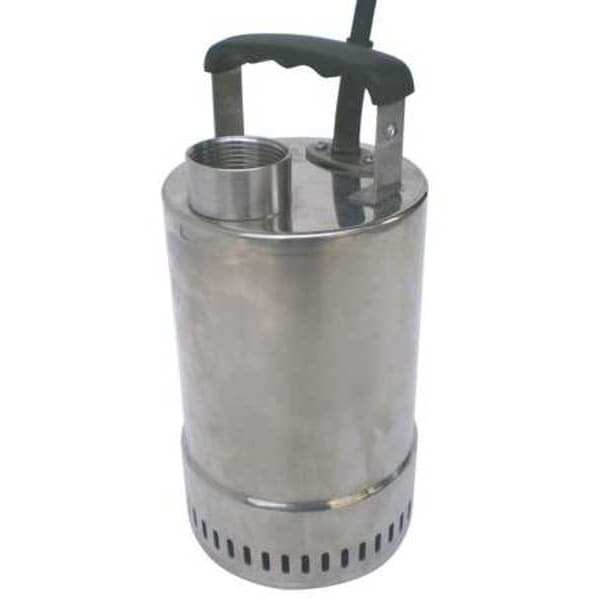

1/4 HP 1-1/4" F Plug-In Utility Pump 115 No Switch Included

  • Mfr # 11C685
  • Zoro # G4262973
product price:
$
289.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Cord Length
20 ft
Discharge NPT
1-1/4" F
Housing Material
Stainless steel
HP
1/4
Hz
60 Hz
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
11C685
Zoro #
G4262973
UPC #
190735110614
Country of Origin
China

Dimensions

Cord Length
20 ft
Length
10-5/8"
Cord Size
18/3
Diameter
5-5/8"
Cord Length - Pumps
20 ft.
Min. Sump Pit Dia.
18 in
Width
5-5/8"
Height
10-5/8"
Max. Diameter Solids
3/16 in
Discharge Dia.
1 1/4 in
Body Dia.
5 5/8 in
Width at Widest Point
5 5/8 in
Overall Height
10 5/8 in
Minimum Water Depth
12 in
Body Diameter
5 5/8 in
Sump Pit Diameter - Minimum
18 in
Operating Water Depth - Minimum
12 in
Solids Diameter - Maximum
3/16 in

Details

Discharge NPT
1-1/4" F
Housing Material
Stainless steel
HP
1/4
Hz
60 Hz
Impeller Material
Stainless Steel
Includes
1-1/4"MNPT X 1" Barb Adaptor, Hose Adaptor
Max. Head
20 ft
Motor RPM
3450
Motor Type
PSC
Shaft Seal
Ceramic, Buna N, Stainless Steel
Voltage
115V
Phase
Single
Handle
Top Carrying
Amps
3.20
Item
Plug-In Utility Pump
Insulation Class
B
GPM of Water @ 15 Ft. of Head
8
Pump Body Material
Stainless Steel
Agency Compliance
CSA US
Input Phase AC
1
GPM of Water @ 10 Ft. of Head
15
Voltage - Pumps
120V AC
Amps - Pumps
3.20
Switch Type
No Switch Included
Shaft Seal Material - Pumps
Buna-N, Ceramic, Stainless Steel
For Use With
Nonflammable Liquids
Thermal Protection
Automatic
Duty
Continuous
Bearing Type
Dual Ball
Max. Head - Pumps
20 ft.
Switch Type - Pumps
No Switch Included
Pump RPM
3450
GPM of Water @ 5 Ft. of Head
21
Impeller Material - Pumps
Stainless Steel
Item - Dewatering Pumps
Utility/Dewatering Pump
Max. Liquid Temp.
104 Degrees F
Cord Type
SJOW
Application
Nonflammable Liquids
Switch Actuation
No Switch Included
RPM
3,450 RPM
Discharge Standard
NPT
Duty Cycle
Continuous
Discharge
1 1/4 in FNPT
Flow Rate @ 10 Ft. of Head
15 gpm
Flow Rate @ 15 Ft. of Head
8 gpm
Rated Voltage
120V AC
Flow Rate @ 5 Ft. of Head
21 gpm
Body Material
Stainless Steel
Phase - Pumps
1
Discharge Gender
Female
Pump Type
Residential Dewatering
Liquid Temperature - Maximum
104 Degrees F
Horsepower
1/4 hp
Flow Rate @ 10 ft of Head
15 gpm
Current
3.20 A
Shaft Seal Material
Ceramic/Nitrile Rubber/Stainless Steel
Rotation Speed - Maximum
3,450 RPM
Includes Garden Hose Adapter
No Garden Hose Adapter Included
Flow Rate @ 5 ft of Head
21 gpm
Feet of Head - Maximum
20 ft
Frequency
60 Hz
Standards
CSA US

Description

Plug-In Utility Pump, HP 1/4, Rated Voltage 120V AC, Hz 60, Phase - Pumps 1, Amps 3.20, Switch Actuation No Switch Included, Body Material Stainless Steel, Impeller Material Stainless Steel, Shaft Seal Material - Pumps Buna-N, Ceramic, Stainless Steel, Flow Rate @ 5 Ft. of Head 21 gpm, Flow Rate @ 10 Ft. of Head 15 gpm, Flow Rate @ 15 Ft. of Head 8 gpm, Max. Head 20 ft, Min. Sump Pit Dia. 18 in, Minimum Water Depth 12 in, Body Dia. 5 5/8 in, Width at Widest Point 5 5/8 in
