  5. 16 in 19"H-W 5 1/4"L SS Backdraft Dampr, 16-1/2 in x 16-1/2 in, Stainless Steel

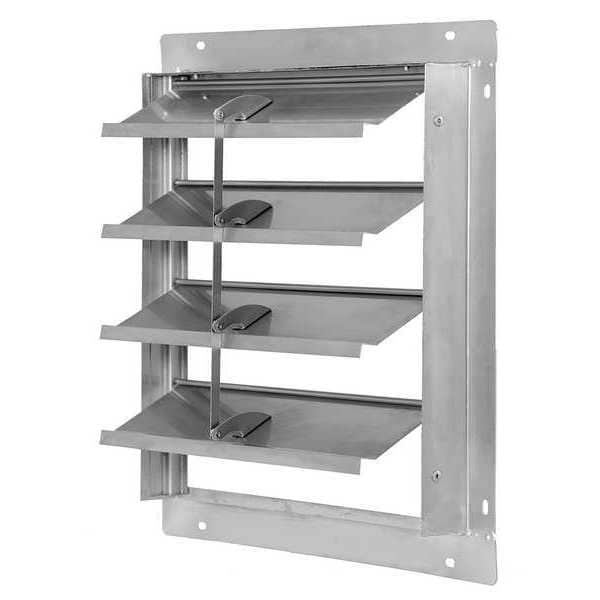

Dayton 16 in 19"H-W 5 1/4"L SS Backdraft Dampr, 16-1/2 in x 16-1/2 in, Stainless Steel 4FZJ5 - main

16 in 19"H-W 5 1/4"L SS Backdraft Dampr, 16-1/2 in x 16-1/2 in, Stainless Steel

  • Mfr # 4FZJ5

  • Zoro # G2399257

product price:  $267.99
/ea
Free Shipping & Returns

Key Features

Shutter Mounting Position
Vertical
Shutter Mounting Location
Wall
Shutter Construction Material
Stainless Steel Frame and Tie Rods
Shutter Free Area
1.436 sq ft
Shutter Opening Required
16-1/2 in x 16-1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
4FZJ5
Zoro #
G2399257
UPC #
190735324462
Country of Origin
United States

Dimensions

Shutter Overall Size
19 in x 19 in
Fits Fan Dia.
16 in
Flange Width
1 1/2 in
Frame Depth
2 in
Open Depth
5 3/4 in
Mounting Hole Size
Prepunched
Overall Width
19 in
Fits Fan Diameter
16 in
Rough Opening Width
16.5 in
Frame Material Thickness
0 in
Frame Opening Height
16 in
Overall Length
5 1/4 in
Overall Height
19 in
Frame Opening Width
16 in
Blade Material Thickness
0 ga
Rough Opening Diameter
16 1/2 in
Overall Diameter
19 in
Rough Opening Length
16 1/2 in

Details

Item
19"H-W 5 1/4"L SS Backdraft Dampr
Shutter Mounting Position
Vertical
Shutter Mounting Location
Wall
Shutter Construction Material
Stainless Steel Frame and Tie Rods
Shutter Free Area
1.436 sq ft
Shutter Opening Required
16-1/2 in x 16-1/2 in
Blade Material
Stainless Steel
Max. Velocity
2500 FPM
Type
Gravity Operated, Single Panel
Shutter Item
Backdraft Damper / Wall Shutter
Number of Panels
1
Shutter Overall Square
19" x 19"
For Use With
Vertical Mounted Exhaust Fans
Frame Opening A
16 in
Frame Opening B
16 in
Includes
Stainless Steel Frame; Louvers and Hardware For Superior Corrosion Resistance
Mounting Position
Vertical
Free Area
1.5 sq ft
Closure Type
Gravity
Flange Type
Rear Flange
Switch Action
Normally Closed
Blade Orientation
Parallel Blades
Maximum Air Velocity
2500 fpm
Closure Velocity Rating
2,500 fpm
Counterbalanced
No
Airflow Direction
Horizontal
Single Acting/Double Acting
Single Acting
Maximum Pressure
1 in wc
Blade Seal Material
Felt
Damper Type
Static
Damper Application
Backdraft
Rough Opening Shape
Square
Blade Type
Flat Blade
Maximum Ambient Temperature
180 Degrees F
Tie-Rod Material
Stainless Steel Frame and Tie Rods
Bushing Material
Stainless Steel
Frame Material
Stainless Steel
Frame Less Flange
16

Description

19 In.H-W 5 1/4 In.L SS Backdraft Dampr, Damper Application Backdraft, For Nominal Duct Diameter Not Applicable, Frame Material Stainless Steel, Number of Panels 1, Maximum Air Velocity 2500 fpm, Overall Height 19 in, Rough Opening Diameter 16 1/2 in, Rough Opening Shape Square, Fits Fan Diameter 16 in, For Duct Shape Not Applicable, Free Area 1.5 sq ft, Overall Width 19 in, Frame Material Thickness 0 in, Overall Length 5 1/4 in, Connection Type Not Applicable, Frame Depth 2 in
