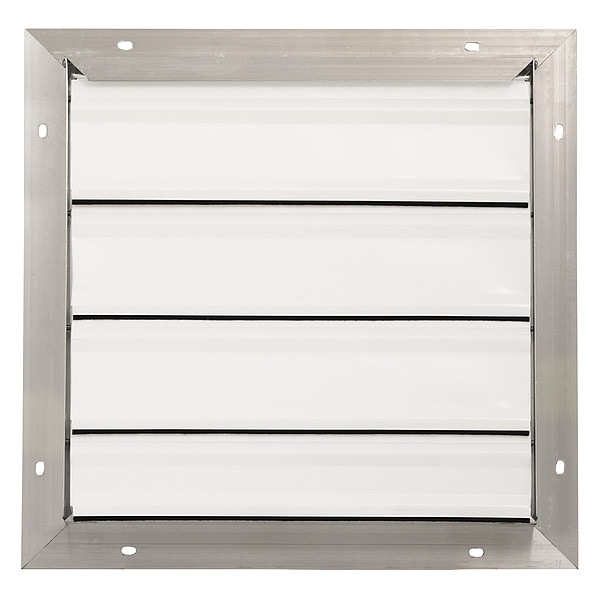

Dayton 16 in 19"H-W 5.75"L Aluminum Backdraft Damper, 16-1/2 in x 16-1/2 in, Aluminum 4C557 - main

16 in 19"H-W 5.75"L Aluminum Backdraft Damper, 16-1/2 in x 16-1/2 in, Aluminum

  • Mfr # 4C557

  • Zoro # G2009244

product price:  $75.89
/ea
Free Shipping & Returns

Key Features

Shutter Mounting Position
Vertical
Shutter Mounting Location
Wall
Shutter Construction Material
Extruded Aluminum Frame and G-90 Galvanized Tie Rods
Shutter Free Area
1.436 sq ft
Shutter Opening Required
16-1/2 in x 16-1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
4C557
Zoro #
G2009244
UPC #
190735322178
Country of Origin
United States

Dimensions

Shutter Overall Size
19 in x 19 in
Fits Fan Dia.
16 in
Frame Depth
2 1/2 in
Mounting Hole Size
Prepunched
Open Depth
5 3/4 in
Flange Width
1 1/2 in
Overall Length
5 3/4 in
Overall Width
19 in
Overall Height
19 in
Blade Material Thickness
26 ga
Fits Fan Diameter
16 in
Mounting Hole Diameter
1/4 in
Rough Opening Width
16.5 in
Rough Opening Diameter
16 1/2 in
Overall Diameter
19 in
Frame Opening Width
16 in
Frame Material Thickness
0.8 in
Frame Opening Height
16 in
Rough Opening Length
16 1/2 in

Details

Item
19"H-W 5.75"L Aluminum Backdraft Damper
Shutter Mounting Position
Vertical
Shutter Mounting Location
Wall
Shutter Construction Material
Extruded Aluminum Frame and G-90 Galvanized Tie Rods
Shutter Free Area
1.436 sq ft
Shutter Opening Required
16-1/2 in x 16-1/2 in
Blade Material
Aluminum
Max. Velocity
2500 FPM
Type
Gravity Operated, Single Panel
Frame Opening B
16 in
Shutter Item
Backdraft Damper / Wall Shutter
Frame Opening A
16 in
Shutter Overall Square
23"
For Use With
Vertical Mounted Exhaust Fans
Number of Panels
1
Includes
Prepunched Mounting Holes; Felt edged Counterbalanced Louvers; Weep Holes In Frame Bottom
Mounting Position
Vertical
Color
White
Free Area
1.4 sq ft
Bushing Material
Stainless Steel
Blade Seal Material
Felt
Blade Orientation
Parallel Blades
Series
EAS
Flange Type
Rear Flange
Opening Type
Gravity
Closure Velocity Rating
2,500 fpm
Maximum Ambient Temperature
180 Degrees F
Damper Finish
Mill Finish
Frame Material
Aluminum
Maximum Pressure
1 in wc
Maximum Air Velocity
2500 fpm
Blade Type
Flat Blade
Switch Action
Normally Closed
Closure Type
Gravity
Frame Less Flange
16
Damper Application
Backdraft
Tie-Rod Material
Galvanized Steel Frame and Tie Rods
Airflow Direction
Horizontal
Damper Type
Static
Single Acting/Double Acting
Single Acting
Minimum Ambient Temperature
-40 Degrees F
Counterbalanced
Yes
Rough Opening Shape
Square

Description

19 In.H-W 5.75 In.L Aluminum Backdraft Damper, Damper Application Backdraft, For Nominal Duct Diameter Not Applicable, Frame Material Aluminum, Number of Panels 1, Maximum Air Velocity 2500 fpm, Overall Height 19 in, Rough Opening Diameter 16 1/2 in, Rough Opening Shape Square, Fits Fan Diameter 16 in, For Duct Shape Not Applicable, Free Area 1.4 sq ft, Overall Width 19 in, Frame Material Thickness 0.8 in, Overall Length 5 3/4 in, Connection Type Not Applicable, Frame Depth 2 1/2 in
