Shop DAYTON

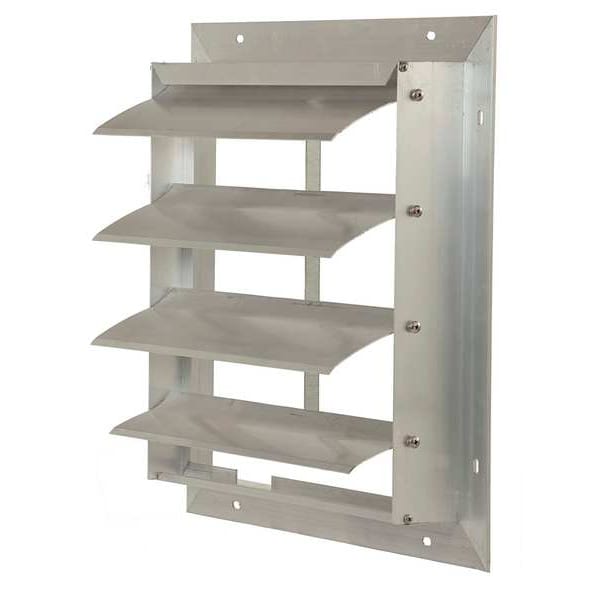

16 in 19"H-W 6.5"L Extrd Alu Backdraft Dampr, 16-1/2 in x 16-1/2 in, Aluminum

  • Mfr # 4FZH4

  • Zoro # G3364593

product price:  $119.99
/ea
Free Shipping & Returns

Key Features

Shutter Mounting Position
Vertical
Shutter Mounting Location
Wall
Shutter Construction Material
Extruded Aluminum Frame and Stainless Steel Tie Rods
Shutter Free Area
1.436 sq ft
Shutter Opening Required
16-1/2 in x 16-1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4FZH4
Zoro #
G3364593
UPC #
190735324363
Country of Origin
United States

Dimensions

Shutter Overall Size
19 in x 19 in
Fits Fan Dia.
16 in
Open Depth
6 1/4 in
Mounting Hole Size
Prepunched
Frame Depth
3 in
Flange Width
1 1/2 in
Overall Width
19 in
Frame Opening Height
16 1/2 in
Fits Fan Diameter
16 in
Rough Opening Length
16 1/2 in
Rough Opening Width
16.5 in
Rough Opening Diameter
16 1/2 in
Blade Material Thickness
0.8 in
Mounting Hole Diameter
1/4 in
Frame Material Thickness
0.8 in
Overall Height
19 in
Frame Opening Width
16 1/2 in
Overall Diameter
19 in
Overall Length
6 1/2 in
Wire Rope Length
6 1/2 in

Details

Item
19"H-W 6.5"L Extrd Alu Backdraft Dampr
Shutter Mounting Position
Vertical
Shutter Mounting Location
Wall
Shutter Construction Material
Extruded Aluminum Frame and Stainless Steel Tie Rods
Shutter Free Area
1.436 sq ft
Shutter Opening Required
16-1/2 in x 16-1/2 in
Blade Material
Aluminum
Max. Velocity
3000 fpm
Type
Gravity Operated, Single Panel
For Use With
Vertical Mounted Exhaust Fans
Number of Panels
1
Shutter Item
Backdraft Damper / Wall Shutter
Frame Opening B
16 in
Frame Opening A
16 in
Shutter Overall Square
19" x 19"
Includes
Extruded Aluminum Louvers
Mounting Position
Vertical
Free Area
1.4 sq ft
Series
EAS-HDGS
Damper Type
Static
Maximum Air Velocity
3250 fpm
Closure Type
Gravity
Frame Less Flange
16
Closure Velocity Rating
3,250 fpm
Blade Orientation
Parallel Blades
Maximum Ambient Temperature
180 Degrees F
Tie-Rod Material
Stainless Steel Frame and Tie Rods
Damper Finish
Mill Finish
Switch Action
Normally Closed
Maximum Pressure
1 in wc
Single Acting/Double Acting
Single Acting
Counterbalanced
No
Bushing Material
Stainless Steel
Opening Type
Gravity
Airflow Direction
Horizontal
Flange Type
Rear Flange
Frame Material
Aluminum
Blade Type
Flat Blade
Blade Seal Material
Felt
Damper Application
Backdraft
Rough Opening Shape
Square

Description

19 In.H-W 6.5 In.L Extrd Alu Backdraft Dampr, Damper Application Backdraft, For Nominal Duct Diameter Not Applicable, Frame Material Aluminum, Number of Panels 1, Maximum Air Velocity 3250 fpm, Overall Height 19 in, Rough Opening Diameter 16 1/2 in, Rough Opening Shape Square, Fits Fan Diameter 16 in, For Duct Shape Not Applicable, Free Area 1.4 sq ft, Overall Width 19 in, Frame Material Thickness 0.8 in, Overall Length 6 1/2 in, Connection Type Not Applicable, Frame Depth 3 in
