  9. 1650 CFM Gable Mount Attic Fan, 120V

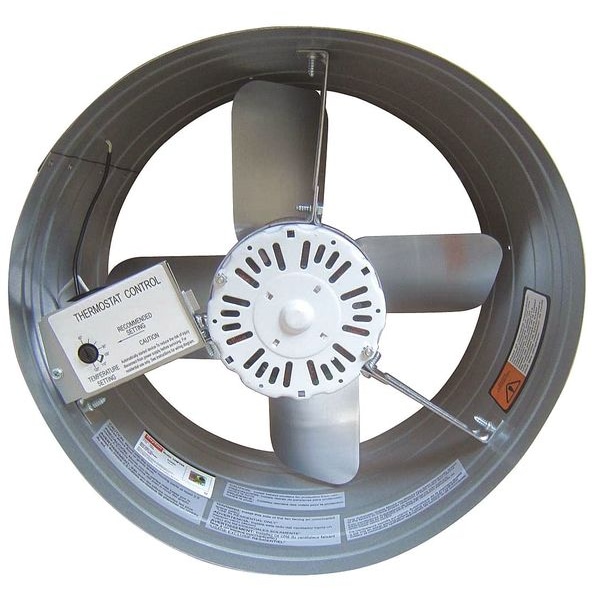

Dayton 1650 CFM Gable Mount Attic Fan, 120V 10W194 - main

1650 CFM Gable Mount Attic Fan, 120V

  • Mfr # 10W194

  • Zoro # G4273954

product price: $98.29
/ea
Free Shipping & Returns

Key Features

Voltage
120 VAC
Control Method - Roof Ventilators
Automatic
Max. Attic Area (Sq.-Ft.)
2,300 sq ft
Item - Roof Ventilators
Attic Ventilator
Hz
60
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
10W194
Zoro #
G4273954
UPC #
190735110126
Country of Origin
China

Dimensions

Dome Dia. (In.)
15 in
Overall Width
15 in
Overall Length
15 in
Overall Height
8 in
Overall Diameter
15 in
Rough Opening Diameter
15 in

Details

Voltage
120 VAC
Control Method - Roof Ventilators
Automatic
Max. Attic Area (Sq.-Ft.)
2,300 sq ft
Item - Roof Ventilators
Attic Ventilator
Hz
60
HP
1/8 hp
Amps
3.15A
Watts
220 W
RPM
1,100 RPM
CFM @ 0.000-In. SP
1650
Free Air Intake Required (Sq.-Ft.)
5.4 sq ft
Dome Material
Galvanized Steel
Thermostat Temp. (Deg. F)
60 to 120
Includes
Metal Housing, Mounting Brackets, Thermostat
Type
Thermostatically Controlled Gable Mount
Power Method - Roof Ventilators
120V
Mounting Location - Roof Ventilators
Gable
Item
Attic Exhaust Fan
Included with Ventilator
Thermostat
Housing Material
Steel
Rough Opening Shape
Round
Motor Horsepower
1/8 hp
For High-Static Pressure Applications
No
Maximum Attic Area
2,300 sq ft
Includes Motor
Yes
Wattage
220 W
Fire Safety Shut-Off
No
Includes Shutter
No
Power Source
Electric Motor
Airflow @ 0.000 in SP
1,650 cfm
Control Type
Thermostat
Frequency
60 Hz
Nameplate Voltage
120V AC
Current
3.15 A
Exhaust Airflow @ 0.000 in SP
1,650 cfm
Maximum Motor Speed
1,100 RPM
High-Efficiency Motor
No
Blade Material
Steel
Includes Thermostat
Yes
Maximum Fan Speed
1,100 RPM
Thermostat Temperature Range
60 Degrees to 120 Degrees F
Includes Humidistat
No

Description

Attic Exhaust Fan, Control Type Thermostat, Blade Material Steel, Exhaust Airflow @ 0.000 in SP 1,650 cfm, Fire Safety Shut-Off No, High-Efficiency Motor No, Housing Material Steel, Includes Humidistat No, Includes Shutter No, Includes Thermostat Yes, Maximum Attic Area 2,300 sq ft, Motor Horsepower 1/8 hp, Mounting Location Gable, Nameplate Voltage 120V AC, Overall Diameter 15 in, Overall Height 8 in, Overall Length 15 in, Overall Width 15 in, Dome Shape Not Applicable

Restrictions

This item has been restricted from sale in the following states: NJ
