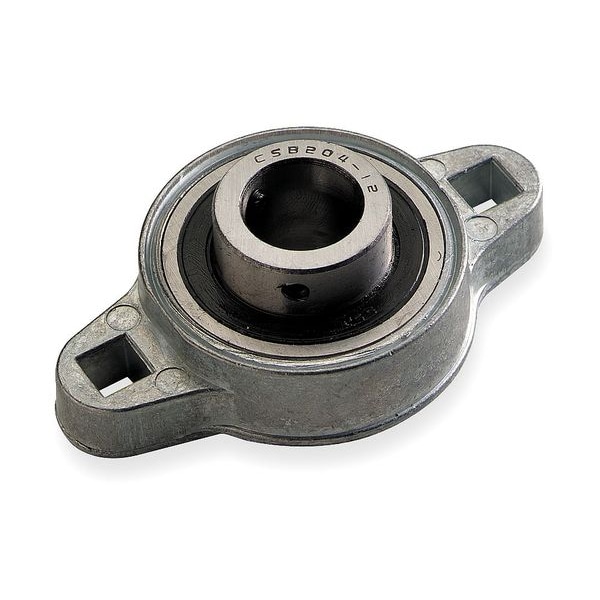

Dayton 1A398 Flange Mount Bearing (2 Bolt) 1A398 - main

1A398 Flange Mount Bearing (2 Bolt)

  • Mfr # 1A398

  • Zoro # G3235574

product price: $33.59
/ea

Key Features

Bearing Insert Type
Radial Ball
Bore Dia.
3/4 in
Shaft Locking Type
Set Screws
Bearing Housing Material Type
Zinc Die Cast
Bearing Insert Material
Alloy Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1A398
Zoro #
G3235574
UPC #
044861012239
Country of Origin
China

Dimensions

Bore Dia.
3/4 in
Bolt Size
5/16 in
Overall Height
1 1/8 in
Dimension L
1 1/8 in
Dimension D
2 1/4 in
Dimension F
1 1/8 in
Overall Length
3 5/8 in
Overall Width
2 1/4 in
Dimension J
11/32 Sq.
Dimension H
1/2 in
Dimension E
2 13/16 in
Dimension C
2 13/16 in
Dimension B
3 5/8 in
Bore Diameter
3/4 in
Mount Hole Center-to-Center Length
2 13/16 in
Mount Hole Center-to-Center Height
2 13/16 in
Mount Hole Size
11/32 in
Bore Diameter Tolerance
+0.0005 in; +0.001 in
Mounting Bolt Size
5/16 in

Details

Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screws
Bearing Housing Material Type
Zinc Die Cast
Bearing Insert Material
Alloy Steel
Bolt Hole Center-to-Center
2 13/16 in
Series
F2DC-BL
Item
2 Bolt Flange Bearing
Finish
None
Dynamic Load Capacity
2,877 lbf
Static Load Capacity
1,479 lb
Temp. Range
-30 Degrees to 200 Degrees F
Locking Type
Set Screw
Housing Material
Zinc Die Cast
Includes
(2) Set Screws
Standards
California Proposition 65, DFARS Compliant, ISO Certified, Reach Certified, RoHS 3 Certified, TOXIC SUBSTANCES CONTROL ACT SECTION
System of Measurement
Inch
Housing Type
Rhombus
Maximum Temperature
200 Degrees F
Lubrication Openings
One Zirc Fitting
Static Radial Load Capacity
1,479 lbf
Resistance Properties
Corrosion Resistant
Features
Ball Bearing is Pre-Lubricated and Made to ABEC-1 Tolerance, Housing Retains Bearing Securely by Pressing the Lip 360 Degrees Over the Outer Race, Ideal for Applications Requiring Strong Load Support in Limited Mounting Areas, Neoprene Seal Keeps Contaminants Out Allowing for Usage in Wet or Dry Conditions, Solid Zinc Die Cast Housing is Non-Corrosive and Lightweight, Wide Inner Race Locks Securely to the Shaft with Two Set Screws
Includes Mounting Hardware
Yes
Lubricant Material
NLGI #2 Equivalent
Closure
Double Sealed
Seal Material
Rubber
Rolling Element Rows
1
Maximum Speed
4,500 RPM
Bore Type
Cylindrical
Minimum Temperature
-30 Degrees F
Housing Material Finish
Unfinished
Number of Mount Holes
2
Bearing Material Grade
52100
Expansion Type
Fixed

Description

2 Bolt Flange Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 3/4 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Zinc Die Cast, Housing Type Rhombus, Lubricant Material NLGI #2 Equivalent, Maximum Speed 4,500 RPM, Maximum Temperature 200 Degrees F, Minimum Temperature -30 Degrees F, Mount Hole Center-to-Center Height 2 13/16 in, Number of Mount Holes 2, Overall Height 1 1/8 in, Overall Length 3 5/8 in
