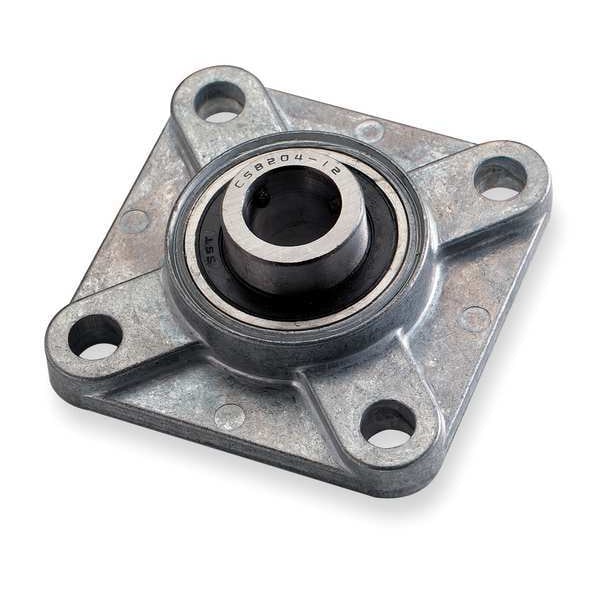

Dayton 1F552 Flange Mount Bearing (4 Bolt) 1F552 - main

1F552 Flange Mount Bearing (4 Bolt)

  • Mfr # 1F552

  • Zoro # G1953077

product price: $34.19
/ea

Key Features

Bearing Insert Type
Radial Ball
Bore Dia.
1/2 in
Shaft Locking Type
Set Screws
Bearing Housing Material Type
Zinc Die Cast
Bearing Insert Material
Alloy Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1F552
Zoro #
G1953077
UPC #
044861007990
Country of Origin
United States

Dimensions

Bore Dia.
1/2 in
Bolt Size
3/8 in
Overall Height
3 in
Overall Width
1 1/64 in
Dimension B
3 in
Dimension L
1 1/32 in
Dimension J
3/8 in
Overall Length
3 in
Dimension D
1 7/8 in
Dimension H
3/8 in
Dimension F
1 1/32 in
Dimension E
2 1/8 in
Dimension C
2 1/8 in
Bore Diameter Tolerance
+0.0005 in; +0.001 in
Mount Hole Center-to-Center Length
2 1/8 in
Bore Diameter
1/2 in
Mounting Bolt Size
3/8 in
Flange Thickness
3/8 in
Mount Hole Center-to-Center Height
2 1/8 in
Mount Hole Size
3/8 in

Details

Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screws
Bearing Housing Material Type
Zinc Die Cast
Bearing Insert Material
Alloy Steel
Bolt Hole Center-to-Center
2 1/8 in
Series
F4DC-BL
Static Load Capacity
1,075 lb
Locking Type
Set Screw
Housing Material
Zinc Die Cast
Item
4 Bolt Flange Bearing
Dynamic Load Capacity
1,075 lbf
Temp. Range
-30 Degrees to 200 Degrees F
Finish
None
Includes
(2) Set Screws
Standards
California Proposition 65, DFARS Compliant, ISO Certified, Reach Certified, RoHS 3 Certified, TOXIC SUBSTANCES CONTROL ACT SECTION
Rolling Element Rows
1
System of Measurement
Inch
Closure
Double Sealed
Seal Material
Rubber
Lubricant Material
NLGI #2 Equivalent
Number of Mount Holes
4
Includes Mounting Hardware
Yes
Bearing Material Grade
52100
Housing Material Finish
Unfinished
Housing Type
Square
Lubrication Openings
One Zirc Fitting
Static Radial Load Capacity
2,152 lbf
Maximum Speed
6,000 RPM
Resistance Properties
Corrosion Resistant
Bore Type
Cylindrical
Minimum Temperature
-30 Degrees F
Features
Ball Bearing is Pre-Lubricated and Made to ABEC-1 Tolerance, Housing Retains Bearing Securely by Pressing the Lip 360 Degrees Over the Outer Race, Ideal for Applications Requiring Strong Load Support in Limited Mounting Areas, Neoprene Seal Keeps Contaminants Out Allowing for Usage in Wet or Dry Conditions, Solid Zinc Die Cast Housing is Non-Corrosive and Lightweight, Wide Inner Race Locks Securely to the Shaft with Two Set Screws
Maximum Temperature
200 Degrees F
Expansion Type
Fixed

Description

4 Bolt Flange Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1/2 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Zinc Die Cast, Housing Type Square, Lubricant Material NLGI #2 Equivalent, Maximum Speed 6,000 RPM, Maximum Temperature 200 Degrees F, Minimum Temperature -30 Degrees F, Mount Hole Center-to-Center Height 2 1/8 in, Number of Mount Holes 4, Overall Height 3 in, Overall Length 3 in
