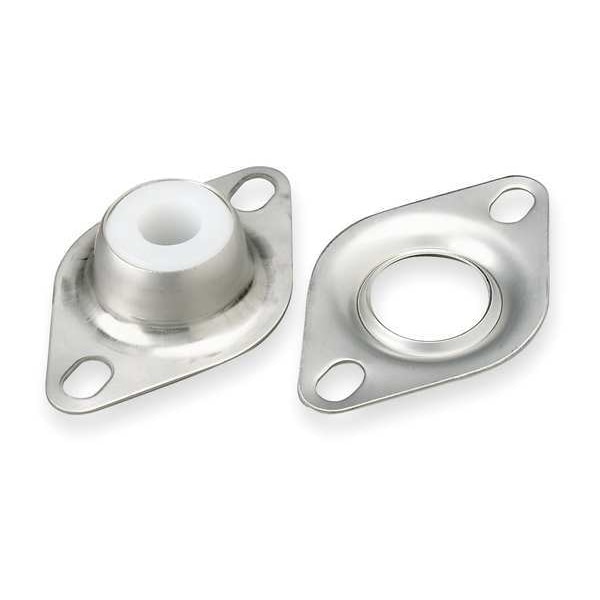

Dayton 1F574 Flange Mount Bearing (2 Bolt) 1F574 - main

1F574 Flange Mount Bearing (2 Bolt)

  • Mfr # 1F574

  • Zoro # G1165096

product price: $28.69
/ea

Key Features

Bearing Insert Type
Plain Sleeve
Bore Dia.
5/8 in
Shaft Locking Type
None
Bearing Housing Material Type
Pressed Stainless Steel
Bearing Insert Material
UHMW Polyethylene
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
1F574
Zoro #
G1165096
UPC #
044861007235
Country of Origin
United States

Dimensions

Bore Dia.
5/8 in
Bolt Size
7/16 in
Overall Height
1 1/8 in
Dimension L
1 1/8 in
Dimension H
1/8 in
Overall Length
4 3/8 in
Dimension J
7/16 in
Dimension B
4 3/8 in
Dimension F
1 1/8 in
Overall Width
2 3/4 in
Dimension E
3 3/8 in
Dimension C
3 3/8 in
Dimension D
2 3/4 in
Mount Hole Size
7/16 in
Mount Hole Center-to-Center Length
3 3/8 in
Mount Hole Center-to-Center Height
3.375 in
Bolt Circle Diameter
0.437 in
Mounting Bolt Size
7/16 in
Bore Diameter Tolerance
-0.000/+0.005 in; +0.005 in
Flange Thickness
1/8 in
Bore Diameter
5/8 in

Details

Bearing Insert Type
Plain Sleeve
Shaft Locking Type
None
Bearing Housing Material Type
Pressed Stainless Steel
Bearing Insert Material
UHMW Polyethylene
Bolt Hole Center-to-Center
3 3/8 in
Series
F2SS-UH
Finish
None
Item
2 Bolt Flange Bearing
Bearing Locking Type
None
Dynamic Load Capacity
Max. PV 3000 lb
Standards
California Proposition 65, DFARS Compliant, FDA Approved, ISO Certified, Reach Certified, RoHS 3 Certified, TOXIC SUBSTANCES CONTROL ACT SECTION, USDA Approved
Housing Material
Stainless Steel
Temp. Range
-60 Degrees to 180 Degrees F
Includes
Solid Self-Lubricating Bearing
Locking Type
None
Housing Material Finish
None
Minimum Temperature
-60 Degrees F
Features
F2SS-UH Series Bearings are USDA and FDA Approved, Ideal for Wash Down Applications in Wet or Harsh Environments or Where Sanitary Conditions are a Factor, Two-Piece Stainless Steel Housing, UHMW-PE Bearings are Self-Lubricating, Resist Corrosion, High Impact and Abrasion
Maximum Temperature
180 Degrees F
Resistance Properties
Abrasion Resistant, Corrosion Resistant, Impact Resistant
Maximum PV
3,000 lb/sq in-fpm
System of Measurement
Inch
Housing Type
Rhombus
Number of Mount Holes
2
Expansion Type
Fixed

Description

2 Bolt Flange Bearing, Bearing Insert Material UHMW Polyethylene, Bearing Insert Type Plain Sleeve, Bore Diameter 5/8 in, Expansion Type Fixed, Housing Material Stainless Steel, Housing Type Rhombus, Maximum Temperature 180 Degrees F, Minimum Temperature -60 Degrees F, Mount Hole Center-to-Center Height 3.375 in, Number of Mount Holes 2, Overall Height 1 1/8 in, Overall Length 4 3/8 in, Overall Width 2 3/4 in, Shaft Locking Type None, System of Measurement Inch
