Shop DAYTON

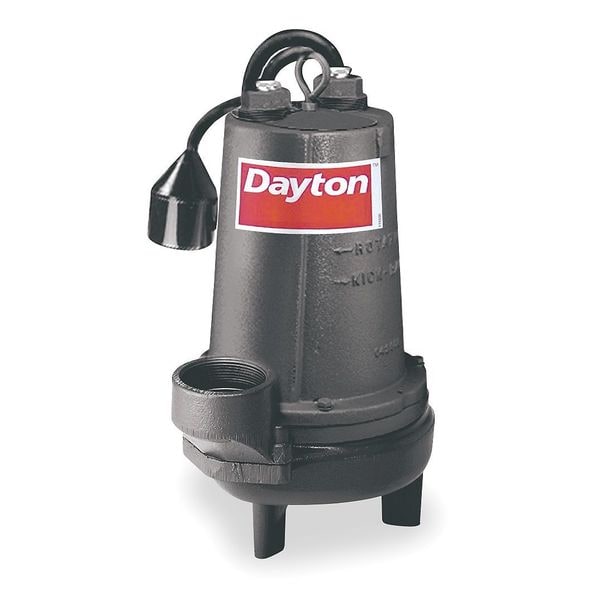

2 HP 3" Auto Submersible Sewage Pump 230V Tether

  • Mfr # 4LE23

  • Zoro # G3083805

product price:
$
2,107.99
/ea
Additional $110.00 delivery surcharge applies per item.
See details

Key Features

HP
2
Phase - Pumps
1
Switch Actuation
Tether Float
Body Material
Cast Iron
Base Material
303 Stainless Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4LE23
Zoro #
G3083805
UPC #
190735329580
Country of Origin
China

Dimensions

Max. Diameter Solids
2 1/2 in
Cord Length - Pumps
25 ft.
Height
21-1/4"
Diameter
16-23/32"
Max. Dia. Solids
2-1/2"
Cord Length
25 ft
Body Dia.
16 23/32 in
Overall Height
21 1/4 in
Discharge Dia.
3 in
Body Diameter
16 3/4 in
Solids Diameter - Maximum
2 1/2 in
Discharge Diameter
3 in

Details

HP
2
Phase - Pumps
1
Switch Actuation
Tether Float
Body Material
Cast Iron
Base Material
303 Stainless Steel
Flow Rate @ 10 Ft. of Head
375 gpm
Max. Head
46 ft
Impeller Material
Cast Iron
Voltage
230
GPM of Water @ 20 Ft. of Head
290
Shaft Seal
Silicon Carbide
Impeller Material - Pumps
Cast Iron
Bearing Type
Ball
Input Phase AC
1
Motor RPM
1750
Item
Sewage Ejector Pump
Housing Material
Cast iron
Max. Liquid Temp.
104 Degrees F
Discharge NPT
3"
Pump Type
Automatic
Switch Type
Tether
GPM of Water @ 30 Ft. of Head
200
Amps
19.00 A
GPM of Water @ 10 Ft. of Head
375
GPM of Water @ 25 Ft. of Head
250
Item - Sewage Pumps
Submersible Sewage Pump
Shaft Seal Material - Pumps
Carbon Ceramic
GPM of Water @ 15 Ft. of Head
335
Motor Type
PSC
Pump Body Material
Cast Iron
Voltage - Pumps
240VAC
Agency Compliance
CSA
Thermal Protection
Yes
Phase
Single
GPM of Water @ 40 Ft. of Head
85.0
GPM of Water @ 5 Ft. of Head
405
Switch Type - Pumps
Tether
Max. Head - Pumps
46 ft.
Amps - Pumps
19.00
Flow Rate @ 40 Ft. of Head
85 gpm
Rated Voltage
240V AC
Flow Rate @ 15 Ft. of Head
335 gpm
Switch Electrical Connection
Integral
Flow Rate @ 20 Ft. of Head
290 gpm
RPM
1,750 RPM
Discharge
3 in NPT
Discharge Standard
NPT
Standards
CSA
Type
Automatic
Horsepower
2 hp
Current
19.00 A
Rotation Speed - Maximum
1,750 RPM
Flow Rate @ 10 ft of Head
375 gpm
Feet of Head - Maximum
46 ft
Liquid Temperature - Maximum
104 Degrees F
Shaft Seal Material
Carbon/Ceramic

Description

Sewage Ejector Pump, HP 2, Rated Voltage 240V AC, Phase - Pumps 1, Amps 19.00 A, Motor Type PSC, Body Material Cast Iron, Impeller Material Cast Iron, Shaft Seal Material - Pumps Carbon Ceramic, Switch Actuation Tether Float, Switch Electrical Connection Integral, On Point Not Applicable, Off Point Not Applicable, Flow Rate @ 10 Ft. of Head 375 gpm, Flow Rate @ 15 Ft. of Head 335 gpm, Flow Rate @ 20 Ft. of Head 290 gpm, Flow Rate @ 40 Ft. of Head 85 gpm, Max. Diameter Solids 2 1/2 in

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
