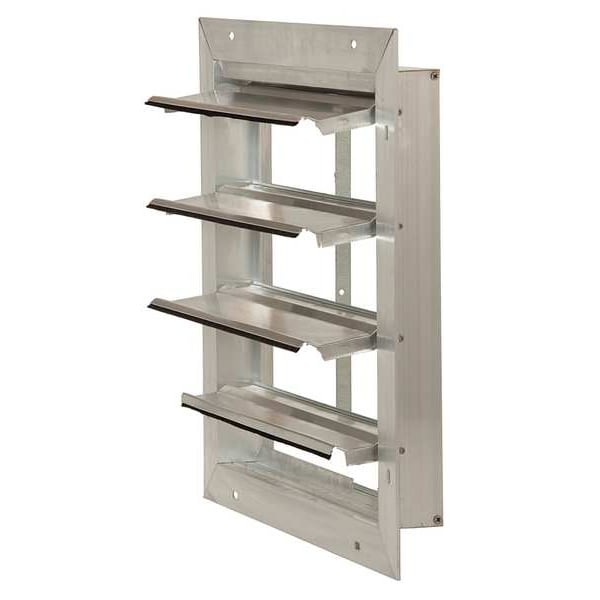

Dayton 20 in 25"H-W 5.75"L Aluminum Wall Fan Shutter, 22-1/2 in x 22-1/2 in, Aluminum 53DR17 - main

20 in 25"H-W 5.75"L Aluminum Wall Fan Shutter, 22-1/2 in x 22-1/2 in, Aluminum

  • Mfr # 53DR17

  • Zoro # G9180921

product price:  $101.99
/ea
Free Shipping & Returns

Key Features

Shutter Mounting Position
Vertical
Shutter Mounting Location
Wall
Shutter Construction Material
Extruded Aluminum Frame and G-90 Galvanized Tie Rods
Shutter Free Area
2.519 sq ft
Shutter Opening Required
22-1/2 in x 22-1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
53DR17
Zoro #
G9180921
UPC #
00194484302856
Country of Origin
United States

Dimensions

Shutter Overall Size
25 in x 25 in
Fits Fan Dia.
20 in
Width
25 in
Frame Depth
3 in
Flange Width
1 1/2 in
Length
25 in
Mounting Hole Size
9/64 in
Open Depth
5 3/4 in
Overall Length
5 3/4 in
Mounting Hole Diameter
1/4 in
Overall Diameter
25 in
Frame Material Thickness
0.8 in
Blade Material Thickness
26 ga
Overall Width
25 in
Overall Height
25 in
Rough Opening Diameter
22 1/2 in
Fits Fan Diameter
20 in
Rough Opening Width
22.5 in
Rough Opening Length
22 1/2 in

Details

Item
25"H-W 5.75"L Aluminum Wall Fan Shutter
Shutter Mounting Position
Vertical
Shutter Mounting Location
Wall
Shutter Construction Material
Extruded Aluminum Frame and G-90 Galvanized Tie Rods
Shutter Free Area
2.519 sq ft
Shutter Opening Required
22-1/2 in x 22-1/2 in
Blade Material
Aluminum
Max. Velocity
2500 FPM
Type
Exhaust
Frame Opening B
22 in
Shutter Item
Backdraft Damper / Wall Shutter
Number of Panels
1
For Use With
Vertical Mounted Exhaust Fans
Frame Opening A
22 in
Includes
Prepunched Mounting Holes; Felt edged Counterbalanced Louvers; Weep Holes In Frame Bottom
Mounting Position
Vertical
Frame Material
Aluminum
Blade Type
Flat Blade
Free Area
2.5 sq ft
Maximum Air Velocity
2500 fpm
Frame Less Flange
22
Switch Action
Normally Closed
Opening Type
Gravity
Single Acting/Double Acting
Single Acting
Series
EASR
Counterbalanced
Yes
Minimum Ambient Temperature
-40 Degrees F
Rough Opening Shape
Square
Color
White
Blade Seal Material
Felt
Airflow Direction
Horizontal
Damper Type
Static
Tie-Rod Material
Galvanized Steel Frame and Tie Rods
Damper Application
Backdraft
Damper Finish
Mill Finish
Flange Type
Front Flange
Maximum Pressure
1 in wc
Closure Type
Gravity
Blade Orientation
Parallel Blades
Closure Velocity Rating
2,500 fpm
Bushing Material
Stainless Steel
Maximum Ambient Temperature
180 Degrees F

Description

25 In.H-W 5.75 In.L Aluminum Wall Fan Shutter, Damper Application Backdraft, For Nominal Duct Diameter Not Applicable, Frame Material Aluminum, Number of Panels 1, Maximum Air Velocity 2500 fpm, Overall Height 25 in, Rough Opening Diameter 22 1/2 in, Rough Opening Shape Square, Fits Fan Diameter 20 in, For Duct Shape Not Applicable, Free Area 2.5 sq ft, Overall Width 25 in, Frame Material Thickness 0.8 in, Overall Length 5 3/4 in, Connection Type Not Applicable, Frame Depth 3 in
