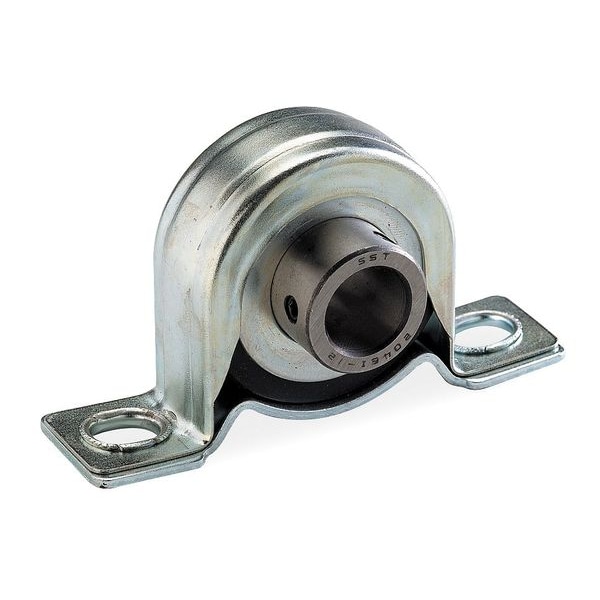

2X404 Pillow Block Bearing
Mfr # 2X404
Zoro # G0384894
product price: $46.99
/eaKey Features
Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screws
Bearing Housing Material Type
Pressed Steel
Bearing Insert Material
Alloy Steel
Bolt Hole Center-to-Center
3 7/16 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
2X404
Zoro #
G0384894
UPC #
044861013502
Country of Origin
United States
Dimensions
Bore Dia.
5/8 in
Dimension B
2 5/8 in
Bolt Size
7/16 in
Dimension J
7/16 in
Overall Height
2.625 in
Overall Width
1.687 in
Dimension H
9/64 in
Dimension A
1 5/16 in
Dimension L
1 11/16 in
Overall Length
4.437 in
Dimension F
9/64 in
Dimension G
1 11/16 in
Dimension D
4 7/16 in
Dimension E
3 7/16 in
Dimension C
4 7/16 in
Mounting Bolt Size
7/16 in
Bore Diameter
5/8 in
Center Height
1 5/16 in
Base Height
0.14 in
Mount Hole Center-to-Center Length
3 7/16 in
Description
Pillow Block Bearing, Base Height 0.14 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 5/8 in, Bore Type Cylindrical, Center Height 1 5/16 in, Closure Double Sealed, Housing Material Steel, Lubricant Material NGLI #2 Equivalent, Maximum Speed 5,000 RPM, Maximum Temperature 200 Degrees F, Minimum Temperature -30 Degrees F, Mount Hole Center-to-Center Length 3 7/16 in, Mount Type Bolt-Through, Number of Mount Holes 2, Overall Height 2.625 in
