Shop DAYTON

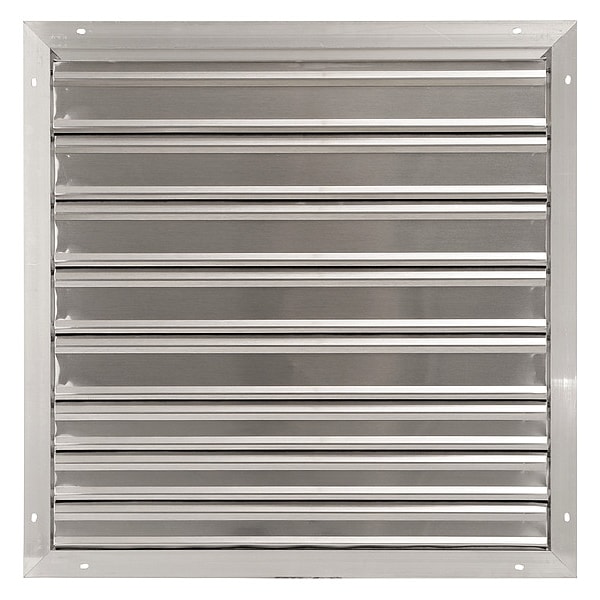

30 in 33"H-W 5.75"L Alu Wall Backdraft Dampr, 30-1/2 in x 30-1/2 in, Aluminum

  • Mfr # 2FTX1

  • Zoro # G2270834

product price:
$
136.99
/ea
Free Shipping & Returns

Key Features

Shutter Mounting Position
Vertical
Shutter Mounting Location
Wall
Shutter Construction Material
Extruded Aluminum Frame and Galvanized Tie Rods
Shutter Free Area
5.452 sq ft
Shutter Opening Required
30-1/2 in x 30-1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2FTX1
Zoro #
G2270834
UPC #
190735218860
Country of Origin
United States

Dimensions

Shutter Overall Size
33 in x 33 in
Fits Fan Dia.
30 in
Flange Width
1 1/2 in
Open Depth
5 3/4 in
Frame Depth
3 in
Mounting Hole Size
Prepunched
Overall Width
33 in
Frame Material Thickness
0.8 in
Fits Fan Diameter
30 in
Rough Opening Diameter
30 1/2 in
Frame Opening Width
30 in
Overall Diameter
33 in
Overall Height
33 in
Overall Length
5 3/4 in
Rough Opening Length
30 1/2 in
Mounting Hole Diameter
1/4 in
Blade Material Thickness
26 ga
Rough Opening Width
30.5 in
Frame Opening Height
30 in
Wire Rope Length
5 3/4 in
Length
5 3/4 in

Details

Item
33"H-W 5.75"L Alu Wall Backdraft Dampr
Shutter Mounting Position
Vertical
Shutter Mounting Location
Wall
Shutter Construction Material
Extruded Aluminum Frame and Galvanized Tie Rods
Shutter Free Area
5.452 sq ft
Shutter Opening Required
30-1/2 in x 30-1/2 in
Blade Material
Aluminum
Max. Velocity
2500 FPM
Type
Gravity Operated, Single Panel
Shutter Item
Backdraft Damper / Wall Shutter, Front Flange
Shutter Overall Square
33" x 33"
Frame Opening B
30 in
For Use With
Vertical Mounted Exhaust Fans
Number of Panels
1
Frame Opening A
30 in
Includes
Prepunched Mounting Holes; Felt edged Counterbalanced Louvers; Weep Holes In Frame Bottom
Mounting Position
Vertical
Free Area
5.5 sq ft
Maximum Ambient Temperature
180 Degrees F
Closure Type
Gravity
Bushing Material
Stainless Steel
Frame Material
Aluminum
Damper Finish
Mill Finish
Maximum Pressure
1 in wc
Counterbalanced
Yes
Maximum Air Velocity
2500 fpm
Switch Action
Normally Closed
Airflow Direction
Horizontal
Tie-Rod Material
Galvanized Steel Frame and Tie Rods
Opening Type
Gravity
Series
EASR
Blade Type
Flat Blade
Damper Type
Static
Frame Less Flange
30
Closure Velocity Rating
2,500 fpm
Rough Opening Shape
Square
Single Acting/Double Acting
Single Acting
Flange Type
Front Flange
Blade Seal Material
Felt
Blade Orientation
Parallel Blades
Damper Application
Backdraft
Minimum Ambient Temperature
-40 Degrees F

Description

33 In.H-W 5.75 In.L Alu Wall Backdraft Dampr, Damper Application Backdraft, For Nominal Duct Diameter Not Applicable, Frame Material Aluminum, Number of Panels 1, Maximum Air Velocity 2500 fpm, Overall Height 33 in, Rough Opening Diameter 30 1/2 in, Rough Opening Shape Square, Fits Fan Diameter 30 in, For Duct Shape Not Applicable, Free Area 5.5 sq ft, Overall Width 33 in, Frame Material Thickness 0.8 in, Overall Length 5 3/4 in, Connection Type Not Applicable, Frame Depth 3 in
