  9. 30" Tubeaxial Fan w/ Motor & Drive Pkg, -VAC

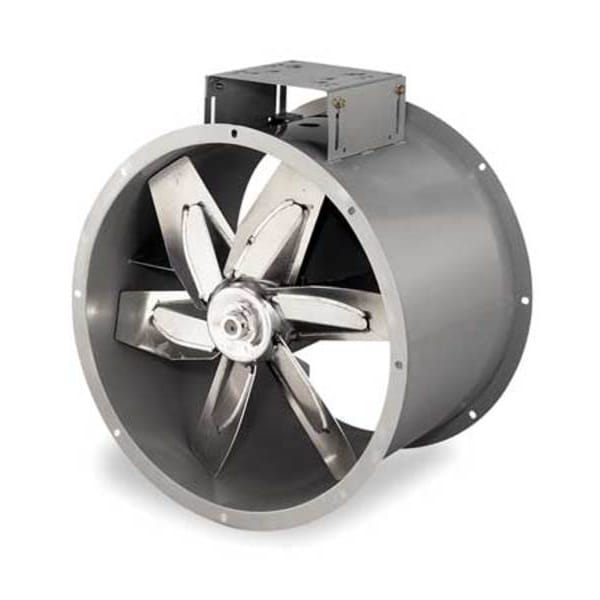

Dayton 30" Tubeaxial Fan w/ Motor & Drive Pkg, -VAC 7E624 - main

30" Tubeaxial Fan w/ Motor & Drive Pkg, -VAC

  • Mfr # 7E624

  • Zoro # G0524264

product price: $2,801.99
/ea
Item requires special delivery charges. A $160.00 per item surcharge will be applied.

Key Features

Blade Dia.
30 in
Voltage
208-230/460
Blade Material
Aluminum
Housing Material
Steel
Phase
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
7E624
Zoro #
G0524264
UPC #
-
Country of Origin
Multiple

Dimensions

Blade Dia.
30 in
Height
46 5/8 in
Dimension E
7/16 in
Dimension C
30 1/2 in
Dimension B
19 1/4 in
Width
33 5/8 in
Housing Dia. w/Mtg. Flange
33 5/8 in
Dimension D
24 in
Outlet Dia.
30 5/8 in
Max. Depth
24 in
Max. Motor Height
10 in
Housing Dia. w/o Mtg. Flange
30 1/2 in
Bolt Circle Dia.
32 1/4 in
Shaft Dia.
1 1/8 in
Dimension A
33 5/8 in
Inlet Dia.
30 5/8 in
Body Diameter
30 5/8 in
Overall Height
46 5/8 in
Propeller Shaft Diameter
1 1/8 in
Bolt Circle Diameter
32 1/4 in
Blade Diameter
30 in

Details

Voltage
208-230/460
Blade Material
Aluminum
Housing Material
Steel
Phase
3
Max. Inlet Temp.
200 Degrees F
Number of Speeds
1
Number of Blades
6
Item
Tubeaxial Fan
Motor Type
General Purpose Motor
Motor RPM
1,765 RPM
Includes
Belt Guard
Bearing Type
Ball Bearing
Max. Ambient Temp.
104 Degrees F
Motor HP
3 hp
Drive Type
Belt Drive
Companion Flange Stock No.
3C440
Mounting Position
Horizontal
Housing Finish
Baked Enamel
Motor Enclosure
Totally Enclosed Fan Cooled
Replacement Fan Blade Stock No.
3C418
Assembled/Unassembled
Unassembled
Standards
AMCA
Mounting Orientation
Horizontal, Vertical
Resistance Properties
Corrosion Resistant, Spark Resistant
Spark Resistant Construction Type
B
Motor Speed
1,765 RPM
Maximum Ambient Temperature
104 Degrees F
Assembly
Unassembled
Safety Features
Spark Resistant Aluminum Blade
Maximum Inlet Air Temperature
200 Degrees F
Includes Motor
Yes
For Air Type
Clean Air
Airflow @ 0.000 in SP
14,040 cfm
Replacement Fan Blade Part Number
3C418
Motor Horsepower
3 hp
Maximum Noise Level @ 5 Feet
52 sones
Includes Drive Package
Yes
Hazardous Location Specification
Not Rated
Nameplate Voltage
208-230/460V AC

Description

Tubeaxial Fan, Drive Type Belt Drive, Includes Drive Package Yes, Includes Motor Yes, Blade Diameter 30 in, Nameplate Voltage 208-230/460V AC, Phase 3, Motor Horsepower 3 hp, Airflow @ 0.000 in SP 14,040 cfm, Maximum Noise Level @ 5 Feet 52 sones, Assembly Unassembled, For Air Type Clean Air, Blade Material Aluminum, Housing Material Steel, Number of Blades 6, Number of Speeds 1, Motor Enclosure Totally Enclosed Fan Cooled, Standards AMCA, Bolt Circle Diameter 32 1/4 in
