  9. 3/4 HP 1-1/2" F Submersible Sump Pump 120V AC Diaphragm

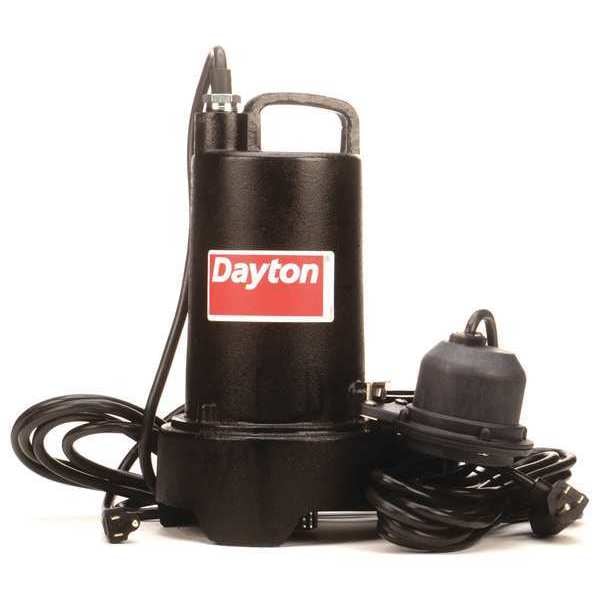

Dayton 3/4 HP 1-1/2" F Submersible Sump Pump 120V AC Diaphragm 3BB80 - main

3/4 HP 1-1/2" F Submersible Sump Pump 120V AC Diaphragm

  • Mfr # 3BB80

  • Zoro # G3322943

product price: $645.99
/ea
Free Shipping & Returns

Key Features

Cord Length
15 ft
Discharge NPT
1-1/2" F
Housing Material
Cast iron
HP
3/4
Hz
60 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3BB80
Zoro #
G3322943
UPC #
190735280065
Country of Origin
China

Dimensions

Cord Length
15 ft
Max. Diameter Solids
1/2 in
Diameter
10"
Cord Length - Pumps
15 ft.
Height
13"
Max. Dia. Solids
1/2"
Discharge Dia.
1 1/2 in
Overall Height
13 in
Body Dia.
10 in
Solids Diameter - Maximum
1/2 in
Body Diameter
10 in
Discharge Diameter
1 1/2 in
Sump Pit Diameter - Minimum
18 in

Details

Discharge NPT
1-1/2" F
Housing Material
Cast iron
HP
3/4
Hz
60 Hz
Impeller Material
Cast Iron
Includes
Diaphragm Switch
Max. Head
37 ft
Max. Temp.
104 Degrees F
Motor RPM
3450
Motor Type
Oil-Cooled
Shaft Seal
Silicon Carbide
Voltage
120V AC
Phase
Single
Mechanical Seal
SiC
GPM of Water @ 25 Ft. of Head
63
On Point
14 1/2 in
GPM of Water @ 20 Ft. of Head
80
Off Point
5 in
Voltage - Pumps
120VAC
Item - Sump Pumps
Submersible Sump Pump
Impeller Material - Pumps
Cast Iron
Gauge/Conductor
16/3
Duty
Intermittent
Bearing Type
Upper and Lower Ball
Max Head - Pumps
37 ft.
GPM of Water @ 5 Ft. of Head
113
GPM of Water @ 30 Ft. of Head
43
Alarm
No
Alarm Included
No
NEC Cord Designation
SJTOW
GPM of Water @ 15 Ft. of Head
92
Item
Submersible Sump Pump
Max. Liquid Temp.
104 Degrees F
Shaft Seal Material - Pumps
Carbon Ceramic
Pump Body Material
Cast Iron
Switch Type - Pumps
Diaphragm
Switch Type
Diaphragm
Amps
10.5 A
Amps - Pumps
10.50
Max. Head - Pumps
37 ft.
Base Material
Cast Iron
GPM of Water @ 10 Ft. of Head
101
Body Material
Cast Iron
Duty Cycle
Intermittent
Switch Electrical Connection
Piggyback
Flow Rate @ 10 Ft. of Head
101 gpm
Flow Rate @ 15 Ft. of Head
92 gpm
Discharge Gender
Female
Rated Voltage
120V AC
Flow Rate @ 5 Ft. of Head
113 gpm
Switch Actuation
Diaphragm
Discharge
1 1/2 in FNPT
Flow Rate @ 20 Ft. of Head
80 gpm
Discharge Standard
NPT
Shaft Seal Type
Single Mechanical
For Media Type
Clear Water, Trash Water
Power Source
Corded Electric
Flow Rate @ 10 ft of Head
101 gpm
Frequency
60 Hz
Liquid Temperature - Maximum
104 Degrees F
Feet of Head - Maximum
37 ft
Shaft Seal Material
Carbon/Ceramic
Motor Housing Material
Cast Iron
Includes Alarm
No Alarm Included
Hazardous Location Class
Not Rated
Volute Material
Cast Iron
Horsepower
3/4 hp
Current
10.5 A
Impeller Design
Vortex

Description

Submersible Sump Pump, HP 3/4, Rated Voltage 120V AC, Hz 60 Hz, Amps 10.5 A, Switch Actuation Diaphragm, Switch Electrical Connection Piggyback, Off Point 5 in, On Point 14 1/2 in, Body Material Cast Iron, Impeller Material Cast Iron, Shaft Seal Material - Pumps Carbon Ceramic, Flow Rate @ 5 Ft. of Head 113 gpm, Flow Rate @ 10 Ft. of Head 101 gpm, Flow Rate @ 15 Ft. of Head 92 gpm, Flow Rate @ 20 Ft. of Head 80 gpm, Max. Head 37 ft, Body Dia. 10 in, Overall Height 13 in, Discharge 1 1/2 in FNPT
