  9. 3/4 HP 1-1/4" M Submersible Sump Pump 120V AC Tether

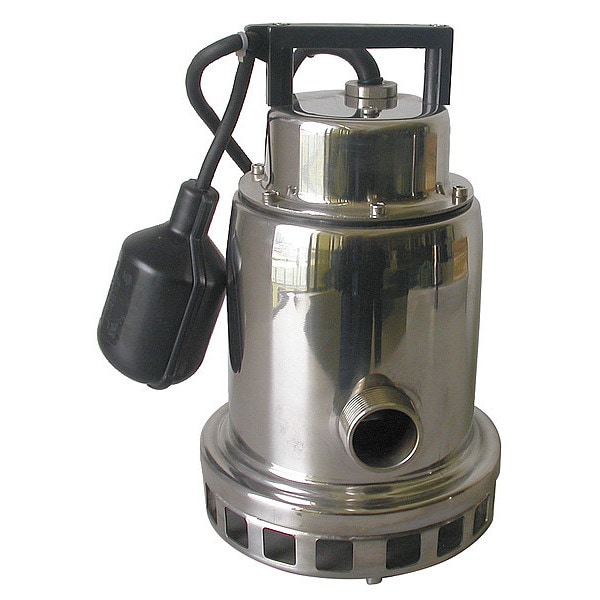

Dayton 3/4 HP 1-1/4" M Submersible Sump Pump 120V AC Tether 3YU76 - main

3/4 HP 1-1/4" M Submersible Sump Pump 120V AC Tether

  • Mfr # 3YU76

  • Zoro # G2988027

product price: $511.99
/ea
Free Shipping & Returns

Key Features

Cord Length
15 ft
Discharge NPT
1-1/4" M
Housing Material
Stainless steel
HP
3/4
Hz
60 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3YU76
Zoro #
G2988027
UPC #
190735296608
Country of Origin
China

Dimensions

Cord Length
15 ft
Height
12"
Diameter
9-1/2"
Cord Length - Pumps
15 ft.
Max. Diameter Solids
3/4 in
Min. Sump Pit Dia.
12 in
Max. Dia. Solids
3/4"
Overall Height
12 in
Discharge Dia.
1 1/4 in
Body Dia.
9 1/2 in
Discharge Diameter
1 1/4 in
Solids Diameter - Maximum
3/4 in
Sump Pit Diameter - Minimum
12 in
Body Diameter
9 1/2 in

Details

Discharge NPT
1-1/4" M
Housing Material
Stainless steel
HP
3/4
Hz
60 Hz
Impeller Material
Stainless Steel
Includes
90 Degrees 1 1/4" NPT Discharge Elbow
Max. Head
26 ft
Max. Temp.
104 Degrees F
Motor RPM
3450
Motor Type
PSC
Shaft Seal
Buna N
Voltage
120V AC
Phase
Single
Item - Sump Pumps
Submersible Sump Pump
Off Point
8 1/2 in
Item
Submersible Sump Pump
Voltage - Pumps
120VAC
GPM of Water @ 5 Ft. of Head
45
Amps
6.4 A
Alarm Included
No
On Point
15 45/64 in
Mechanical Seal
Buna N
Switch Type - Pumps
Tether
Duty
Continuous
GPM of Water @ 10 Ft. of Head
34
Gauge/Conductor
18/3
Pump Body Material
Stainless Steel
Max. Head - Pumps
26 ft.
NEC Cord Designation
SJTW
Bearing Type
Lubricated Ball
GPM of Water @ 15 Ft. of Head
21
Amps - Pumps
6.40
Base Material
Stainless Steel
GPM of Water @ 25 Ft. of Head
3
GPM of Water @ 20 Ft. of Head
12
Switch Type
Tether
Shaft Seal Material - Pumps
Buna-N
Max. Liquid Temp.
104 Degrees F
Alarm
No
Impeller Material - Pumps
Stainless Steel
Flow Rate @ 15 Ft. of Head
21 gpm
Body Material
Stainless Steel
Flow Rate @ 20 Ft. of Head
12 gpm
Discharge
1 1/4 in MNPT
Rated Voltage
115V AC
Flow Rate @ 10 Ft. of Head
34 gpm
Switch Electrical Connection
Piggyback
Discharge Gender
Male
Flow Rate @ 5 Ft. of Head
45 gpm
Duty Cycle
Continuous
Discharge Standard
NPT
Switch Actuation
Tether Float
Volute Material
Stainless Steel
Shaft Seal Material
Carbon/Ceramic/Nitrile Rubber
Power Source
Corded Electric
For Media Type
Clear Water, Trash Water
Shaft Seal Type
Single Mechanical
Liquid Temperature - Maximum
104 Degrees F
Frequency
60 Hz
Includes Alarm
No Alarm Included
Horsepower
3/4 hp
Current
6.4 A
Feet of Head - Maximum
26 ft
Motor Housing Material
Stainless Steel
Flow Rate @ 10 ft of Head
38 gpm
Hazardous Location Class
Not Rated

Description

Submersible Sump Pump, HP 3/4, Rated Voltage 115V AC, Hz 60 Hz, Amps 6.4 A, Switch Actuation Tether Float, Switch Electrical Connection Piggyback, Off Point 8 1/2 in, On Point 15 45/64 in, Body Material Stainless Steel, Impeller Material Stainless Steel, Shaft Seal Material - Pumps Buna-N, Flow Rate @ 5 Ft. of Head 45 gpm, Flow Rate @ 10 Ft. of Head 34 gpm, Flow Rate @ 15 Ft. of Head 21 gpm, Flow Rate @ 20 Ft. of Head 12 gpm, Max. Head 26 ft, Min. Sump Pit Dia. 12 in, Body Dia. 9 1/2 in
