Shop DAYTON

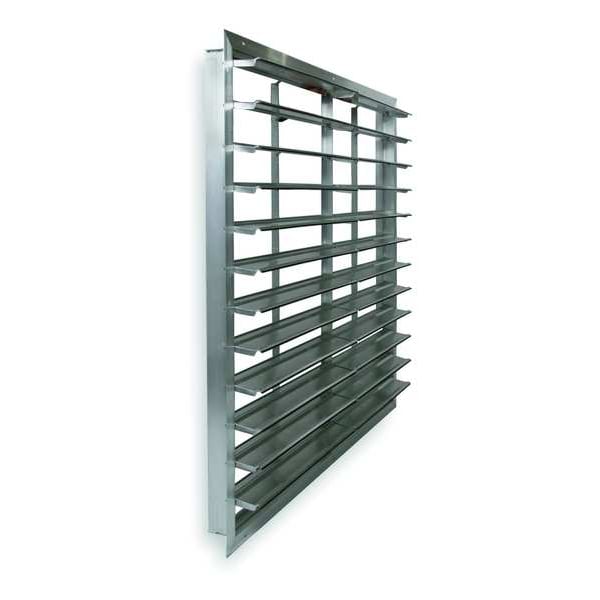

48 in 51"H-W 5.75"L Alu Wall Exhaust Shutter, 48-1/2 in x 48-1/2 in, Aluminum

  • Mfr # 2FTX3

  • Zoro # G2584276

product price:
$
323.99
/ea
Additional $140.00 delivery surcharge applies per item.
See details

Key Features

Shutter Mounting Position
Vertical
Shutter Mounting Location
Wall
Shutter Construction Material
Extruded Aluminum Frame and Galvanized Tie Rods
Shutter Free Area
12.924 sq ft
Shutter Opening Required
48-1/2 in x 48-1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2FTX3
Zoro #
G2584276
UPC #
190735218884
Country of Origin
United States

Dimensions

Shutter Overall Size
51 in x 51 in
Fits Fan Dia.
48 in
Flange Width
1 1/2 in
Frame Depth
3 in
Open Depth
5 3/4 in
Mounting Hole Size
Prepunched
Rough Opening Diameter
48 1/2 in
Frame Opening Width
48 in
Rough Opening Width
48.5 in
Overall Height
51 in
Frame Opening Height
48 in
Frame Material Thickness
0.8 in
Overall Width
51 in
Overall Diameter
51 in
Overall Length
5 3/4 in
Blade Material Thickness
26 ga
Mounting Hole Diameter
1/4 in
Fits Fan Diameter
48 in
Rough Opening Length
48 1/2 in
Wire Rope Length
5 3/4 in
Length
5 3/4 in

Details

Item
51"H-W 5.75"L Alu Wall Exhaust Shutter
Shutter Mounting Position
Vertical
Shutter Mounting Location
Wall
Shutter Construction Material
Extruded Aluminum Frame and Galvanized Tie Rods
Shutter Free Area
12.924 sq ft
Shutter Opening Required
48-1/2 in x 48-1/2 in
Blade Material
Aluminum
Max. Velocity
2500 FPM
Type
Gravity Operated, Double Panel
Shutter Overall Square
51" x 51"
Number of Panels
2
Frame Opening A
48 in
Frame Opening B
48 in
Shutter Item
Backdraft Damper / Wall Shutter, Front Flange
For Use With
Vertical Mounted Exhaust Fans
Includes
Prepunched Mounting Holes; Felt edged Counterbalanced Louvers; Weep Holes In Frame Bottom
Mounting Position
Vertical
Free Area
12.9 sq ft
Frame Less Flange
48
Flange Type
Front Flange
Bushing Material
Stainless Steel
Blade Type
Flat Blade
Switch Action
Normally Closed
Series
EASR
Airflow Direction
Horizontal
Maximum Pressure
1 in wc
Maximum Ambient Temperature
180 Degrees F
Counterbalanced
Yes
Frame Material
Aluminum
Damper Application
Backdraft
Blade Orientation
Parallel Blades
Minimum Ambient Temperature
-40 Degrees F
Maximum Air Velocity
2500 fpm
Color
White
Damper Finish
Mill Finish
Blade Seal Material
Felt
Rough Opening Shape
Square
Closure Velocity Rating
2,500 fpm
Closure Type
Gravity
Tie-Rod Material
Galvanized Steel Frame and Tie Rods
Damper Type
Static
Single Acting/Double Acting
Single Acting
Opening Type
Gravity

Description

51 In.H-W 5.75 In.L Alu Wall Exhaust Shutter, Damper Application Backdraft, For Nominal Duct Diameter Not Applicable, Frame Material Aluminum, Number of Panels 2, Maximum Air Velocity 2500 fpm, Overall Height 51 in, Rough Opening Diameter 48 1/2 in, Rough Opening Shape Square, Fits Fan Diameter 48 in, For Duct Shape Not Applicable, Free Area 12.9 sq ft, Overall Width 51 in, Frame Material Thickness 0.8 in, Overall Length 5 3/4 in, Connection Type Not Applicable, Frame Depth 3 in
