  11. 4X723 Pillow Block Bearing

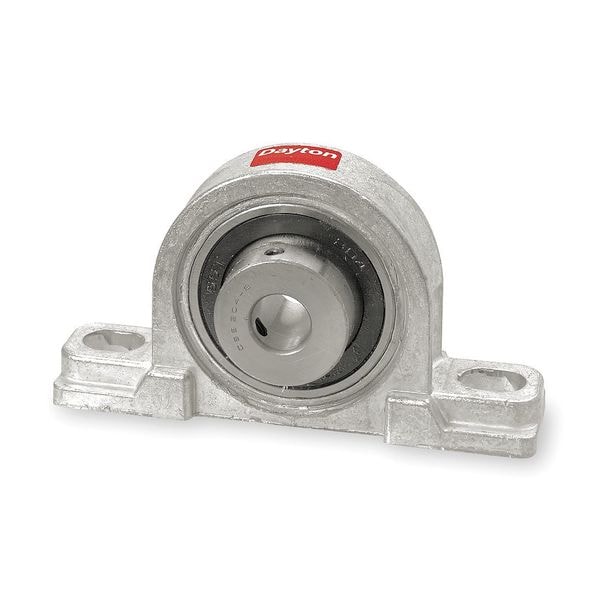

Dayton 4X723 Pillow Block Bearing 4X723 - main

4X723 Pillow Block Bearing

  • Mfr # 4X723

  • Zoro # G3335306

product price: $40.89
/ea

Key Features

Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screws
Bearing Housing Material Type
Zinc Die Cast
Bearing Insert Material
Alloy Steel
Bolt Hole Center-to-Center
3 3/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4X723
Zoro #
G3335306
UPC #
044861012901
Country of Origin
China

Dimensions

Bore Dia.
1/2 in
Dimension D
4 1/4 in
Overall Length
4.25 in
Dimension E
3 3/8 in
Dimension H
7/16 in
Overall Width
1.312 in
Dimension F
7/16 in
Dimension J
3/8 in
Dimension A
1 1/8 in
Bolt Size
3/8 in
Overall Height
2.312 in
Dimension G
1 5/16 in
Dimension B
2 5/16 in
Dimension C
4 1/4 in
Dimension L
1 5/16 in
Mounting Bolt Size
3/8 in
Bore Diameter
1/2 in
Base Height
0.44 in
Center Height
1 1/8 in
Mount Hole Center-to-Center Length
3 3/8 in

Details

Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screws
Bearing Housing Material Type
Zinc Die Cast
Bearing Insert Material
Alloy Steel
Bolt Hole Center-to-Center
3 3/8 in
Mounting Surface to Shaft Center
1 1/8 in
Series
PBDC-BL
Number of Bolts
2
Housing Material
Zinc Die Cast
Static Load Capacity
1,479 lb
Includes
(2) Set Screws
Locking Type
Set Screw
Dynamic Load Capacity
2,877 lb
Item
Pillow Block Bearing
Finish
None
Max. Speed
6,000 RPM
Temp. Range
-30 Degrees to 200 Degrees F
Bearing Locking Type
Set Screw
Minimum Temperature
-30 Degrees F
Mount Type
Bolt-Through
Dynamic Radial Load Capacity
1,479 lbf
Maximum Speed
6,000 RPM
Bore Type
Cylindrical
Static Radial Load Capacity
2,877 lbf
Resistance Properties
Corrosion Resistant
Bearing Material Grade
52100
Seal Material
Buna-N
Features
Pre-Lubricated and Made to ABEC-1 Tolerance, Housing Retains Bearing Securely by Pressing the Lip 360 Degrees Over the Outer Race, Ideal for Applications Requiring Strong Load Support in Limited Mounting Areas, Neoprene Seal Keeps Contaminants Out Allowing for Usage in Wet or Dry Conditions, Solid Zinc Die Cast Housing is Non-Corrosive and Lightweight, Wide Inner Race Locks Securely to the Shaft with Two Set Screws
Closure
Double Sealed
Number of Mount Holes
2
Lubricant Material
NGLI #2 Equivalent
Housing Material Finish
Zinc Plated
System of Measurement
Inch
Maximum Temperature
200 Degrees F
Bearing Material
52100 Chrome Steel

Description

Pillow Block Bearing, Base Height 0.44 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1/2 in, Bore Type Cylindrical, Center Height 1 1/8 in, Closure Double Sealed, Housing Material Zinc Die Cast, Lubricant Material NGLI #2 Equivalent, Maximum Speed 6,000 RPM, Maximum Temperature 200 Degrees F, Minimum Temperature -30 Degrees F, Mount Hole Center-to-Center Length 3 3/8 in, Mount Type Bolt-Through, Number of Mount Holes 2, Overall Height 2.312 in
