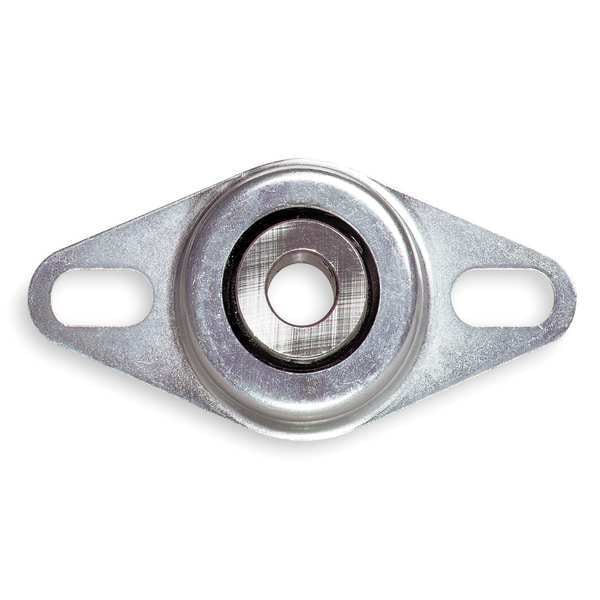

Dayton 4X728 Flange Mount Bearing (2 Bolt) 4X728 - main

4X728 Flange Mount Bearing (2 Bolt)

  • Mfr # 4X728

  • Zoro # G1209223

product price: $27.99
/ea

Key Features

Bearing Insert Type
Radial Ball
Bore Dia.
5/8 in
Shaft Locking Type
Set Screws
Bearing Housing Material Type
Pressed Steel
Bearing Insert Material
Alloy Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4X728
Zoro #
G1209223
UPC #
044861006054
Country of Origin
China

Dimensions

Bore Dia.
5/8 in
Bolt Size
3/8 in
Overall Height
1 in
Dimension F
1 in
Dimension L
1 in
Overall Length
4 in
Dimension E
3 in
Dimension B
4 in
Overall Width
2 in
Dimension J
3/8 in
Dimension D
2 in
Dimension C
3 in
Dimension H
1/16 in
Mount Hole Center-to-Center Height
3 in
Bore Diameter Tolerance
+0.0005 in; +0.001 in
Bore Diameter
5/8 in
Mounting Bolt Size
3/8 in
Mount Hole Center-to-Center Length
3 in
Mount Hole Size
3/8 in

Details

Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screws
Bearing Housing Material Type
Pressed Steel
Bearing Insert Material
Alloy Steel
Bolt Hole Center-to-Center
3 in
Series
F2PS-BL
Temp. Range
-30 Degrees to 200 Degrees F
Finish
Rustproof Plated
Dynamic Load Capacity
2,152 lbf
Housing Material
Steel
Includes
(2) Set Screws
Item
2 Bolt Flange Bearing
Static Load Capacity
1,075 lb
Locking Type
Set Screw
Standards
California Proposition 65, DFARS Compliant, ISO Certified, Reach Certified, RoHS 3 Certified, TOXIC SUBSTANCES CONTROL ACT SECTION
Static Radial Load Capacity
1,075 lbf
Housing Material Grade
52100
Lubrication Openings
One Zirc Fitting
Lubricant Material
NLGI #2 Equivalent
Maximum Temperature
200 Degrees F
Minimum Temperature
-30 Degrees F
Closure
Double Sealed
Housing Material Finish
Rustproof Plated
Maximum Speed
5,000 RPM
Bearing Material Grade
52100
Rolling Element Rows
1
Housing Type
Rhombus
Maximum Misalignment Angle
2 Degrees
Number of Mount Holes
2
Features
Ball Bearing is Pre-Lubricated and Made to ABEC-1 Tolerance, Bearing Inserts are Encased in Non-Conductive, Oil Resistant Rubber Liner Which Corrects upto a 2 Degrees Misalignment While Reducing Vibration and Noise, Neoprene Seal Keeps Contaminants Out Allowing for Usage in Wet or Dry Conditions, One-Piece Steel Housing has a Rust-Proof Plated Finish, Wide Inner Race Locks Securely to the Shaft with Two Set Screws
Resistance Properties
Non-Conductive
Includes Mounting Hardware
Yes
Bore Type
Cylindrical
System of Measurement
Inch
Seal Material
Rubber
Expansion Type
Fixed

Description

2 Bolt Flange Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 5/8 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Steel, Housing Type Rhombus, Lubricant Material NLGI #2 Equivalent, Maximum Speed 5,000 RPM, Maximum Temperature 200 Degrees F, Minimum Temperature -30 Degrees F, Mount Hole Center-to-Center Height 3 in, Number of Mount Holes 2, Overall Height 1 in, Overall Length 4 in, Overall Width 2 in
