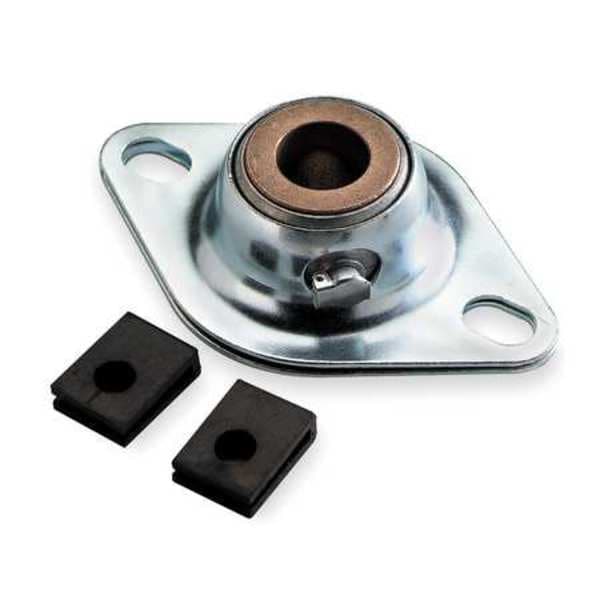

Dayton 4X815 Flange Mount Bearing (2 Bolt) 4X815 - main

4X815 Flange Mount Bearing (2 Bolt)

  • Mfr # 4X815

  • Zoro # G0599121

product price: $24.39
/ea

Key Features

Bearing Insert Type
Plain Sleeve
Bore Dia.
1/2 in
Shaft Locking Type
None
Bearing Housing Material Type
Pressed Steel
Bearing Insert Material
Bronze
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4X815
Zoro #
G0599121
UPC #
044861006290
Country of Origin
United States

Dimensions

Bore Dia.
1/2 in
Bolt Size
7/16 in
Overall Height
1 1/8 in
Dimension E
3 3/8 in
Dimension F
1 1/8 in
Dimension L
1 1/8 in
Dimension C
3 3/8 in
Dimension D
2 3/4 in
Dimension B
4 3/8 in
Overall Width
2 3/4 in
Overall Length
4 3/8 in
Dimension J
7/16 in
Dimension H
1/8 in
Mount Hole Size
7/16 in
Bolt Circle Diameter
0.437 in
Bore Diameter Tolerance
+0.004 in; +0.003 in
Flange Thickness
1/8 in
Bore Diameter
1/2 in
Mount Hole Center-to-Center Length
3 3/8 in
Mount Hole Center-to-Center Height
3.375 in

Details

Bearing Insert Type
Plain Sleeve
Shaft Locking Type
None
Bearing Housing Material Type
Pressed Steel
Bearing Insert Material
Bronze
Bolt Hole Center-to-Center
3 3/8 in
Series
F2PS-BR
Locking Type
None
Item
2 Bolt Flange Bearing
Finish
Rustproof Plated
Bearing Lubrication
20 Weight Non-Detergent Oil
Temp. Range
-5 Degrees to 220 Degrees F
Dynamic Load Capacity
Max. PV 50,000 lb
Includes
(2) Replaceable Rubber Grommets
Housing Material
Steel
Standards
California Proposition 65, DFARS Compliant, ISO Certified, Reach Certified, RoHS 3 Certified, TOXIC SUBSTANCES CONTROL ACT SECTION
Maximum Temperature
220 Degrees F
System of Measurement
Inch
Housing Type
Rhombus
Lubricant Material
20 Weight Non-Detergent Oil
Maximum PV
50,000 lb/sq in-fpm
Housing Material Finish
Rustproof Plated
Includes Mounting Hardware
Yes
Features
Bearing Design Allows for a Vertical or Horizontal Mount as the Spring Lid Oil Cap is Positioned at 45 Degrees , Bearing Units Include Two Replaceable Rubber Grommets that Reduce Noise and Vibration, Porous Flanged Bronze Bearing is Press-Fit in the Sturdy Zinc Die-Cast Sphere with a Felt Strip for Lubrication, Two-Piece Pressed Steel Housing has a Rust-Proof Plated Finish
Number of Mount Holes
2
Minimum Temperature
-5 Degrees F
Expansion Type
Fixed

Description

2 Bolt Flange Bearing, Bearing Insert Material Bronze, Bearing Insert Type Plain Sleeve, Bore Diameter 1/2 in, Expansion Type Fixed, Housing Material Steel, Housing Type Rhombus, Lubricant Material 20 Weight Non-Detergent Oil, Maximum Temperature 220 Degrees F, Minimum Temperature -5 Degrees F, Mount Hole Center-to-Center Height 3.375 in, Number of Mount Holes 2, Overall Height 1 1/8 in, Overall Length 4 3/8 in, Overall Width 2 3/4 in, Shaft Locking Type None, System of Measurement Inch
