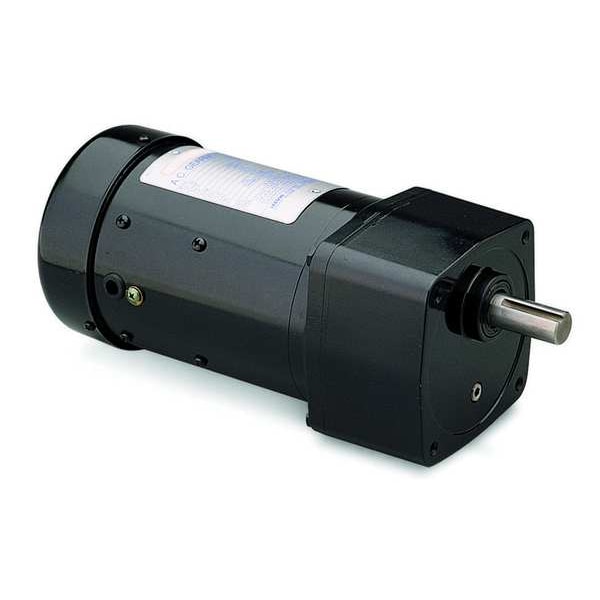

Dayton AC Gearmotor, 270 in-lb Max. Torque, 29 RPM Nameplate RPM, 115/230V AC Voltage, 1 Phase 096030.00 - main

AC Gearmotor, 270 in-lb Max. Torque, 29 RPM Nameplate RPM, 115/230V AC Voltage, 1 Phase

  • Mfr # 096030.00

  • Zoro # G1104004

product price:  $951.99
/ea
Item requires special delivery charges. A $65.00 per item surcharge will be applied.

Key Features

Gearmotor Voltage
115/230V AC
Gearmotor Phase
1
Gearmotor Type
AC Gearmotor
Max. Torque
270 in-lb
Gearmotor Shaft Type
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
096030.00
Zoro #
G1104004
UPC #
190735368985
Country of Origin
United States

Dimensions

Length Less Shaft
11.75 in
Shaft Dia. (Dimension U)
3/4 in
Shaft Length (Dimension V)
1.63 in
Overall Height
4.97 in
Overall Width
4.97 in
Output Shaft Diameter
3/4 in
Output Shaft Length
1 5/8 in

Details

Item
AC Gearmotor
Gearmotor Voltage
115/230V AC
Gearmotor Phase
1
Gearmotor Type
AC Gearmotor
Max. Torque
270 in-lb
Gearmotor Shaft Type
Single
Gearmotor Shaft Orientation
Parallel
Nameplate RPM
29 RPM
Gearmotor Enclosure
Totally Enclosed Fan-Cooled
Gearmotor Rotation
CW/CCW
Gearmotor Brake Type
None
Gearmotor Mounting Position
All Angle
Full Load Amps
2.90/1.45
Standards
CSA Certified, UL Recognized
Input HP
1/6 hp
Thermal Protection
None
Gear Case Material
Die Cast Aluminum
Gear Ratio
58:1
Seals
Heavy Duty, Single Lip, Spring Loaded
Rotation
CW/CCW
Max. Ambient Temp.
40 Degrees C
Hz
60/50 Hz
Capacitor Required
Yes
Gear Type
AGMA Class 9
Mounting
All Position
Gear Material
Precision Machined and Hardened
RPM Range
16 to 30
Voltage
115/230
Overhung Load
327 lb
Phase
Single
Housing
Die Cast Aluminum
Gears
AGMA Class 9, Precision Machined and Hardened
Lubrication
Permanent Heavy Duty Gear Oil
Shaft Orientation
Parallel
Bearings
Needle, Oversized on Output Shaft
Enclosure
TEFC
Motor Type
Permanent Split Capacitor
Application
Inverter Duty
Housing Material
Die Cast Aluminum
AGMA Gear Class
Class 9
Bearing Type
Needle Roller, Oversized on Output Shaft
Maximum Ambient Temperature
104 Degrees F
Input Horsepower
0.167 hp
Mounting Orientation
Any Angle
Operating Voltage
115/230V AC
Frequency
50 Hz, 60 Hz
Seal Type
Heavy Duty, Single Lip, Spring Loaded
Number of Output Shafts
1
Motor Enclosure
Totally Enclosed Fan-Cooled
Nameplate Speed
29 RPM
Mount Type
Any Position
Full Load Current
2.90/1.45 A
Maximum Torque
270 in-lb
Overhung Load Capacity
327 lb
Brake Type
None
Includes Capacitor
Capacitor Included

Description

AC Gearmotor, Number of Output Shafts 1, Motor Type Permanent Split Capacitor, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 29 RPM, Maximum Torque 270 in-lb, Overhung Load Capacity 327 lb, Rotation CW/CCW, Mounting Orientation Any Angle, Operating Voltage 115/230V AC, Gear Ratio 58:1, Brake Type None, Shaft Orientation Parallel, Includes Capacitor Capacitor Included, AGMA Gear Class Class 9, Application Inverter Duty
