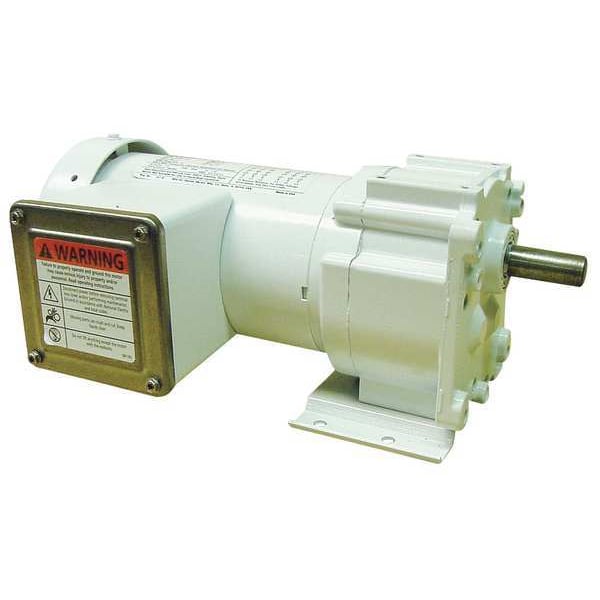

Dayton AC Gearmotor, 391 in-lb Max. Torque, 16 RPM Nameplate RPM, 115/230V AC Voltage, 1 Phase M1145148.00 - main

AC Gearmotor, 391 in-lb Max. Torque, 16 RPM Nameplate RPM, 115/230V AC Voltage, 1 Phase

  • Mfr # M1145148.00

  • Zoro # G3076464

product price:  $1,471.99
/ea
Free Shipping & Returns

Key Features

Gearmotor Voltage
115/230V AC
Gearmotor Phase
1
Gearmotor Type
AC Gearmotor
Max. Torque
391 in-lb
Gearmotor Shaft Type
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
M1145148.00
Zoro #
G3076464
UPC #
190735342602
Country of Origin
United States

Dimensions

Length Less Shaft
11.75 in
Keyway Size Type
3/16 sq in x 1 in
Shaft Dia. (Dimension U)
5/8 in
Shaft Length (Dimension V)
1.5"
Dimension X
3.54"
Keyway Size
3/16" Square x 1"
Height (Dimension O)
3.5 in
Output Shaft Length
1 1/2 in
Output Shaft Diameter
5/8 in
Overall Height
3.5 in

Details

Item
AC Gearmotor
Gearmotor Voltage
115/230V AC
Gearmotor Phase
1
Gearmotor Type
AC Gearmotor
Max. Torque
391 in-lb
Gearmotor Shaft Type
Single
Gearmotor Shaft Orientation
Parallel
Nameplate RPM
16 RPM
Gearmotor Enclosure
Totally Enclosed Fan-Cooled
Gearmotor Rotation
CW/CCW
Gearmotor Brake Type
None
Gearmotor Mounting Position
Horizontal or Vertical Shaft Down
Full Load Amps
2.0/1.0
Standards
UL Recognized
Input HP
1/6 hp
Max. Ambient Temp.
40 Degrees C
Capacitor Required
Yes
Gear Case Material
Die Cast Aluminum
Lubrication
Permanent Heavy Duty Gear Oil
RPM Range
16 to 30
Hz
60/50 Hz
Rotation
CW/CCW
Insulation Class
F
Housing
Rolled Steel
Gear Material
Hardened Steel
Seals
Lip, Stainless Steel w/Spring
Voltage
115/230
No Load RPM
17 RPM
Mounting
All Position Except Shaft Up
Gear Type
Helical (1st Stage), Spur (Subsequent Stages)
Overhung Load
399 lb
Starting Torque
798 in-lb
Service Factor
1
Gears
1st Stage Helical, AGMA Class 9, Hardened Steel, Subsequent Stages Spur
Bearings
Ball On Motor, Roller On Case
Enclosure
TEFC
Shaft
Single Output
Finish
White Epoxy
Thermal Protection
None
Application
Washdown
Gear Ratio
103:1
Phase
Single
Shaft Orientation
Parallel
Motor Type
Permanent Split Capacitor
RPM @ 50 Hz
13
Housing Material
Rolled Steel
Seal Type
Lip, Stainless Steel w/Spring
AGMA Gear Class
Class 9
Overhung Load Capacity
399 lb
Operating Voltage
115/230V AC
Brake Type
None
Mount Type
Horizontal or Vertical Shaft Down
Keyway Type
3/16 sq in x 1 in
Motor Insulation Class
F
Number of Output Shafts
1
Mounting Orientation
Horizontal, Vertical with Shaft Down
Frequency
50 Hz, 60 Hz
Maximum Torque
391 in-lb
Housing Material Finish
White Epoxy
No Load Speed
17 RPM
Full Load Current
2.0/1.0 A
Maximum Ambient Temperature
104 Degrees F
Motor Enclosure
Totally Enclosed Fan-Cooled
Nameplate Speed
16 RPM
Bearing Type
Ball on Motor, Roller on Case
Input Horsepower
0.167 hp
Includes Capacitor
Capacitor Included

Description

AC Gearmotor, Number of Output Shafts 1, Motor Type Permanent Split Capacitor, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 16 RPM, Maximum Torque 391 in-lb, Overhung Load Capacity 399 lb, Rotation CW/CCW, Mounting Orientation Horizontal, Vertical with Shaft Down, Operating Voltage 115/230V AC, Gear Ratio 103:1, Brake Type None, Shaft Orientation Parallel, Includes Capacitor Capacitor Included, Motor Insulation Class F, AGMA Gear Class Class 9, Application Washdown
