  11. AC Gearmotor, 91.7 in-lb Max. Torque, 155 RPM Nameplate RPM, 230V AC Voltage, 3 Phase
Dayton

AC Gearmotor, 91.7 in-lb Max. Torque, 155 RPM Nameplate RPM, 230V AC Voltage, 3 Phase

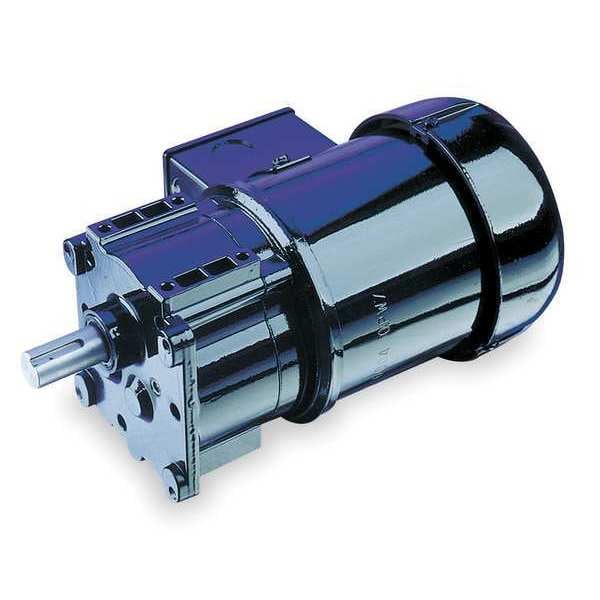

Dayton AC Gearmotor, 91.7 in-lb Max. Torque, 155 RPM Nameplate RPM, 230V AC Voltage, 3 Phase 4ZJ55
Tap to zoom
Hover or click to zoom
$680.19
  • Item: AC Gearmotor
  • Gearmotor Voltage: 230V AC
  • Gearmotor Phase: 3
See full product details
This item ships free.
Total: $680.19

Dayton #4ZJ55 Specifications

  • Item: AC Gearmotor
  • Gearmotor Voltage: 230V AC
  • Gearmotor Phase: 3
  • Gearmotor Type: AC Gearmotor
  • Max. Torque: 91.7 in-lb
  • Gearmotor Shaft Type: Single
  • Gearmotor Shaft Orientation: Parallel
  • Nameplate RPM: 155 RPM
  • Gearmotor Enclosure: Totally Enclosed Fan-Cooled
  • Gearmotor Rotation: CW/CCW
  • Gearmotor Brake Type: None
  • Length Less Shaft: 11 9/32 in
  • Gearmotor Mounting Position: All Angle
  • Full Load Amps: 0.75
  • Standards: UL Recognized, CSA Certified
  • Input HP: 1/4 hp
  • Lubrication: Lifetime Oil Sealed
  • Dimension A: 0.75 in
  • Gears: Hardened Steel, 1st Stage Helical, Subsequent Stages Spur, AGMA Class 9
  • Voltage: 230
  • Max. Ambient Temp.: 40 Degrees C
  • Hz: 60/50 Hz
  • Mounting: All Position
  • Gear Case Material: Die Cast Aluminum
  • Overhung Load: 206 lb
  • RPM Range: 151 to 200
  • Application: Inverter Duty
  • Thermal Protection: Thermostat
  • Gear Ratio: 11:1
  • Rotation: Reversible
  • Housing: Die Cast Aluminum
  • Shaft Orientation: Parallel
  • Gear Material: Hardened Steel
  • Phase: 3
  • Shaft Length (Dimension V): 1.5"
  • Motor Type: 3-Phase
  • Shaft Dia. (Dimension U): 3/4"
  • Gear Type: Helical First Stage/Subsequent Stages Spur/AGMA Class 9
  • Enclosure: TEFC
  • Seals: Lip Type on Input and Output Shaft
  • Country of Origin (subject to change): United States

Description

AC Gearmotor, Gearmotor Voltage 230V AC, 3 Gearmotor Phase, Max. Torque 91.7 in-lb, Single Gearmotor Shaft Type, Gearmotor Shaft Orientation Parallel, Gearmotor Rotation CW/CCW, Nameplate RPM 155 RPM, Totally Enclosed Fan-Cooled Gearmotor Enclosure, All Angle Gearmotor Mounting Position, 60/50 Hz Hz, Overhung Load 206 lb, Input HP 1/4 hp, Gear Ratio 11:1, Full Load Amps 0.75, Thermostat Thermal Protection, Motor Type 3-Phase, Die Cast Aluminum Housing, Inverter Duty
