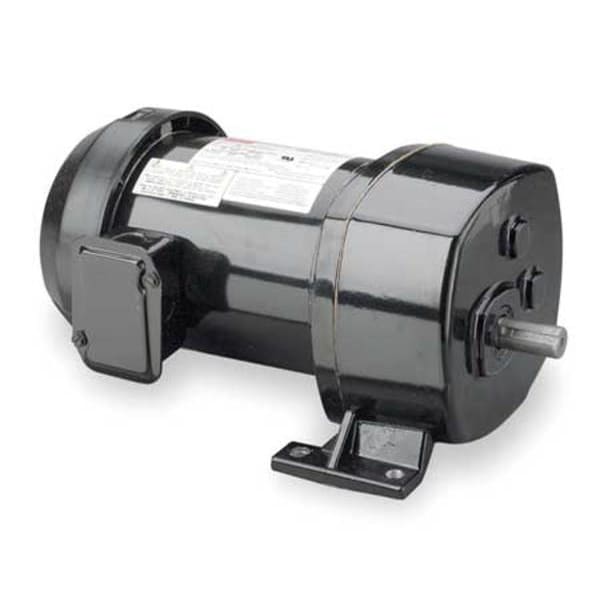

AC Gearmotor, 974 in-lb Max. Torque, 8.5 RPM Nameplate RPM, 115V AC Voltage, 1 Phase
Mfr # 6Z400
Zoro # G2663911
product price:Â $1,106.99
/ea
Free Shipping & Returns
Key Features
Gearmotor Voltage
115V AC
Gearmotor Phase
1
Gearmotor Type
AC Gearmotor
Max. Torque
974 in-lb
Gearmotor Shaft Type
Single
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
6Z400
Zoro #
G2663911
UPC #
190735374177
Country of Origin
United States
Dimensions
Length Less Shaft
12.11 in
Shaft Length (Dimension V)
1.5"
Shaft Dia. (Dimension U)
3/4 in
Overall Height
6.63 in
Overall Width
8.13 in
Output Shaft Length
1 1/2 in
Keyway Depth
1/8 in
Output Shaft Diameter
3/4 in
Mount Hole Center-to-Center Width
7.13 in
Output Shaft Height
3 in
Keyway Width
3/16 in
Mount Hole Center-to-Center Length
2.5 in
Description
AC Gearmotor, Number of Output Shafts 1, Motor Type Split-Phase, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 8.5 RPM, Maximum Torque 974 in-lb, Overhung Load Capacity 325 lb, Rotation CW/CCW, Output Shaft Height 3 in, Mounting Orientation Any Angle, Operating Voltage 115V AC, Inverter Rated No, Gear Ratio 210:1, Brake Type None, Shaft Orientation Parallel, Motor Insulation Class B, Motor Duty Class Continuous, AGMA Gear Class Class 9
