Dayton

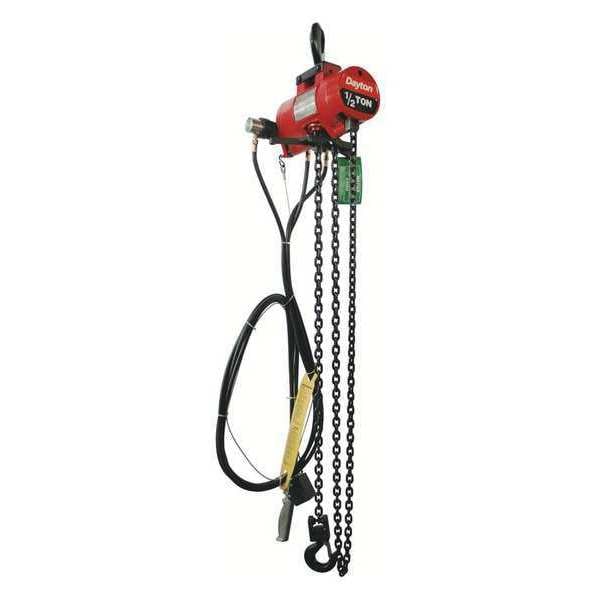

Air Chain Hoist, 1000 lb.Cap., 10 ft.Lift

product price: $3,357.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Finish Paint
  • Overall Width 10-3/16"
  • Brake Shoe Type
  • Load Capacity 1,000 lb
  • Standards ANSI/ASME B30.16
See all product information

Product Information

  • Brand Dayton
  • MFR # 29XL86
  • Zoro # G6153935
  • UPC #
    190735215791
  • Country of Origin China
  • Category Chains

Dimensions

Overall Width 10-3/16"
Housing Length 12 1/8 in
Housing Width 10 3/16 in
Inlet Size 3/8 in NPT
Overall Length 12-1/8"
Body Length 12 1/8 in
Maximum Lifting Length 10 ft
Body Width 10 3/16 in
Minimum Retracted Length 16 21/32 in
Chain Length 11 1/2 ft
Mfr. Warranty Length 1 yr
Body Depth 10 in
Lifting Hook Opening Width 1 1/16 in
Air Inlet Size 3/8 in

Details

Item Air Chain Hoist
Finish Paint
Brake Shoe Type
Load Capacity 1,000 lb
Standards ANSI/ASME B30.16
Hoist Mount Hook Mounted - No Trolley
Min. Between Hooks 15 1/4 in
Trolley Configuration Hook Mounted - No Trolley
Hoist Lift 10 ft
Control Pendant
Air Pressure 90 psi
Lift Speed 45 fpm
Air Consumption 48 scfm
Reeving 1
Color Red
Headroom 15 1/4 in
Maximum Lifting Capacity 1,000 lb
Includes Clutch Clutch Not Included
Overload Protection Included No
Lifting Hook Material Alloy Steel
Body Finish Painted
Maximum Air Pressure 90 psi
Includes Brake Brake Included
Minimum Air Consumption 48 scfm
Air Inlet Type NPT
Chain Finish High Gloss
Chain Grade Grade 80
Maximum Air Consumption 48 scfm
Body Material Cast Aluminum
Fixed Lift Speed 45 fpm
Brake Type Disc
Air Inlet Gender Female
Number of Load Chains 1
Mount Type Hook Mounted - No Trolley
Maximum Pulling Capacity 1,250 lb
Sound Level 92 dBA
Lifting Hook Type Swivel Hook with Safety Latch
Number of Reeves 1
Included Components External Speed Adjustment Screws
Chain Material Alloy Steel
Minimum Air Pressure 90 psi
Controls Pendant

Description

Air Chain Hoist, Mount Type Hook Mounted - No Trolley, Maximum Lifting Capacity 1,000 lb, Fixed Lift Speed 45 fpm, Air Inlet Type NPT, Controls Pendant, For Minimum Beam Flange Width Not Applicable, For Maximum Beam Flange Width Not Applicable, Headroom 15 1/4 in, Maximum Air Pressure 90 psi, Maximum Lifting Length 10 ft, Maximum Air Consumption 48 scfm, Air Inlet Gender Female, Air Inlet Size 3/8 in, Body Depth 10 in, Body Length 12 1/8 in, Body Material Cast Aluminum, Body Width 10 3/16 in
