Dayton

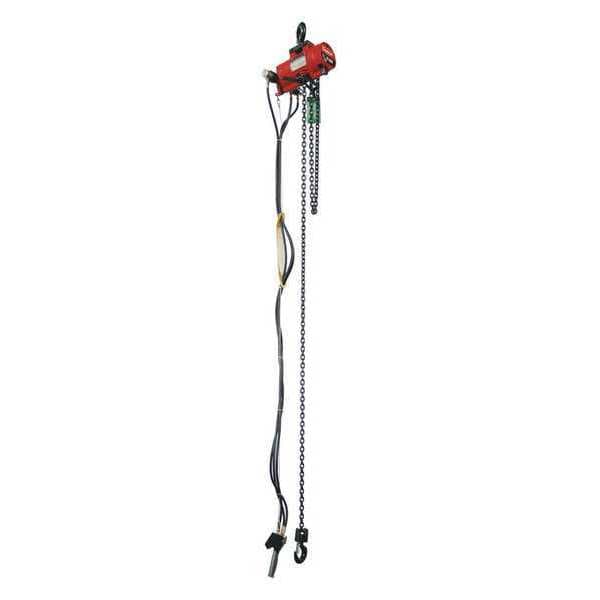

Air Chain Hoist, 1000 lb.Cap., 20 ft.Lift

product price: $3,357.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Finish Paint
  • Overall Width 10-3/16"
  • Brake Shoe Type
  • Control Pendant
  • Air Consumption 48 scfm
See all product information

Product Information

  • Brand Dayton
  • MFR # 29XL87
  • Zoro # G6135972
  • UPC #
    190735215807
  • Country of Origin China
  • Category Chains

Dimensions

Overall Width 10-3/16"
Housing Width 10 3/16 in
Inlet Size 3/8 in NPT
Housing Length 12 1/8 in
Overall Length 12-1/8"
Maximum Lifting Length 20 ft
Chain Length 22 11/16 ft
Air Inlet Size 3/8 in
Body Length 12 1/8 in
Lifting Hook Opening Width 1 1/16 in
Body Depth 10 in
Body Width 10 3/16 in
Mfr. Warranty Length 1 yr
Minimum Retracted Length 16 23/32 in

Details

Item Air Chain Hoist
Finish Paint
Brake Shoe Type
Control Pendant
Air Consumption 48 scfm
Lift Speed 45 fpm
Reeving 1
Load Capacity 1,000 lb
Min. Between Hooks 15 1/4 in
Trolley Configuration Hook Mounted - No Trolley
Hoist Mount Hook Mounted - No Trolley
Hoist Lift 20 ft
Air Pressure 90 psi
Color Red
Standards ANSI/ASME B30.16
Headroom 15 1/4 in
Minimum Air Consumption 48 scfm
Maximum Lifting Capacity 1,000 lb
Minimum Air Pressure 90 psi
Included Components External Speed Adjustment Screws
Includes Brake Brake Included
Air Inlet Type NPT
Mount Type Hook Mounted - No Trolley
Maximum Air Consumption 48 scfm
Brake Type Disc
Lifting Hook Type Swivel Hook with Safety Latch
Body Finish Painted
Maximum Pulling Capacity 1,250 lb
Chain Finish High Gloss
Lifting Hook Material Alloy Steel
Controls Pendant
Fixed Lift Speed 45 fpm
Chain Grade Grade 80
Number of Load Chains 1
Overload Protection Included No
Maximum Air Pressure 90 psi
Sound Level 92 dBA
Includes Clutch Clutch Not Included
Chain Material Alloy Steel
Number of Reeves 1
Body Material Cast Aluminum
Air Inlet Gender Female

Description

Air Chain Hoist, Mount Type Hook Mounted - No Trolley, Maximum Lifting Capacity 1,000 lb, Fixed Lift Speed 45 fpm, Air Inlet Type NPT, Controls Pendant, For Minimum Beam Flange Width Not Applicable, For Maximum Beam Flange Width Not Applicable, Headroom 15 1/4 in, Maximum Air Pressure 90 psi, Maximum Lifting Length 20 ft, Maximum Air Consumption 48 scfm, Air Inlet Gender Female, Air Inlet Size 3/8 in, Body Depth 10 in, Body Length 12 1/8 in, Body Material Cast Aluminum, Body Width 10 3/16 in
