This item is Discontinued.

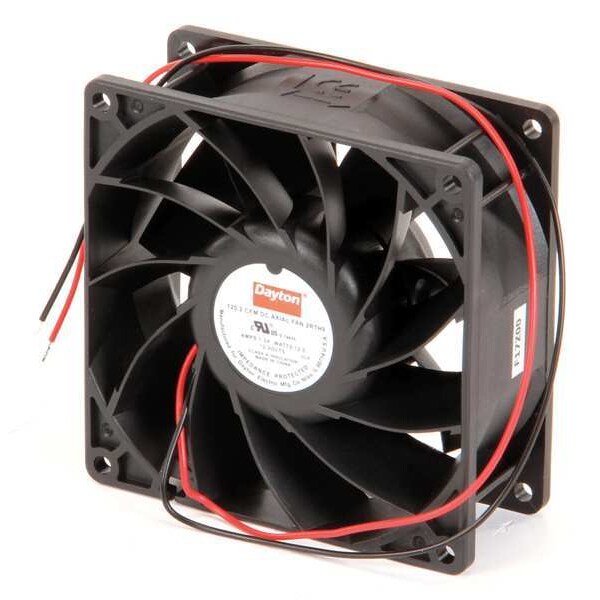

Dayton Axial Fan, Square, 12V DC, - Phase, 120.2 cfm, 3 5/8 in W. 2RTH9

Axial Fan, Square, 12V DC, - Phase, 120.2 cfm, 3 5/8 in W. (Discontinued)

  • Mfr # 2RTH9
  • Zoro # G0564566
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2RTH9
Zoro #
G0564566
UPC #
190735230312
Country of Origin
China

Dimensions

Depth
1 1/2 in
Height
3 5/8 in
Width
3 5/8 in
Fan Width
3-5/8"
Fan Width
3-5/8"
Fan Depth
1-1/2"
Fan Height
3-5/8"

Details

Blade Material
Polybutylene
CFM @ 0.000-In. SP
75 cfm
Housing Material
PBT Plastic
Shape
Square
Watts
12.5 W
Voltage
12V DC
Item
Axial Fan
Fan Voltage
12VDC
Fan Item
Axial Fan
Fan dBA
57.6
Max. Ambient Temp.
158 Degrees F
dBA
57.6
Electrical Connections
12" Leads
Fan Watts
12.5
Bearings
Ball
Mounting Eye O.C.
3 1/4 in
Fan Shape
Square
Amps
1.04 A
Mounting Eye O.C. - Fans
3-1/4"
Motor Insulation
Class A
Thermal Protection
Impedance
Standards
CE Certified and RoHS Compliant, UL Component Recognized for US and Canada
Housing Finish
Black Painted
Mounting Position
Vertical or Horizontal
Electrical Connection - Fans
12" Leads
Fan RPM
4900
IP Rating
IP20
Bearing Type
Ball
Motor Design
Brushless DC
Color
Black
RPM
4900 RPM
Environmental Applications
Equipment Cooling

Description

Standard Square Axial Fan, Fan Shape Square, Mounting Eye O.C. 3 1/4 in, Height 3 5/8 in, Depth 1 1/2 in, Width 3 5/8 in, CFM @ 0.000-In. SP 75 cfm, Watts 12.5 W, Voltage 12V DC, - Hz, 1.04 A Amps, Electrical Connection - Fans Lead Wires, Sound Level 57.6, IP Rating IP20, Mounting Position Vertical or Horizontal, Bearing Type Ball, 4900 RPM RPM, Motor Design Brushless DC, Motor Insulation Class A, Thermal Protection Impedance, Max. Ambient Temp. 158 Degrees F, Blade Material Polybutylene
