Shop DAYTON

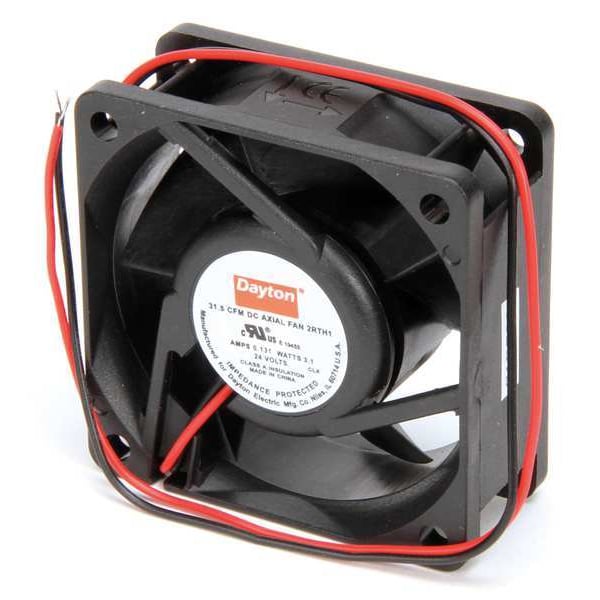

Axial Fan, Square, 24V DC, - Phase, PBT Plastic, 2 3/8 in W.

  • Mfr # 2RTH1

  • Zoro # G1911664

product price:  $17.59
/ea

Key Features

Blade Material
Polybutylene
CFM @ 0.000-In. SP
31.5 cfm
Depth
1 in
Height
2 3/8 in
Housing Material
Polybutylene Terephthalate
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
2RTH1
Zoro #
G1911664
UPC #
190735230237
Country of Origin
China

Dimensions

Depth
1 in
Height
2 3/8 in
Width
2 3/8 in
Fan Width
2-3/8"
Fan Depth
1"
Fan Width
2-3/8"
Fan Height
2-3/8"
Lead Length
11 13/16 in

Details

Blade Material
Polybutylene
CFM @ 0.000-In. SP
31.5 cfm
Housing Material
Polybutylene Terephthalate
Shape
Square
Watts
3.1 W
Voltage
24V DC
Fan Voltage
24VDC
dBA
41
Max. Ambient Temp.
158 Degrees F
Standards
CE Certified and RoHS Compliant, UL Component Recognized for US and Canada
Electrical Connection - Fans
Lead Wires
Fan Shape
Square
Item
Axial Fan
Fan dBA
41
Amps
0.13 A
Mounting Position
Horizontal/Vertical
Mounting Eye O.C. - Fans
1-15/16"
Electrical Connections
12" Leads
Thermal Protection
Yes
Motor Insulation
A
Fan Item
Axial Fan
Bearings
Zero Friction Air
Fan Watts
3.1
Fan RPM
6100
Mounting Eye O.C.
2 in
Hz
60/50 Hz
Housing Finish
Black Painted
IP Rating
IP20
Environmental Applications
Equipment Cooling
Motor Design
DC
Bearing Type
Zero Friction Air
RPM
6,100 RPM
Color
Black
Includes Guard
No
Sound Level
41 dBA
Sound Level - Minimum
41 dBA
Removable Base
Permanently Lubricated
Includes Filter
No
Environment Rating
Dry

Description

Standard Square Axial Fan, Fan Shape Square, Mounting Eye O.C. 2 in, Height 2 3/8 in, Depth 1 in, Width 2 3/8 in, CFM @ 0.000-In. SP 31.5 cfm, Watts 3.1 W, Voltage 24V DC, - Hz, 0.13 A Amps, Electrical Connection - Fans Lead Wires, Sound Level 41, IP Rating IP20, Mounting Position Vertical or Horizontal, Bearing Type Zero Friction Air, 6100 RPM RPM, Motor Design DC, Motor Insulation Class A, Thermal Protection Impedance, Max. Ambient Temp. 158 Degrees F, Blade Material Polybutylene
