Dayton

Ball Bushing Bearing, Open, Bore 3/4 In

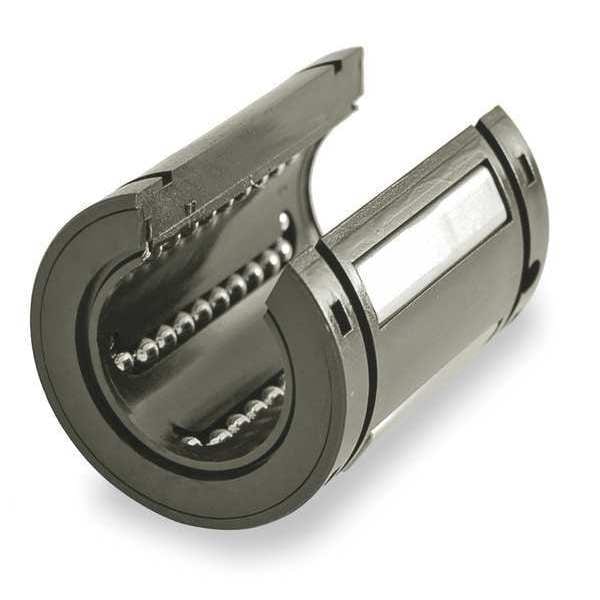

Dayton Ball Bushing Bearing, Open, Bore 3/4 In 2CNL1
Hover or click to zoom Tap to zoom
$48.69
  • Item: Linear Ball Bearing
  • Type: Open
  • Bore Dia.: 0.75 in
See full product details
Orders over $75 ship free.
Total: $48.69

Dayton #2CNL1 Specifications

  • Item: Linear Ball Bearing
  • Type: Open
  • Bore Dia.: 0.75 in
  • Outside Dia.: 1.25 in
  • Material: Stainless Steel/Polymer Cage
  • Dynamic Load Capacity (Lb.): -
  • Self-Alignment: Yes
  • For Use With: Support and Feather Rails
  • Dimension D1: 1.176 in
  • Dimension H3: -
  • Dimension J: -
  • Between Grooves (In.): 1.170/1.154
  • Retention Hole Dia. (In.): 0.136 in
  • Dimension Y: -
  • Steady State Speed: 5000 in/min
  • Dimension B: 1.170/1.154 in
  • Dimension HA: -
  • Dimension XZ: -
  • Slot Width (In.): 0.438 in
  • Dimension L: 1.625 in
  • Inside Dia. Tolerance: +/-.0004
  • Static Load Capacity (Lb.): 600
  • Dimension HB: -
  • Retention Hole Location: 0.125
  • Dimension D (In.): 1.25 in
  • Dimension X: -
  • Dimension H (In.): -
  • Dimension W: 0.056 in
  • Dimension S (In.): -
  • Dimension H1 (In.): -
  • Dimension H1: -
  • Dimension H2: -
  • Slot Angle (Degrees): 60
  • Dimension V (In.): -
  • Temp. Range (F): 0 - 176
  • Outside Dia. Tolerance: +/-0.00065
  • Length (In.): 1.625 in
  • Country of Origin (subject to change): China

Description

Inside Dia. Tolerance +/-.0004, Outside Dia. Tolerance +/-0.00065, Slot Width (In.) 0.438 in, Slot Angle (Degrees) 60 Degrees , Retention Hole Location 0.125, Length (In.) 1.625 in, Static Load Capacity (Lb.) 600 lb, Temp. Range (F) 0 - 176, Stainless Steel/Polymer Cage Material, Retention Hole Dia. (In.) 0.136 in, Between Grooves (In.) 1.170/1.154, For Use With Support and Feather Rails
