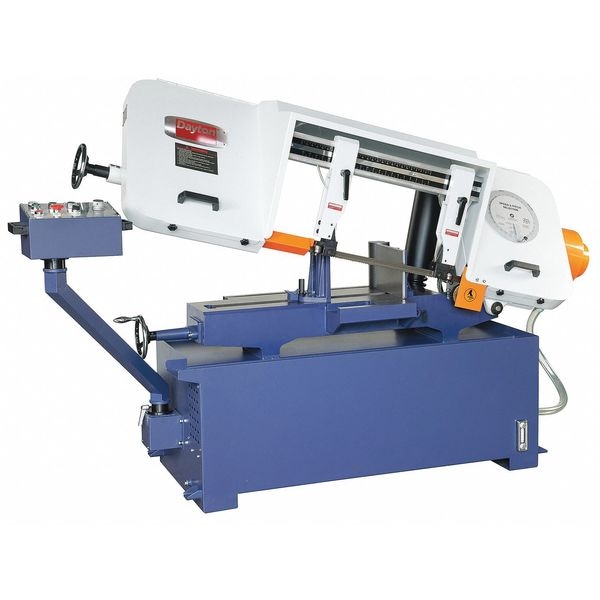

Dayton Band Saw, 12" x 17-3/4" Rectangle, 12" Round, 12 in Square, 460V AC V, 3 hp HP 499F37 - main

Band Saw, 12" x 17-3/4" Rectangle, 12" Round, 12 in Square, 460V AC V, 3 hp HP

  • Mfr # 499F37

  • Zoro # G4237640

product price:  $20,307.99
/ea
Additional $415.00 delivery surcharge applies per item.
See details

Key Features

Cutting Capacity Rectangle
12" x 17-3/4"
Cutting Capacity Round
12"
Cutting Capacity Square
12 in
Voltage
460V AC
HP
3 hp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
499F37
Zoro #
G4237640
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Max. Thickness of Cut
12"
Max. Blade Length
156 1/2 in
Min. Blade Width
1 in
Overall Width
87 13/16 in
Blade Thickness
0.035 in
Overall Depth
53 in
Max. Blade Width
1 in
Blade Wheels Dia.
14 in
Overall Height
53 3/16 in
Min. Blade Length
154 1/2 in
Blade Length
13 ft

Details

Item
Band Saw
Cutting Capacity Rectangle
12" x 17-3/4"
Cutting Capacity Round
12"
Cutting Capacity Square
12 in
Voltage
460V AC
HP
3 hp
Speeds
85 to 370 fpm
Miter Capacity
0 Degrees to 45 Degrees
Amps AC
4.3 A
Corded/Cordless
Corded
Phase
3
Features
Heavy-Duty Transmission, Hydraulic Down Feed Control, Rapid Action Vise for Miter Cuts, Semi-Automatic Cycle, Swing Away Control Panel, Tungsten Carbide and Precision Ball Bearing Blade Guides, Variable Speed Drive
Hz
60 Hz
Includes
Cast Iron Adjustable Guide Arms; Blade Speed and Pitch Selector; Coolant System
SFPM Range
85 to 370 SFPM
Rectangular Cutting Capacity - Horizontal
12 in x 18 1/2 in
Round Cutting Capacity - Horizontal
12 in
Number of Speed Settings
Continuous
Miter Angle Range
0 Degrees to 45 Degrees
Band Saw Type
Horizontal
Band Saw Operation
Semi-Automatic
Material Application
Metal
Power Source
Corded
Current
4.3
Variable Speed
Yes

Description

Band Saw, Band Saw Type Horizontal, Band Saw Operation Semi-Automatic, Voltage 460V AC, Phase 3, Rectangular Cutting Capacity - Horizontal 12 in x 18 1/2 in, Round Cutting Capacity - Horizontal 12 in, SFPM Range 85 to 370 SFPM, Miter Angle Range 0 Degrees to 45 Degrees , Number of Speed Settings Continuous, Material Application Metal, Blade Length 13 ft, Max. Blade Width 1 in, Min. Blade Width 1 in, Cutting Capacity Square 12 in, Power Source Corded, Blade Thickness 0.035 in
