Shop DAYTON

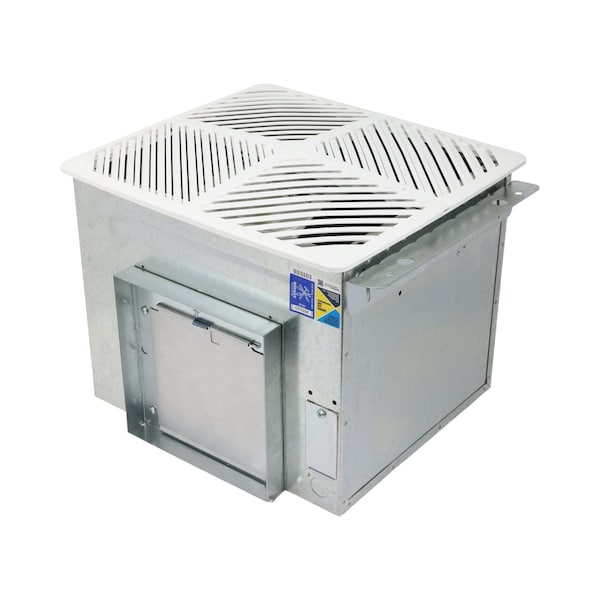

Bath Exhaust Fan, 274 cfm cfm, 8 in Duct Dia., 115 V, With Light

  • Mfr # 60RG36

  • Zoro # G403541497

product price:
$
265.99
/ea
Free Shipping & Returns

Key Features

Voltage
115 V
CFM @ 0.100-In. SP
274 cfm
Includes
Acoustic Insulation, Grille, Mounting Brackets, Aluminum Backdraft Damper
Phase
1
Watts
67 W
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
60RG36
Zoro #
G403541497
UPC #
-
Country of Origin
United States

Dimensions

Duct Dia.
8 in
Housing Height
11 1/4 in
Grille Width
13 1/2 in
Housing Width
11 7/8 in
Grille Length
15 in
Housing Length
14 in
Overall Height
11 1/4 in
For Cut-Out Length
14 1/4 in
Duct Width
8 in
For Cut-Out Width
12 1/8 in
Duct Height
8 in
Profile Height Family
High
Overall Width
11 7/8 in
Overall Depth
14 in

Details

Voltage
115 V
CFM @ 0.100-In. SP
274 cfm
Includes
Acoustic Insulation, Grille, Mounting Brackets, Aluminum Backdraft Damper
Phase
1
Watts
67 W
Amps
0.56
Housing Material
Steel
Number of Speeds
1
Sones @ 0.100-In. SP @ 5 Ft.
2.5
Lighted
Without Light
Heater
Without Heater
Motion Sensing
No
Profile
High
Nominal RPM
1000 RPM
Night-Light
No
Item
Bath Exhaust Fan
Grille Color
White
Motor Insulation
Class B
Hz
60 Hz
Discharge
Horizontal or Vertical
Green Certification or Other Recognition
ENERGY STAR(R) Certified
Grille Material
Polystyrene
Humidity Sensing
No
Standards
AMCA, cUL Listed, UL Listed
Requires
Ductwork
Includes Grill
Yes
Vent Design
Ducted
Exhaust Airflow @ 0.100 in SP
274 cfm
Nameplate Voltage
115V AC
Noise Level @ 0.125 in SP @ 5 ft
2.5 sones
Noise Level @ 0.250 in SP @ 5 ft
3 sones
Noise Level @ 0.000 in SP @ 5 ft
2.5 sones
Frequency
60 Hz
Grille Finish
Polystyrene
Discharge Direction
Horizontal and Vertical
Blower Wheel Curve
Forward
Duct Shape
Rectangular
Blower Wheel Material
Polypropylene
Exhaust Airflow @ 0.000 in SP
294 cfm
Sensor Type
None
Housing Finish
Galvanized
Includes Light Bulbs
No
Noise Level @ 0.100 in SP @ 5 ft
2.5 sones
Full Load Current
0.56 A
Motor Speed
1,100 RPM
Exhaust Airflow @ 0.250 in SP
250 cfm
Wattage
21.8 W
Maximum Noise Level
5 sones
Mounting Orientation
Horizontal
Maximum Airflow
294 cfm

Description

Bath Exhaust Fan, Discharge Direction Horizontal and Vertical, Duct Shape Rectangular, Housing Finish Galvanized, Housing Material Steel, Heater Without Heater, Includes Acoustic Insulation, Grille, Mounting Brackets, Aluminum Backdraft Damper, Mounting Location Ceiling, Maximum Airflow 294 cfm, Exhaust Airflow @ 0.100 in SP 274 cfm, Exhaust Airflow @ 0.000 in SP 294 cfm, Maximum Noise Level 5 sones, Noise Level @ 0.100 in SP @ 5 ft 2.5 sones, Number of Speeds 1, Overall Depth 14 in

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
This item has been restricted from sale in the following states: CA, MA, NJ
