Shop DAYTON

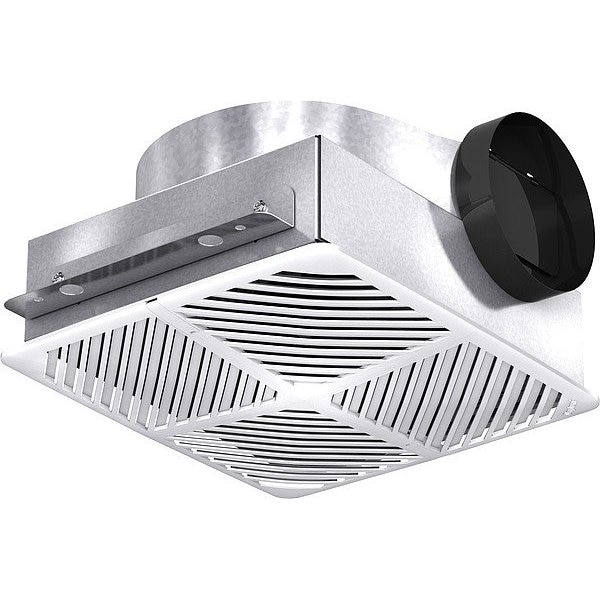

Bath Exhaust Fan, 81 cfm cfm, 6 in Duct Dia., 115 V, With Light

  • Mfr # 60RG31

  • Zoro # G203541543

product price:
$
157.99
/ea
Free Shipping & Returns

Key Features

Voltage
115 V
CFM @ 0.100-In. SP
81 cfm
Includes
Acoustic Insulation, Grille, Mounting Brackets, Aluminum Backdraft Damper
Phase
1
Watts
18.6 W
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
60RG31
Zoro #
G203541543
UPC #
-
Country of Origin
United States

Dimensions

Duct Dia.
6 in
Housing Width
11 1/2 in
Grille Length
15 in
Housing Length
13 7/8 in
Housing Height
7 in
Grille Width
13 1/2 in
Overall Height
7 in
Overall Width
11 1/2 in
Profile Height Family
Medium
For Cut-Out Width
11 3/4 in
Duct Diameter
6 in
Overall Depth
13 7/8 in
For Cut-Out Length
14 1/8 in

Details

Voltage
115 V
CFM @ 0.100-In. SP
81 cfm
Includes
Acoustic Insulation, Grille, Mounting Brackets, Aluminum Backdraft Damper
Phase
1
Watts
18.6 W
Amps
0.16
Housing Material
Steel
Number of Speeds
1
Sones @ 0.100-In. SP @ 5 Ft.
0.9
Lighted
Without Light
Heater
Without Heater
Motion Sensing
No
Profile
Medium
Grille Material
Polystyrene
Motor Insulation
Class B
Humidity Sensing
No
Discharge
Horizontal
Nominal RPM
900 RPM
Requires
Ductwork
Green Certification or Other Recognition
ENERGY STAR(R) Certified
Grille Color
White
Standards
AMCA, cUL Listed, UL Listed
Night-Light
No
Item
Bath Exhaust Fan
Hz
60 Hz
Noise Level @ 0.125 in SP @ 5 ft
0.9 sones
Exhaust Airflow @ 0.000 in SP
94 cfm
Includes Light Bulbs
No
Duct Shape
Round
Frequency
60 Hz
Grille Finish
Polystyrene
Blower Wheel Material
Polypropylene
Sensor Type
None
Exhaust Airflow @ 0.250 in SP
62 cfm
Motor Speed
900 RPM
Noise Level @ 0.250 in SP @ 5 ft
1.3 sones
Wattage
4.5 W
Discharge Direction
Horizontal
Noise Level @ 0.000 in SP @ 5 ft
0.8 sones
Includes Grill
Yes
Exhaust Airflow @ 0.100 in SP
81 cfm
Blower Wheel Curve
Forward
Full Load Current
0.16 A
Housing Finish
Galvanized
Noise Level @ 0.100 in SP @ 5 ft
0.9 sones
Nameplate Voltage
115V AC
Maximum Noise Level
2 sones
Vent Design
Ducted
Maximum Airflow
94 cfm
Mounting Orientation
Horizontal

Description

Bath Exhaust Fan, Discharge Direction Horizontal, Duct Diameter 6 in, Duct Shape Round, Housing Finish Galvanized, Housing Material Steel, Heater Without Heater, Includes Acoustic Insulation, Grille, Mounting Brackets, Aluminum Backdraft Damper, Mounting Location Ceiling, Maximum Airflow 94 cfm, Exhaust Airflow @ 0.100 in SP 81 cfm, Exhaust Airflow @ 0.000 in SP 94 cfm, Maximum Noise Level 2 sones, Noise Level @ 0.100 in SP @ 5 ft 0.9 sones, Number of Speeds 1, Overall Depth 13 7/8 in

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
This item has been restricted from sale in the following states: MA, NJ
