  11. Bench Grinder, 6 in Max. Wheel Dia, 60 Grinding Wheel Grit

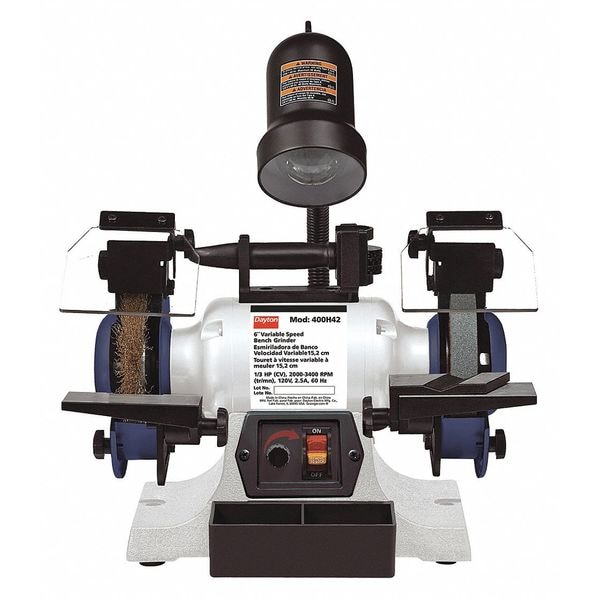

Dayton Bench Grinder, 6 in Max. Wheel Dia, 60 Grinding Wheel Grit 400H42 - main

Bench Grinder, 6 in Max. Wheel Dia, 60 Grinding Wheel Grit

  • Mfr # 400H42

  • Zoro # G2757629

product price: $242.99
/ea
Free Shipping & Returns

Key Features

For Max. Wheel Dia.
6 in
Finishing Wheel Width
3/4"
Finishing Function
Grinding
Max. RPM
3400
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
400H42
Zoro #
G2757629
UPC #
-
Country of Origin
China

Dimensions

For Max. Wheel Dia.
6 in
Finishing Wheel Width
3/4"
Arbor Hole Size
1/2"
Overall Length
15 in
Finishing Wheel Diameter
6"
Overall Height
9 13/16 in
Overall Width
8 1/2 in
Arbor Size
1/2 in
Arbor Diameter
1/2 in
For Wheel Diameter - Maximum
6 in
Wheel Diameter
6 in
For Wheel Thickness - Maximum
3/4 in
Wheel Flange Diameter
2 3/8 in
Power Cord Length
6 ft
Mounting Holes - Diameter
1/2 in
Base Footprint -Width
6 11/16 in
Power Cord - Wire Size
18 AWG
Base Footprint -Depth
11 1/4 in

Details

Item
Bench Grinder
Finishing Function
Grinding
Max. RPM
3400
Phase
Single
Amps
2.5
Standards
CSA Certified
Grinding Wheel Grit
60
Voltage
120V AC
HP
1/3
Wheels Center-Center
10-3/4"
Grit
60
Light
Yes
Hz
60
Dust Collection
No
Wheel Material
Aluminum Oxide
Includes
(1) Grinding Wheel, (1) Grooved Tool Rest for Drill Bit Sharpening, (1) Quench Tray, (1) Wheel Dresser, (1) Wire Wheel, (2) Eye Shields, (2) Spark Arrestors, (2) Tool Rests
Frequency
60 Hz
Lights Included
Yes
Horsepower
1/3 hp
Wheel Distance
11 1/16 in
Dust Management
No Dust Management
Current
2.5 A
Max. Wheel Speed
3,400 RPM
Application
Grinding
Number of Speed Settings
Variable
Includes Dust Management
No Dust Management
Motor Speed - Minimum
2,000 RPM
Includes Lights
Light Included
Motor Speed - Maximum
3,400 RPM
Motor Type
Induction
Arbor Thread
M12
Power Cord - NEMA Plug Configuration
5-15P
Tool Weight
27.7 lb
Switch Type
Locking Rocker
Includes Ground
Grounded
Base Material
Cast Iron
Sealed Switch
No Dust Protection
Arbor Material
Steel
End Shield Material
Cast Aluminum
Motor Housing Material
Steel
Tool Rest Material
Cast Aluminum
Material Compatibility
Metals
Power Cord Designation
SJT
Wattage
250 W
Manufacturer Warranty
1 yr
Sound Level
75.2 dB
Power Cord - Number of Wires
3
Eye Shield Material
PC
Mounting Holes - Center to Center Distance
10 in
Bearing Type
Ball Bearing

Description

Bench Grinder, For Max. Wheel Dia. 6 in, Grinding Wheel Grit 60, Arbor Size 1/2 in, Dust Management No Dust Management, Lights Included Yes, Application Grinding, Bearing Type Ball Bearing
