  11. Bench Grinder with Stand, 12 in Max. Wheel Dia, 2 in Max. Wheel Thickness, 36/60 Grinding Wheel Grit

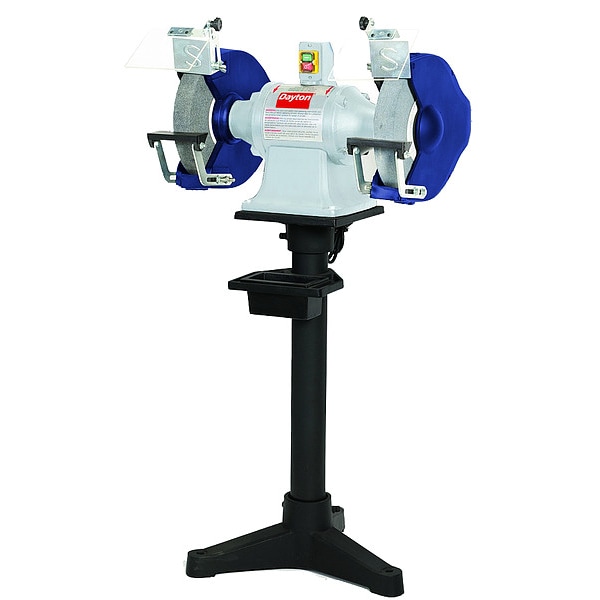

Dayton Bench Grinder with Stand, 12 in Max. Wheel Dia, 2 in Max. Wheel Thickness, 36/60 Grinding Wheel Grit 1FYX2 - main

Bench Grinder with Stand, 12 in Max. Wheel Dia, 2 in Max. Wheel Thickness, 36/60 Grinding Wheel Grit

  • Mfr # 1FYX2

  • Zoro # G3077496

product price: $1,592.99
/ea
Item requires special delivery charges. A $115.00 per item surcharge will be applied.

Key Features

For Max. Wheel Dia.
12 in
Finishing Wheel Width
2"
Finishing Function
Grinding
Max. RPM
1800
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1FYX2
Zoro #
G3077496
UPC #
190735141793
Country of Origin
Multiple

Dimensions

For Max. Wheel Dia.
12 in
Finishing Wheel Width
2"
Arbor Hole Size
1-1/4"
For Max. Wheel Thickness
2 in
Wheel Width
2"
Exhaust Port Size
2-1/2"
Arbor Size
1 1/4 in
Finishing Wheel Diameter
12"
Wheel Dia.
12"
Overall Height
51 in
Overall Length
16 1/2 in
Overall Width
23 in
Spindle Thread Size
M24x2
Cord Length
6 ft
Dust Collection Port Size
2 1/2 in
Base Footprint -Depth
10 1/8 in
Wheel Flange Diameter
4 3/4 in
Power Cord Length
6 ft
Arbor Diameter
1 1/4 in
Wheel Diameter
12 in
Power Cord - Wire Size
14 AWG
Mounting Holes - Diameter
7/16 in
For Wheel Thickness - Maximum
2 in
Base Footprint -Width
10 7/8 in
For Wheel Diameter - Maximum
12 in

Details

Item
Bench Grinder with Stand
Finishing Function
Grinding
Max. RPM
1800
Phase
Single
Amps
10
Standards
CSA Certified
Grinding Wheel Grit
36/60
Voltage
240V AC
HP
2
Hz
60
Wheels Center-Center
21-3/4"
Light
No
Dust Collection
Yes
Includes
(2) Adjustable Eye Shields with Hurricane Bolts, (2) Grinding Wheels, (2) Ratcheting Tool Rests, (2) Spark Arrestors, 36 + 60 Grit., 6 ft Cord, Single Point Dust Collection, Tool Stand with Quench Tray
Wheel Material
Aluminum Oxide
No Load RPM
1800
Grit
36 and 60
Features
Includes Stand
Application
Deburring, Grinding, Sharpening
Housing Material
Aluminum, Steel
For Use On
Alloy and Carbon Metals
Horsepower
2 hp
Switch Type
Push Button
Electrical Protection
Grounded
Max. Wheel Speed
1,725 RPM
Dust Management
Dust Management Included
Min. Wheel Speed
1,725 RPM
Bearing Type
Ball Bearing
Number of Speed Settings
1
Wheel Distance
21 3/4 in
Number of Pieces
1
Lights Included
No
Plug Type
Wire Leads
Dust Sealed Switch
No
Tool Weight
286 lb
Duty
Heavy Duty
Current
10 A
Speed Setting
Single Speed
Electrical Connection
Wire Lead
Frequency
60 Hz
Max. Disc Speed
1,725 RPM
Wattage
1,470 W
Tool Rest Material
Cast Iron
Power Cord Designation
SJT
Power Cord - Number of Wires
3
Sealed Switch
No Dust Protection
Sound Level
75 dB
Arbor Material
Steel
Power Cord - NEMA Plug Configuration
No Plug
Minimum Extraction Volume
400 cfm
Motor Type
Totally Enclosed Air-Over
Manufacturer Warranty
1 Yr
Material Compatibility
Alloys, Carbon Metals
Includes Lights
Light Not Included
Eye Shield Material
Polycarbonate
Includes Ground
Grounded
Arbor Thread
M24x2
End Shield Material
Cast Iron
Motor Speed - Maximum
1,725 RPM
Motor Housing Material
Aluminum; Steel
Includes Dust Management
Dust Management Included
Base Material
Cast Iron

Description

Bench Grinder with Stand, For Max. Wheel Dia. 12 in, For Max. Wheel Thickness 2 in, Grinding Wheel Grit 36/60, Speed Setting Single Speed, Arbor Size 1 1/4 in, Dust Management Dust Management Included, Lights Included No, Application Deburring, Grinding, Sharpening, Bearing Type Ball Bearing
