Shop DAYTON

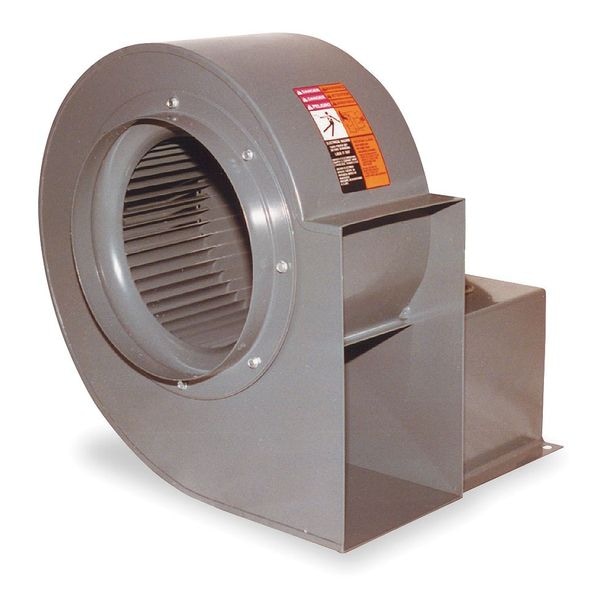

Blower, 10 5/8 In

  • Mfr # 2C890

  • Zoro # G1484061

product price:  $595.99
/ea
Free Shipping & Returns

Key Features

Type
Less Motor
Max. Inlet Temp. (Deg. F)
180 Degrees F
Wheel Dia. (In.)
10 5/8 in
Outlet Height (In.)
11 3/4 in
Max. Ambient Temp. (F)
104 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
2C890
Zoro #
G1484061
UPC #
-
Country of Origin
Canada

Dimensions

Wheel Dia. (In.)
10 5/8 in
Outlet Height (In.)
11 3/4 in
Height (In.)
21 in
Inlet Dia. (In.)
10 in
Outlet Width (In.)
8 in
Width (In.)
19 in
Wheel Width (In.)
5 1/4 in
Depth (In.)
18 in
Overall Height
21 in
Overall Width
19 in
Wheel Diameter
10 5/8 in
Inlet Diameter
10 in
Manufacturer Warranty Length
1 yr Limited
Wheel Width
5 1/4 in
Outlet Width
8 in
Wheel Bore Diameter
5/8 in
Outlet Height
11 3/4 in
Overall Depth
18 in

Details

Item
Blower
Type
Less Motor
Max. Inlet Temp. (Deg. F)
180 Degrees F
Max. Ambient Temp. (F)
104 Degrees F
Rotation
CW
Housing Material
Steel
Wheel Material
Steel
Housing Finish
Gray Polyester Epoxy
Wheel Bore (In.)
5/8 in
Includes
Dynamically Balanced Wheel, Housing, Motor Base
Drive Type
Direct Drive
Features
High Volume Ventilation When Duct Systems are Required
Application
Cooling, Drying, Exhausting Foul Air, Forced Air Furnaces
Standards
NEC, OSHA
Number of Inlets
1
Maximum Inlet Air Temperature
180 Degrees F
Maximum Motor Horsepower
3/4 hp
Maximum Static Pressure
1 1/4 in wc
Flange Type
Non-Flanged
Assembly
Unassembled
For Ventilation Type
Exhaust
Discharge Position
Bottom Angular Down, Bottom Angular Up, Bottom Horizontal, Down Blast, Top Angular Down, Top Angular Up, Top Horizontal, Up Blast
Wheel Type
Forward-Curved
Housing Material Gauge
16 ga
Housing Color
Gray
Number of Discharge Positions
8
Mount Type
Motor Mount
Maximum Motor Speed
1,725 RPM
Maximum Airflow
1,510 cfm
Minimum Airflow
1,000 cfm
Maximum Ambient Temperature
104 Degrees F
Housing Material Finish
Gray Polyester Epoxy
Includes Motor
No
Outlet Shape
Rectangular

Description

Blower, Wheel Type Forward-Curved, Drive Type Direct Drive, Assembly Unassembled, Wheel Diameter 10 5/8 in, Minimum Airflow 1,000 cfm, Maximum Airflow 1,510 cfm, Maximum Static Pressure 1 1/4 in wc, Maximum Inlet Air Temperature 180 Degrees F, Wheel Material Steel, Housing Material Steel, Wheel Width 5 1/4 in, Number of Inlets 1, Inlet Diameter 10 in, Outlet Shape Rectangular, Outlet Height 11 3/4 in, Outlet Width 8 in, Outlet Diameter Not Applicable, Flange Type Non-Flanged
