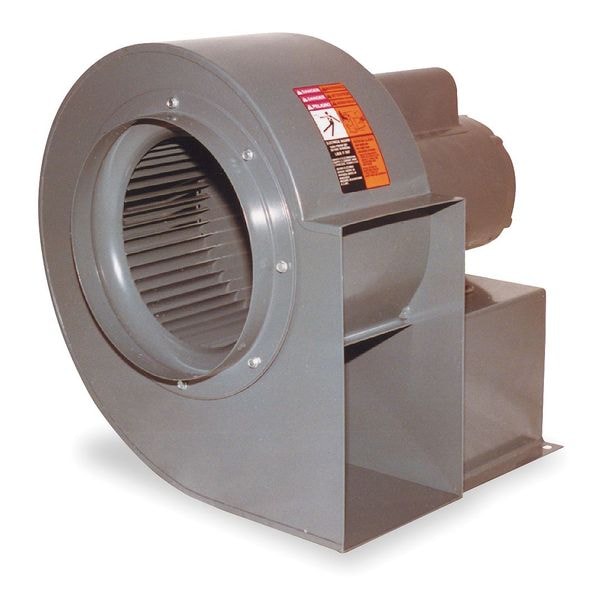

Dayton Blower, 7 1/2 In 7C038 - main

Blower, 7 1/2 In

  • Mfr # 7C038

  • Zoro # G3344591

product price: $652.99
/ea
Free Shipping & Returns

Key Features

Type
With Motor
Motor HP
1/3 hp
Wheel Width (In.)
3 7/8 in
Housing Finish
Gray Polyester Epoxy
Outlet Height (In.)
8 1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
7C038
Zoro #
G3344591
UPC #
-
Country of Origin
Multiple

Dimensions

Wheel Width (In.)
3 7/8 in
Outlet Height (In.)
8 1/4 in
Inlet Dia. (In.)
8 in
Outlet Width (In.)
5 3/8 in
Depth (In.)
14 in
Wheel Dia. (In.)
7 3/4 in
Width (In.)
15 in
Height (In.)
16 in
Overall Width
15 in
Outlet Width
5 3/8 in
Housing Width
11 in
Wheel Width
3 7/8 in
Overall Depth
14 in
Wheel Diameter
7 3/4 in
Wheel Bore Diameter
1/2 in
Housing Depth
14 in
Manufacturer Warranty Length
1 yr Limited
Outlet Height
8 1/4 in
Overall Height
16 in
Inlet Diameter
8 in
Housing Height
16 in

Details

Item
Blower
Type
With Motor
Motor HP
1/3 hp
Housing Finish
Gray Polyester Epoxy
Housing Material
Steel
Full Load Amps
5.8
Max. Ambient Temp. (F)
104 Degrees F
Hz
60 Hz
Max. Inlet Temp. (Deg. F)
180 Degrees F
Motor Enclosure
Open Dripproof
Motor Type
Split Phase
CFM @ 0.750-In. SP
655 cfm
Assembled/Unassembled
Unassembled
CFM @ 0.125-In. SP
920 cfm
Voltage
115
CFM @ 0.500-In. SP
765 cfm
Wheel Material
Steel
Wheel Bore (In.)
1/2 in
Motor RPM
1,725 RPM
CFM @ 1.250-In. SP
360 cfm
Rotation
CW
CFM @ 0.000-In. SP
985 cfm
Bearing Type
Sleeve
dBA @ 5 Feet
57 dBA
Blower RPM
1,725 RPM
Phase
1
CFM @ 0.250-In. SP
870 cfm
Drive Type
Direct Drive
Motor Insulation Class
B
Airflow @ 0.125 in SP
920 cfm
Number of Speeds
1
Motor Frame Designation
48
Standards
CSA Certified, UL Listed
Flange Type
Non-Flanged
Maximum Inlet Air Temperature
180 Degrees F
Motor Speed
1,725 RPM
Maximum Ambient Temperature
104 Degrees F
Number of Inlets
1
Current
5.8 A
Nameplate Voltage
115V AC
Airflow @ 1.250 in SP
360 cfm
Airflow @ 0.750 in SP
655 cfm
Maximum Fan Speed
1,725 RPM
Airflow @ 1.000 in SP
510 cfm
Housing Material Gauge
16 ga
Features
Provide High-Volume Ventilation When Duct Systems are Required
Frequency
60 Hz
Airflow @ 0.500 in SP
765 cfm
Airflow @ 0.000 in SP
985 cfm
Maximum Static Pressure
1 1/4 in wc
Airflow @ 0.375 in SP
820 cfm
Motor Horsepower
1/3 hp
Housing Color
Gray
Wheel Type
Forward-Curved
Motor Duty Class
Continuous
Includes Drive Package
Yes
Sound Level
57 dBA @ 5 ft
Housing Material Finish
Gray Polyester Epoxy
Number of Discharge Positions
8
Outlet Shape
Rectangular
Assembly
Unassembled
Airflow @ 0.250 in SP
870 cfm
Includes Motor
Yes
OEM Replacement
No

Description

Blower, Wheel Type Forward-Curved, Drive Type Direct Drive, Includes Drive Package Yes, Assembly Unassembled, Wheel Diameter 7 3/4 in, Airflow @ 0.000 in SP 985 cfm, Airflow @ 0.125 in SP 920 cfm, Airflow @ 0.250 in SP 870 cfm, Airflow @ 0.375 in SP 820 cfm, Airflow @ 0.500 in SP 765 cfm, Airflow @ 0.750 in SP 655 cfm, Airflow @ 1.000 in SP 510 cfm, Airflow @ 1.250 in SP 360 cfm, Airflow @ 1.500 in SP Not Applicable, Airflow @ 2.000 in SP Not Applicable, Airflow @ 2.500 in SP Not Applicable
