Shop DAYTON

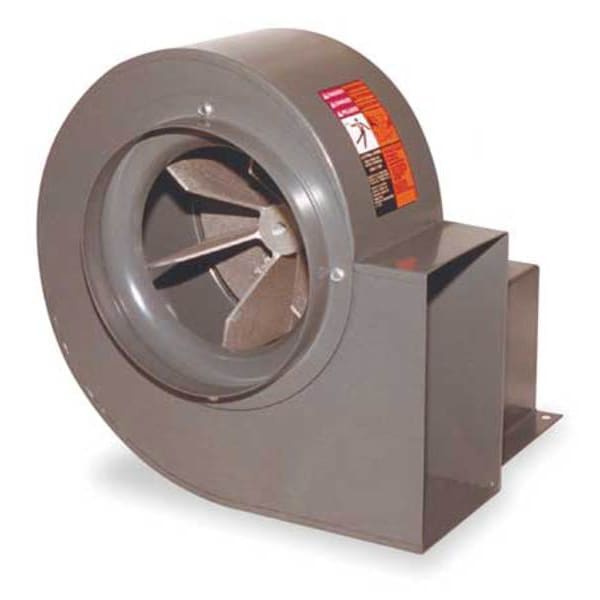

Blower, 7 3/4 In

  • Mfr # 2C862

  • Zoro # G3201782

product price:
$
271.99
/ea
Free Shipping & Returns

Key Features

Type
Less Motor
Wheel Dia. (In.)
7 3/4 in
Motor HP
Not Available
Inlet Dia. (In.)
8 in
Width (In.)
15 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2C862
Zoro #
G3201782
UPC #
-
Country of Origin
Canada

Dimensions

Wheel Dia. (In.)
7 3/4 in
Inlet Dia. (In.)
8 in
Width (In.)
15 in
Wheel Width (In.)
4 1/16 in
Discharge Height (In.)
8 1/4 in
Depth (In.)
14 in
Discharge Width (In.)
5 3/8 in
Height (In.)
15 in
Overall Width
15 in
Overall Height
15 in
Inlet Diameter
8 in
Wheel Bore Diameter
1/2 in
Wheel Diameter
7 3/4 in
Outlet Width
5 3/8 in
Outlet Height
8 1/4 in
Wheel Width
4 in
Overall Depth
14 in
Manufacturer Warranty Length
1 yr Limited

Details

Item
Blower
Type
Less Motor
Motor HP
Not Available
Rotation
CW/CCW
Blower RPM
1,725 RPM
Wheel Bore (In.)
1/2 in
Max. Inlet Temp. (Deg. F)
180 Degrees F
Housing Material
Steel
Agency Compliance
AMCA AIR
Wheel Material
Aluminum
Housing Finish
Gray Polyester Epoxy
Bearing Type
Sleeve
Max. Ambient Temp. (F)
104 Degrees F
Application
Ducted Exhaust Systems where Air May Contain Dirt, Lint, or Other Foreign Materials
Standards
AMCA Air Performance Certified, NEC, OSHA
Features
Features 6 Mounting Points
Maximum Airflow
533 cfm
Maximum Fan Speed
1,725 RPM
Maximum Ambient Temperature
104 Degrees F
Outlet Shape
Rectangular
Maximum Motor Horsepower
3/16 hp
Wheel Type
Radial
For Ventilation Type
Exhaust
Hazardous Location Application
No
Number of Discharge Positions
14
For Air Type
Dirty and Dusty
Maximum Inlet Air Temperature
180 Degrees F
Hazardous Location Specification
Not for Use in Hazardous Locations
Mount Type
Motor Mount
Housing Material Gauge
16 ga
Housing Color
Gray
Housing Material Finish
Gray Baked Polyester Epoxy
Minimum Airflow
93 cfm
Maximum Static Pressure
3/4 in wc
Assembly
Unassembled
Discharge Position
Bottom Angular Up, Bottom Horizontal, Down Blast, Top Angular Down, Top Angular Up, Top Horizontal, Up Blast
Drive Type
Direct Drive
Maximum Motor Speed
1,725 RPM
Includes Motor
No
Number of Inlets
1
Frequency
60 Hz
Electrical Connection
Ground Wire

Description

Blower, Wheel Type Radial, Drive Type Direct Drive, Assembly Unassembled, Wheel Diameter 7 3/4 in, Minimum Airflow 93 cfm, Maximum Airflow 533 cfm, Maximum Static Pressure 3/4 in wc, Maximum Inlet Air Temperature 180 Degrees F, Bearing Type Sleeve, Wheel Material Aluminum, Housing Material Steel, Wheel Width 4 in, Number of Inlets 1, Inlet Diameter 8 in, Outlet Shape Rectangular, Outlet Height 8 1/4 in, Outlet Width 5 3/8 in, Outlet Diameter Not Applicable, Frequency 60 Hz
